Rear Toe Adjustment

Special Tool(s) / General Equipment

Adjustment

• 1.

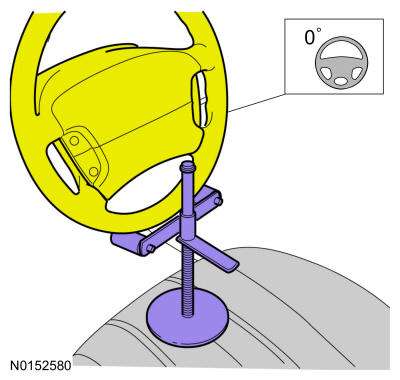

  Using a holding device, hold the steering wheel in the straight-ahead position.

Courtesy of FORD MOTOR COMPANY

• 2.

  Using alignment equipment and the manufacturer's instructions, check the rear toe setting on both sides. Use the General Equipment: Wheel Alignment System

• 3.



  • 1.


    NOTE: Make sure that the toe settings are not disturbed while tightening the nuts.

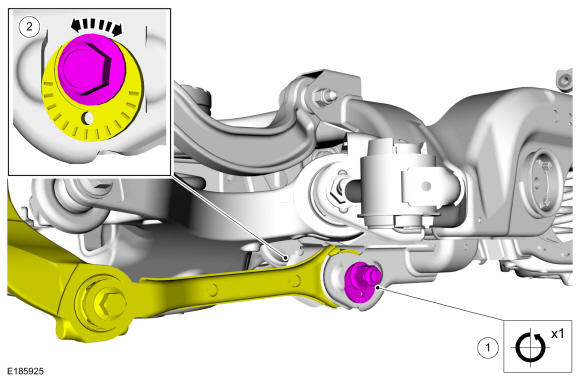

    Loosen the toe link nut approximately one full turn.

    Torque: 129 lb.ft (175 Nm)

  • 2.

    Rotate the toe link bolt to achieve the specified toe setting.

Courtesy of FORD MOTOR COMPANY

• 4.

  Recheck the rear toe settings and adjust as necessary.
