Connector Repair Procedures

GFDW57327Courtesy of FORD MOTOR COMPANY

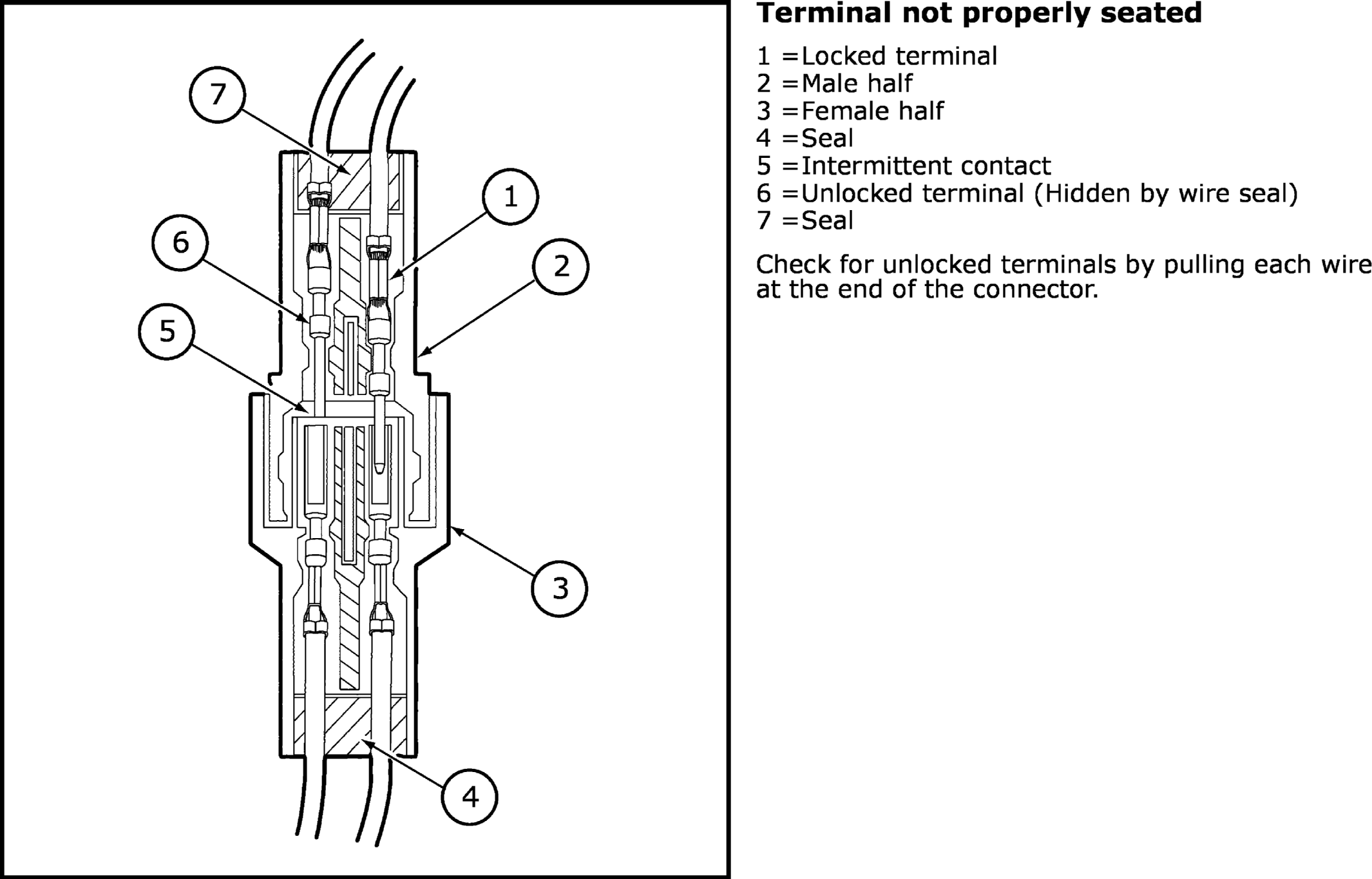

GFDW57328Courtesy of FORD MOTOR COMPANY

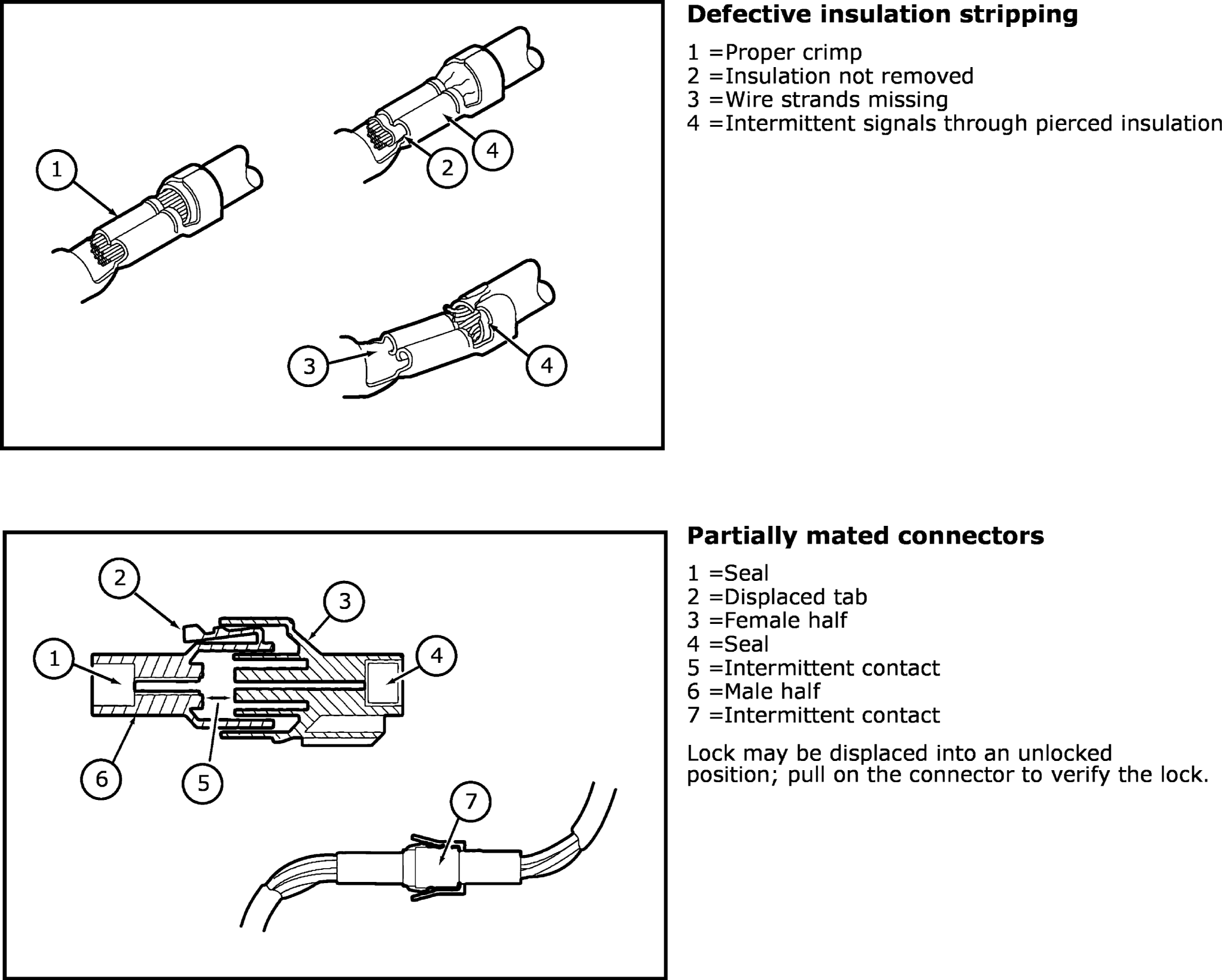

GFDW57329Courtesy of FORD MOTOR COMPANY

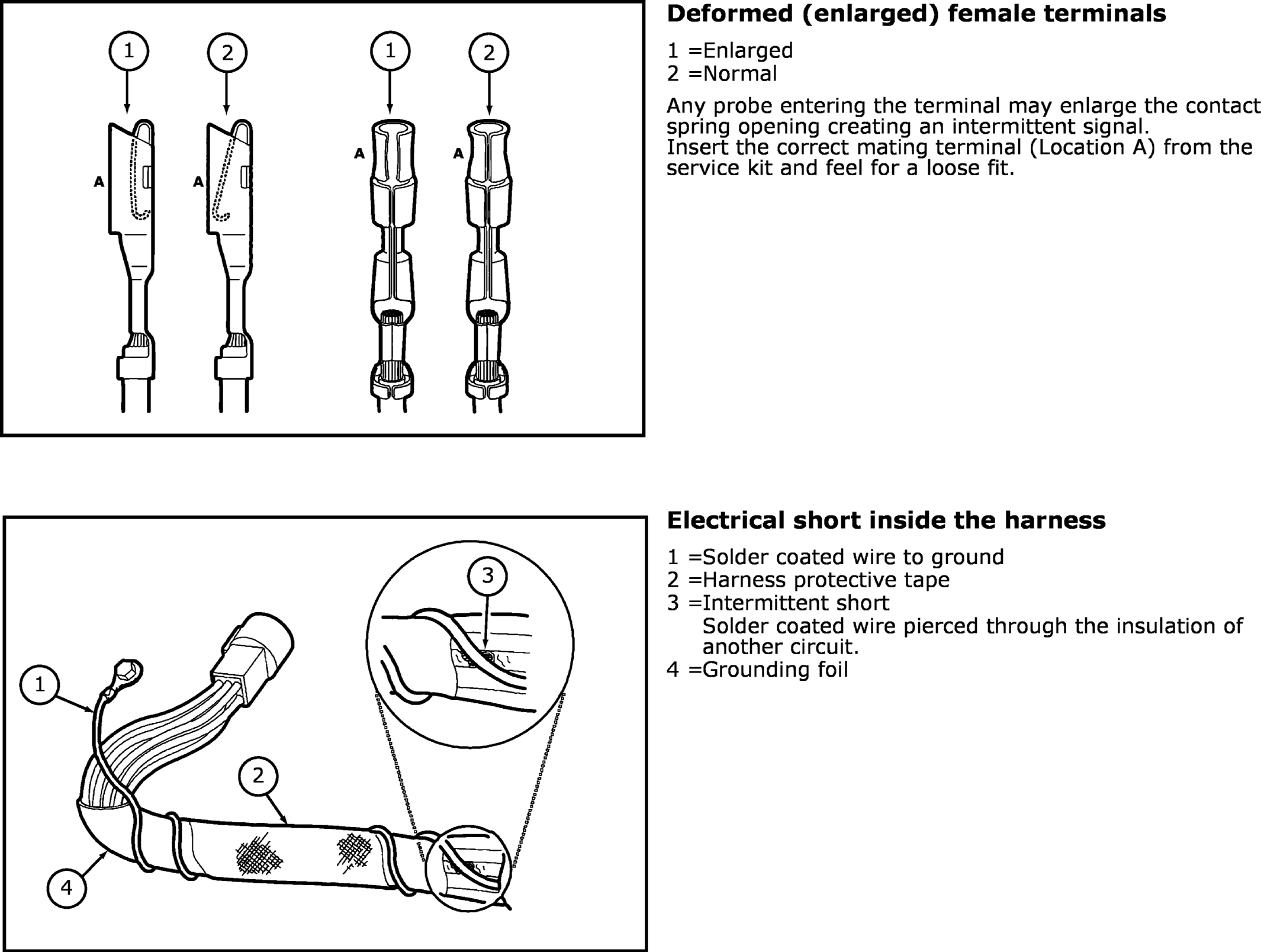

GFDW57330Courtesy of FORD MOTOR COMPANY

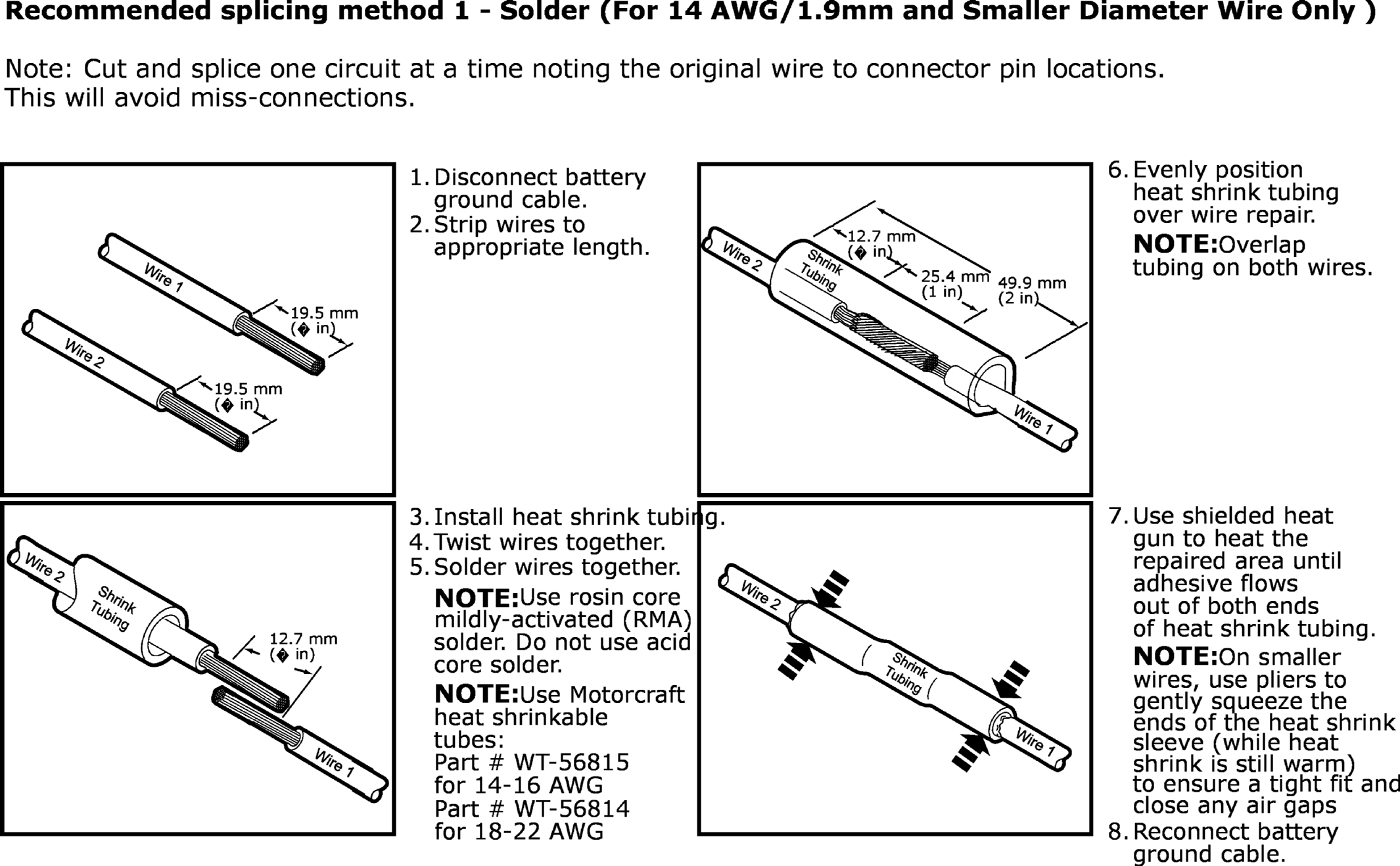

GFDW57331Courtesy of FORD MOTOR COMPANY

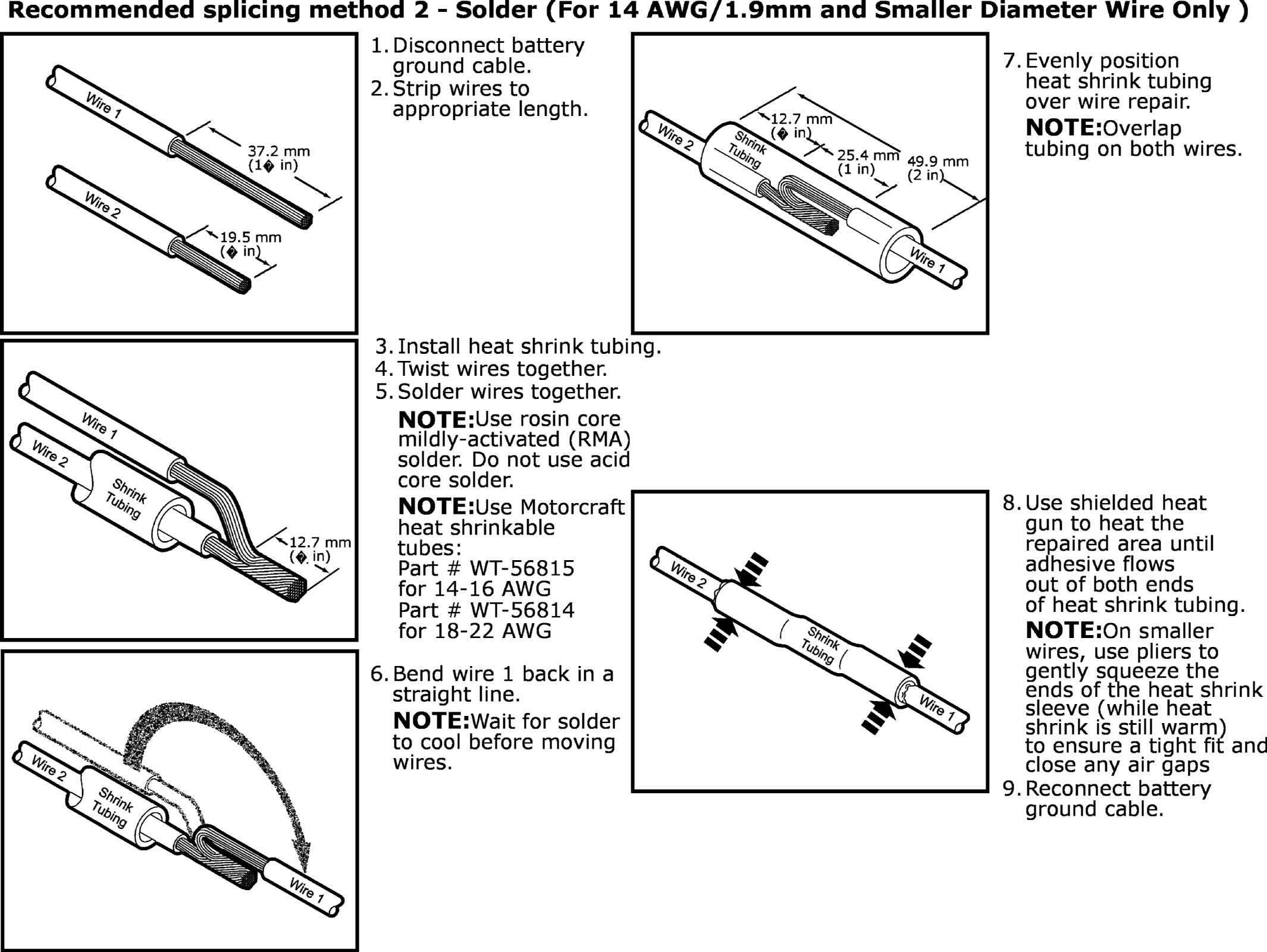

GFDW57332Courtesy of FORD MOTOR COMPANY

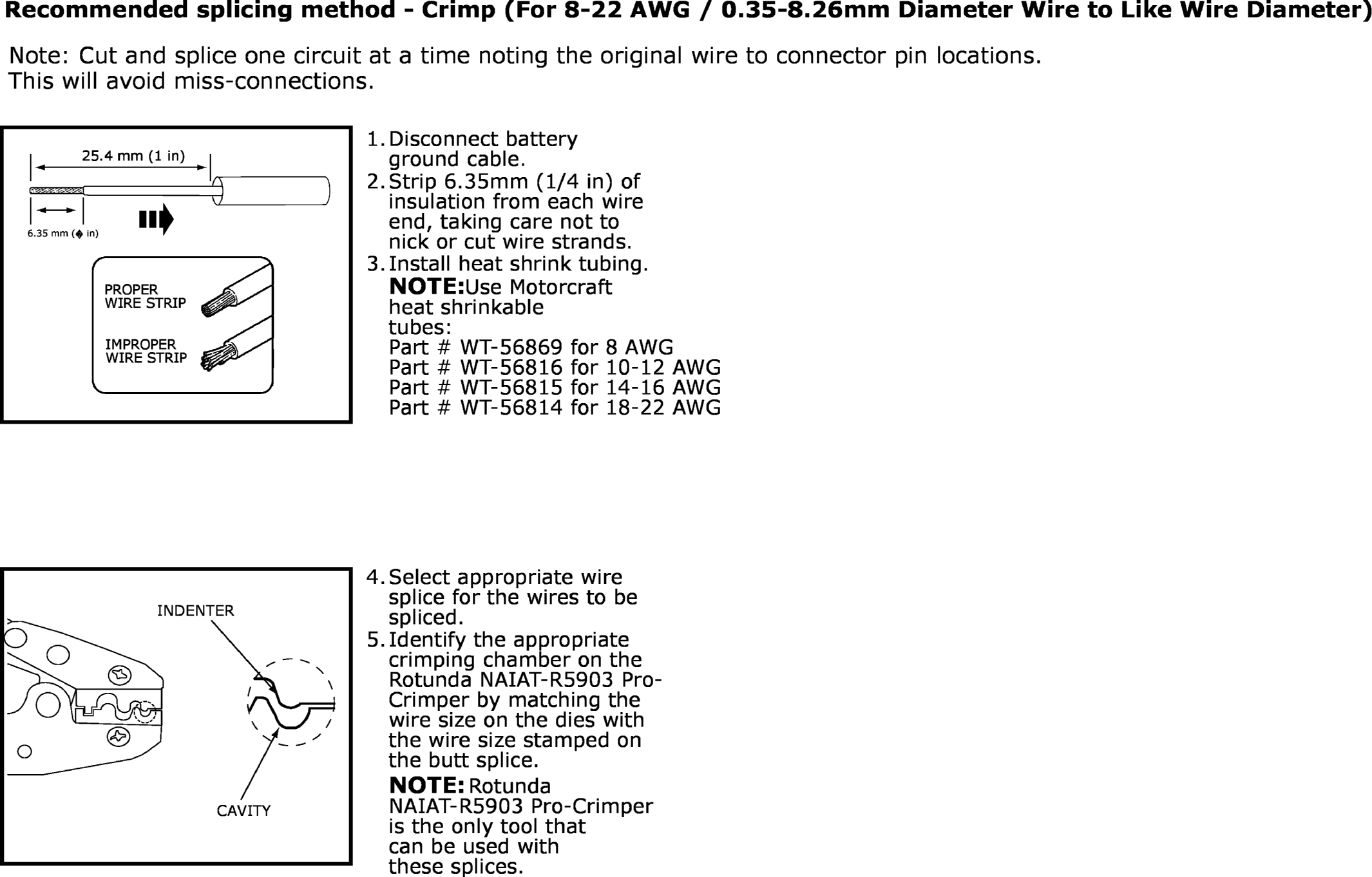

GFDW57333Courtesy of FORD MOTOR COMPANY

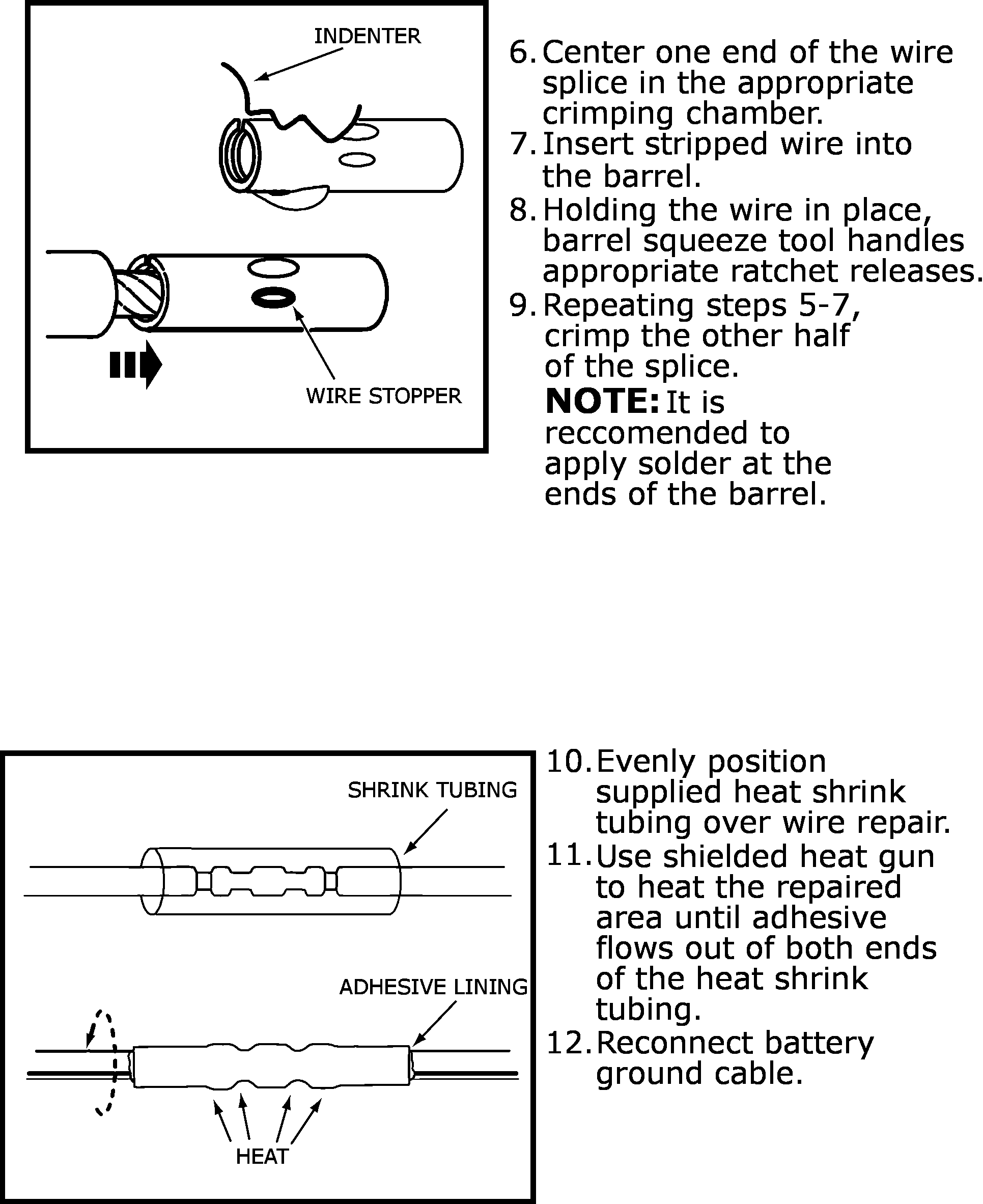

GFDW57334Courtesy of FORD MOTOR COMPANY

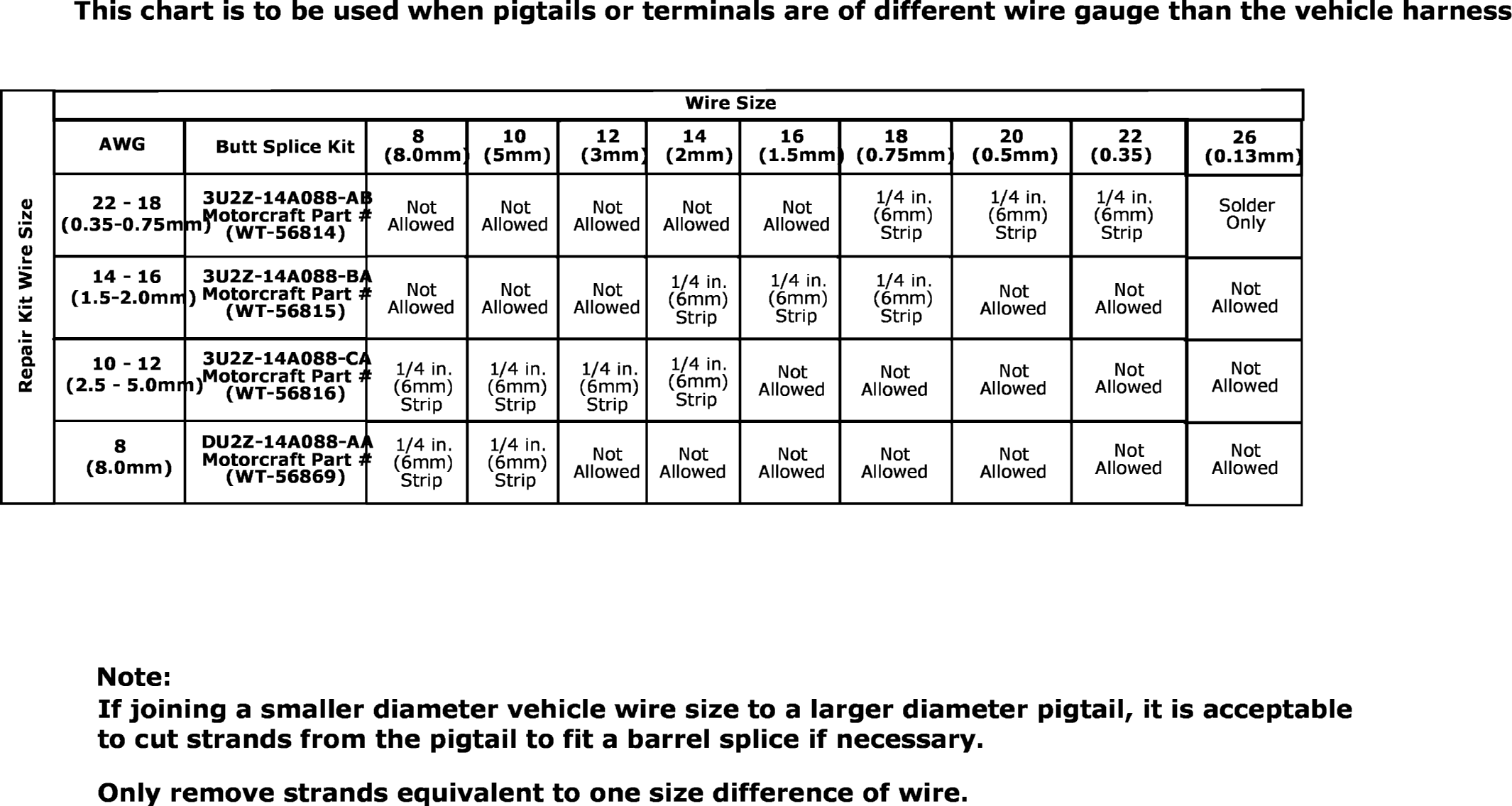

GFDW57335Courtesy of FORD MOTOR COMPANY
