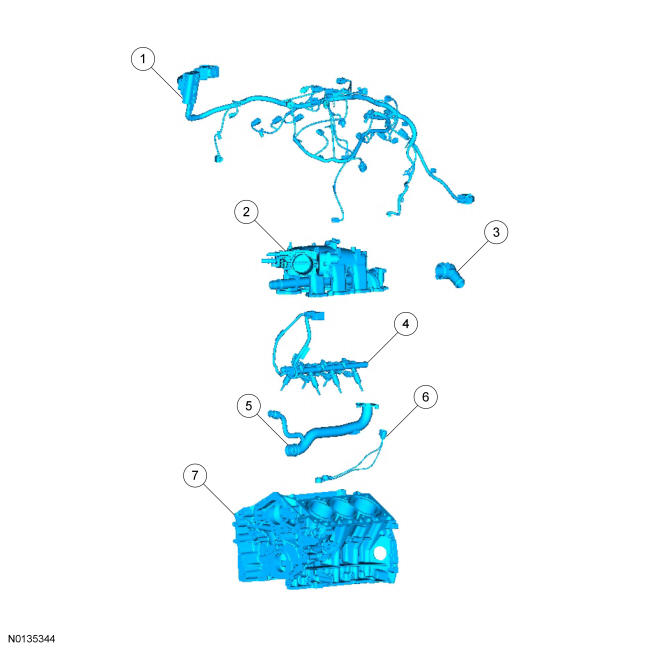

Exploded View Of Engine Upper

GFD82706Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 12C508 Engine control harness
2 9425 Intake manifold
3 8594 Thermostat housing
4 9D280 Fuel rail
5 9N271 Coolant tube
6 12A699 Knock Sensor (KS)
7 6010 Cylinder block
