Steering Wheel Rotation Sensor: Removal

  1. 1.

    NOTE: The steering wheel rotation sensor may be attached to the clockspring when the clockspring is removed.

    Remove the clockspring. For additional information, refer to Supplemental Restraint System .

  1. 2.

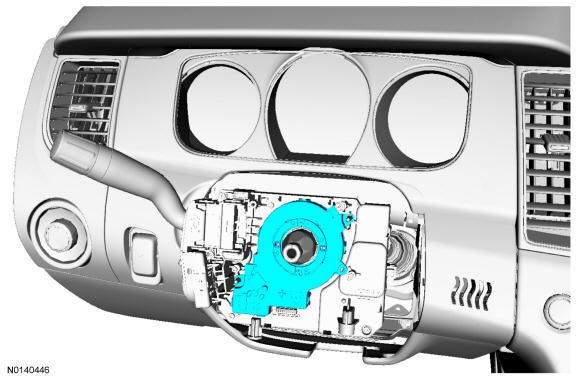

    Remove the steering wheel rotation sensor.
GFD81793Courtesy of FORD MOTOR COMPANY
