Instrument Panel: Installation

All vehicles

• 1.


  NOTE: To avoid damage to the instrument panel, an assistant is required when positioning the instrument panel to the vehicle.
  NOTE: Make sure not to damage the RH front door trim panel or the instrument panel when installing the instrument panel into the vehicle.
  NOTE: Make sure that all electrical connectors and wiring are correctly routed when installing the instrument panel or damage to the components may occur.

  Install the instrument panel into the vehicle through the RH front door opening.

• 2.

  Install, but do not tighten the 6 instrument panel side bolts.

• 3.

  Install, but do not tighten the 4 instrument panel center support bolts.

• 4.

  Install, but do not tighten the 3 instrument panel upper cowl bolts.

• 5.

  Tighten the 6 instrument panel side bolts.
  • Tighten to 40 Nm (30 lb-ft).

• 6.

  Tighten the 4 instrument panel center support bracket bolts.
  • Tighten to 25 Nm (18 lb-ft).

• 7.

  Tighten the 3 instrument panel upper cowl bolts.
  • Tighten to 25 Nm (18 lb-ft).

• 8.

  Connect the small RCM electrical connector and attach the 2 wire harness pin-type retainers.

Courtesy of FORD MOTOR COMPANY

• 9.

  Install the ground wires and the 2 bolts to the floor pan tunnel.
  • Tighten to 10 Nm (89 lb-in).

Courtesy of FORD MOTOR COMPANY

• 10.

  Connect the antenna cable and the satellite radio connector, if equipped.

Courtesy of FORD MOTOR COMPANY

• 11.

  Connect the instrument panel RH bulkhead electrical connector.

Courtesy of FORD MOTOR COMPANY

• 12.

  Install the rear footwell duct and the 2 pin-type retainers.

Courtesy of FORD MOTOR COMPANY

• 13.

  Install the LH and RH front carpet sections.
  • Install the 2 pin-type retainers.

• 14.

  Install the driver footrest pad.
  • Install the 2 pin-type retainers.

Courtesy of FORD MOTOR COMPANY

• 15.

  Install the hood release handle.
  • Install and tighten the hood release handle bolt.

• 16.

  Connect the 2 SJB electrical connectors and instrument panel lower LH bulkhead electrical connector.

Courtesy of FORD MOTOR COMPANY

• 17.

  Connect the instrument panel upper LH bulkhead electrical connector.

Courtesy of FORD MOTOR COMPANY

• 18.

  Install the steering column shaft to the steering column.

• 19.

  Install a new steering column shaft-to-steering column bolt.
  • Tighten to 25 Nm (18 lb-ft).

Courtesy of FORD MOTOR COMPANY

• 20.

  Install the LH and RH instrument panel side finish panels.
  • Make sure to align the instrument panel side finish panels retaining clips to the holes in the instrument panel.

• 21.

  Position the weatherstrips.

• 22.

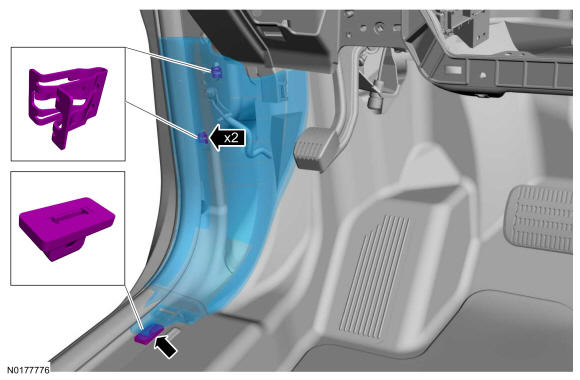

  Install the lower cowl trim panels.
  • Both sides

Courtesy of FORD MOTOR COMPANY

• 23.

  Install the LH and RH scuff plate trim panels.
  • Make sure to align the scuff plate trim panel retaining clips to the retaining clip holes in the body.

• 24.

  Install the LH and RH A-pillar trim panels. For additional information, refer to Interior Trim and Ornamentation .

Police vehicles without floor console

• 25.

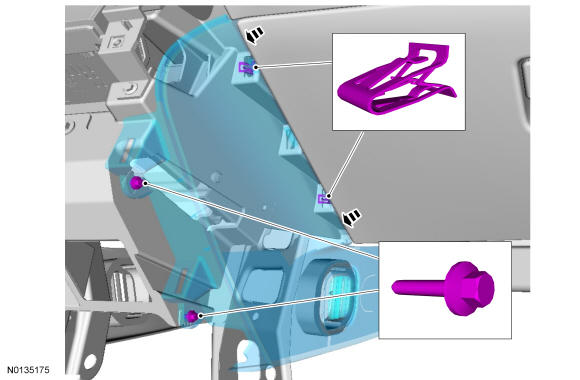

  Install the LH and RH center instrument panel side panels.
  • Tighten to 3 Nm (27 lb-in).

Courtesy of FORD MOTOR COMPANY

• 26.

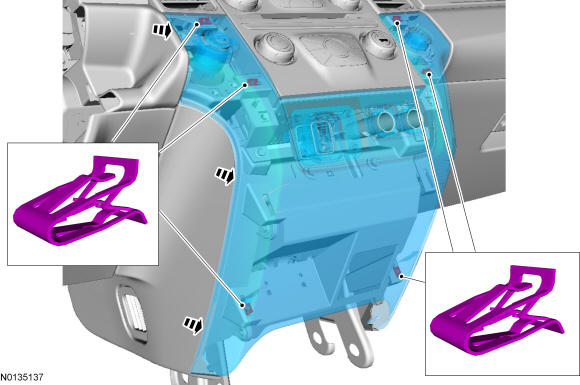

  Install the lower center instrument panel finish panel.

Courtesy of FORD MOTOR COMPANY

• 27.

  Install the steering column opening trim panel.

Column shift vehicles

• 28.

  Connect the selector lever cable to the steering column bracket.

Courtesy of FORD MOTOR COMPANY

• 29.

  Connect the selector lever cable to the selector lever.

Courtesy of FORD MOTOR COMPANY

• 30.

  Install the steering column shroud. For additional information, refer to Steering Column .

All vehicles

• 31.

  Install the floor console. For additional information, refer to Console - Floor .

• 32.

  Install the front seats. For additional information, refer to Seating .

• 33.

  Install the steering wheel. For additional information, refer to Steering Column .

• 34.

  Install the TXV manifold.

  • 1.

    Install new O-ring seals.

  • 2.

    Install and tighten the TXV manifold and nut.
    • Tighten to 8 Nm (71 lb-in).

Courtesy of FORD MOTOR COMPANY

• 35.

  Connect the heater hoses to the heater core.

Courtesy of FORD MOTOR COMPANY

• 36.

  Install the PCM bracket.
  • Install and tighten the 3 PCM bracket nuts.

Courtesy of FORD MOTOR COMPANY

• 37.

  Install the wire harness retainer onto the PCM bracket stud.

Courtesy of FORD MOTOR COMPANY

• 38.

  Install the PCM. For additional information, refer to Electronic Engine Controls .

Vehicles with 3.5L engines

• 39.

  Install the strut tower cross brace.
  • NOTE: LH side shown, RH side similar.

    Install the LH and RH strut upper mount nuts.

    • Tighten to 30 Nm (22 lb-ft).

Courtesy of FORD MOTOR COMPANY

• 40.

  Install the vacuum hose clips onto the strut tower cross brace.

Courtesy of FORD MOTOR COMPANY

Vehicles with 2.0L engines

• 41.

  Install the upper engine cover.

  • 1.

    Make sure to align the 3 engine cover holes to the retaining points.

  • 2.

    Press down on the engine cover to secure.

All vehicles

• 42.

  Install the wiper mounting arm and pivot shaft assembly. For additional information, refer to Wipers and Washers .

• 43.

  Charge the refrigerant system. For additional information, refer to Climate Control System General Information and Diagnostics .

• 44.

  Fill the cooling system. For additional information, refer to Engine Cooling .
