Engine Mount: Notes

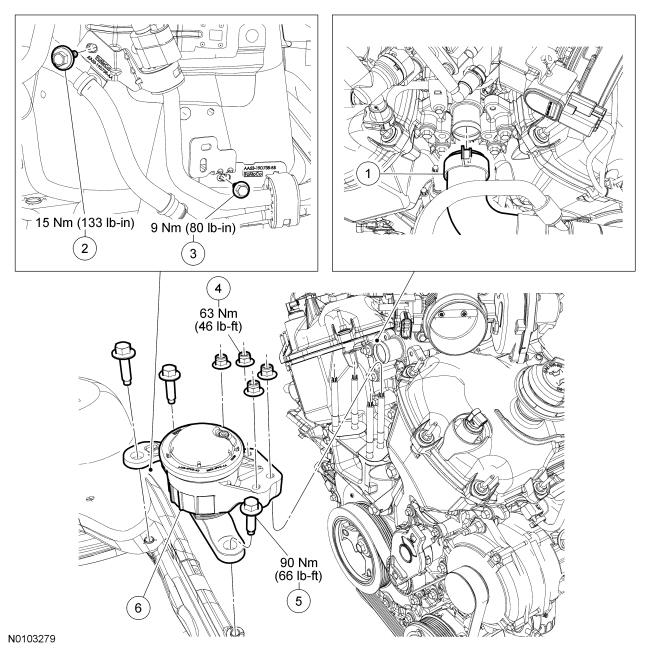

Fig 1: Engine Mount Replacement Components With Torque Specifications

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	8B274	Upper radiator hose
2	W708877	A/C tube bracket bolt
3	W705622	A/C tube retaining clamp bolt
4	W714682	Engine mount-to-engine nut (4 required)
5	W712507	Engine mount-to-frame bolts (3 required)
6	6F012	Engine mount
