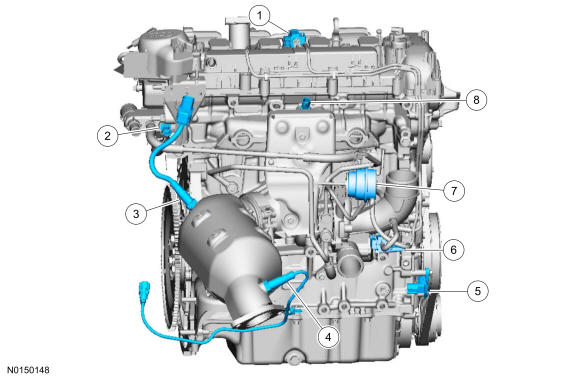

Rear Engine Sensor Locations - 2.0L GTDI

Courtesy of FORD MOTOR COMPANY

Item	Description	Comments
1	Turbocharger bypass valve solenoid	-
2	ECT sensor	-
3	HO2S	-
4	CMS	-
5	CKP sensor	-
6	Turbocharger wastegate regulating valve solenoid	-
7	Wastegate actuator	-
8	CHT sensor	-
