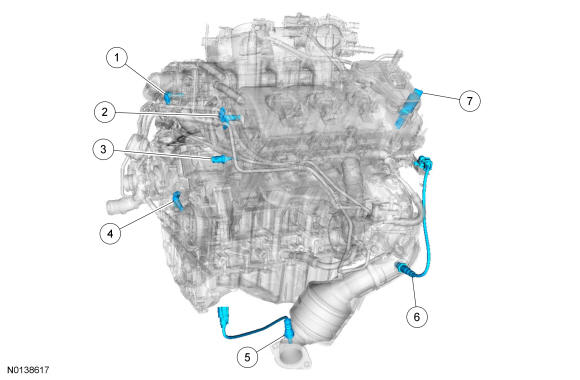

Rear Engine Sensor Locations - 3.5L GTDI
Rear Engine Sensor Locations - 3.5L GTDI
Courtesy of FORD MOTOR COMPANY
Item
Description
Comments
1
LH CMP sensor
-
2
RH CMP sensor
-
3
CHT sensor
-
4
CKP sensor
-
5
RH CMS
-
6
RH HO2S
-
7
RH VCT oil control solenoid
-
Courtesy of FORD MOTOR COMPANY
