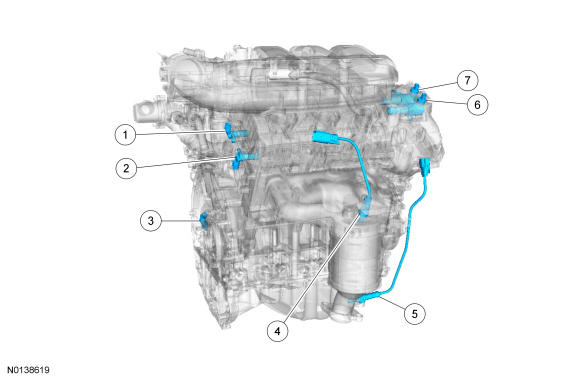

Rear Engine Sensor Locations - 3.5L Ti-VCT
Rear Engine Sensor Locations - 3.5L Ti-VCT
Courtesy of FORD MOTOR COMPANY
Item
Description
Comments
1
RH intake CMP sensor
-
2
RH exhaust CMP sensor
-
3
CKP sensor
-
4
RH HO2S
-
5
RH CMS
-
6
RH exhaust VCT oil control solenoid
-
7
RH intake VCT oil control solenoid
-
