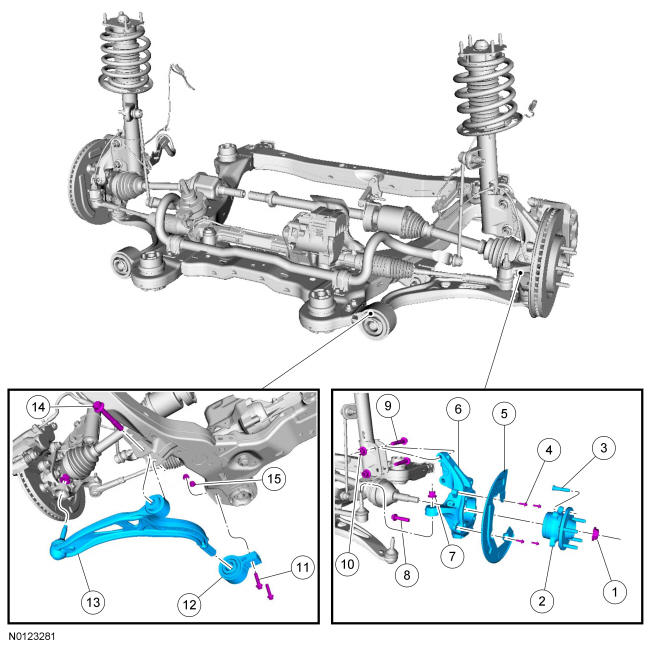

Front Suspension - Exploded View

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	W705967	Wheel hub nut
2	2C300	Wheel bearing and wheel hub
3	1107	Wheel stud (also part of 1104) (5 required)
4	W505255	Splash shield screw (4 required)
5	2K005 LH/ 2K004 RH LH/ 2K004 RH	Splash shield
6	3K171 LH/ 3K170 RH LH/ 3K170 RH	Wheel knuckle
7	W710015	Tie-rod end nut
8	W714516	Wheel bearing and wheel hub bolt (4 required)
9	W715295	Lower strut-to-wheel knuckle bolt (2 required)
10	W520216	Lower strut-to-wheel knuckle nut (2 required)
11	W708848	Lower control arm rearward bolt (2 required)
12	3C403 LH/ 3C339 RH LH/ 3C339 RH	Lower control arm rearward bushing
13	3051 LH/ 3042 RH LH/ 3042 RH	Lower control arm
14	W710174	Lower control arm forward bolt
15	W520515	Lower control arm rearward nut (2 required)
16	W714890	Lower ball joint nut

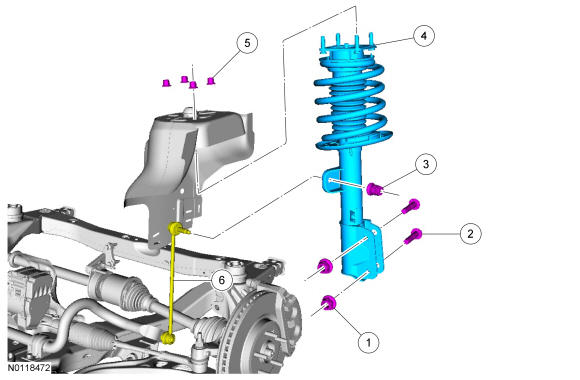

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	W520215	Lower strut-to-wheel knuckle nut (2 required)
2	W710396	Lower strut-to-wheel knuckle bolt (2 required)
3	W713968	Stabilizer bar link upper nut
4	5B421 LH/ 5B420 RH LH/ 5B420 RH	Strut and spring assembly
5	W714682	Upper strut mount nut (4 required)
6	5K484	Stabilizer bar link

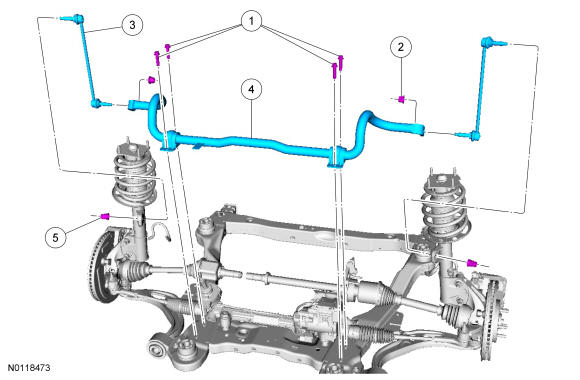

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	W505274	Stabilizer bar bracket bolts (4 required)
2	W520215	Stabilizer bar link lower nut (2 required)
3	5K484	Stabilizer bar link (2 required)
4	5482	Stabilizer bar assembly
5	W713968	Stabilizer bar link upper nut (2 required)

• 1.

  For additional information, refer to the procedures in this article.
