Strut and Spring Assembly: Installation

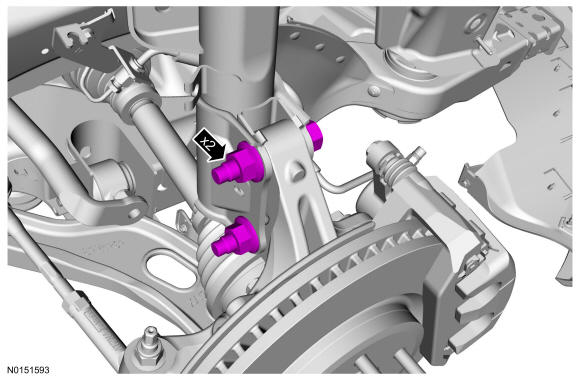

• 1.


  • Tighten to 63 Nm (46 lb-ft).

Courtesy of FORD MOTOR COMPANY

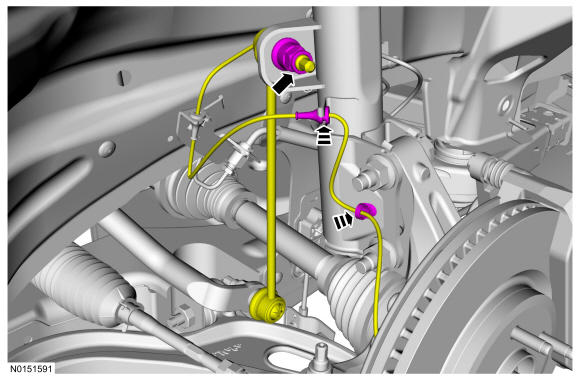

• 2.


  • Tighten to 225 Nm (166 lb-ft).

Courtesy of FORD MOTOR COMPANY

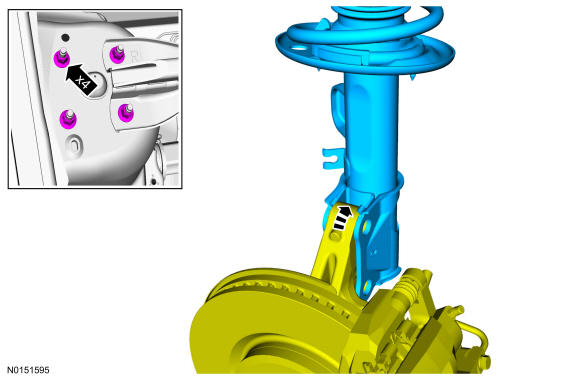

• 3.


  • Tighten to 150 Nm (111 lb-ft).

Courtesy of FORD MOTOR COMPANY

• 4.

  Install the wheel and tire. Refer to Wheels and Tires .

• 5.

  Check front camber adjustment. Refer to Suspension System General Information
