Window Control Switch - With Door Modules
Window Control Switch - With Door Modules

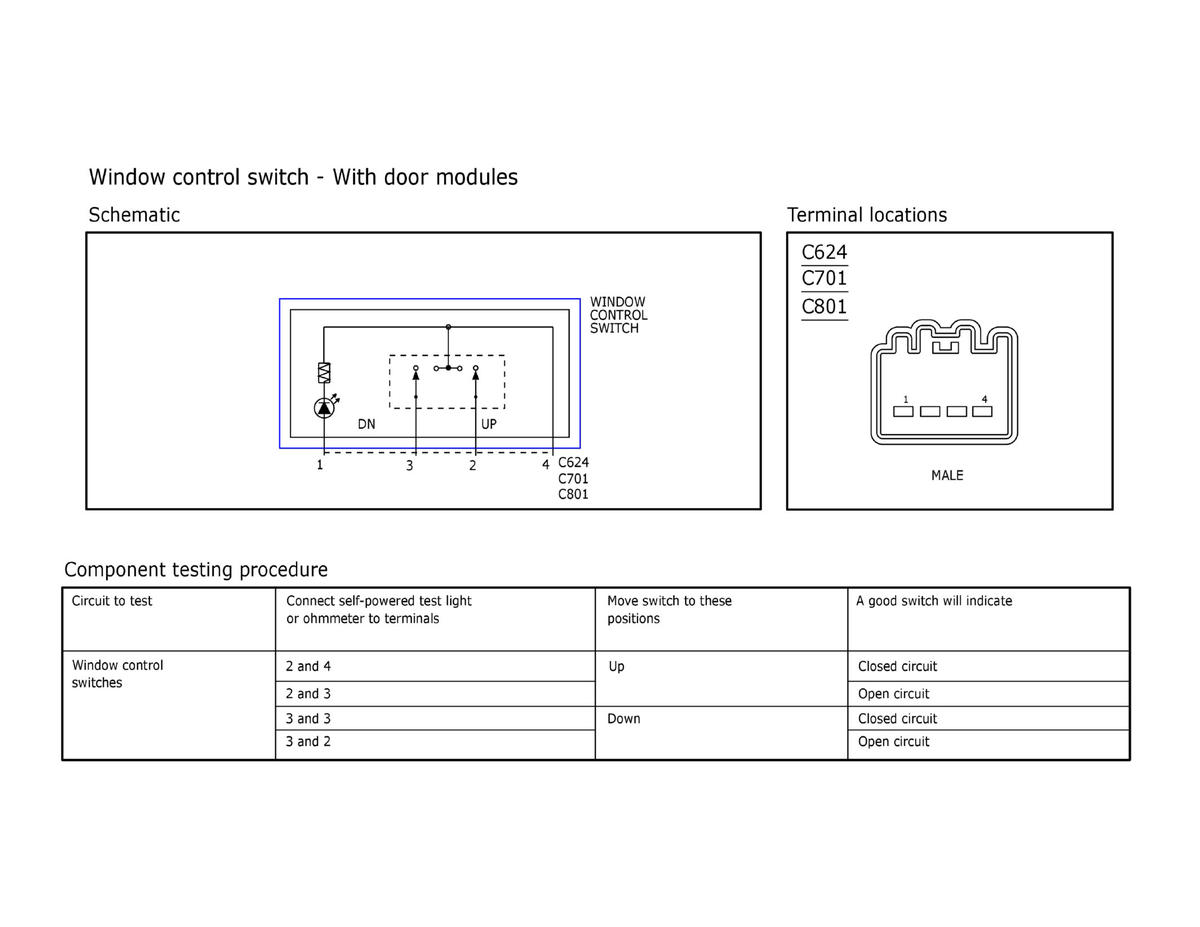

Fig 1: Window Control Switch - With Door Modules
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
