Lighting Control Module (LCM): Removal

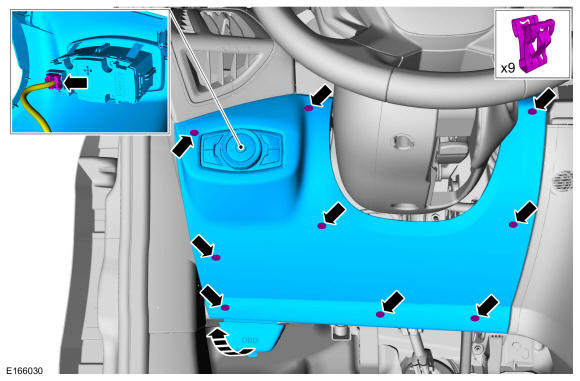

1. Release the clips and remove the lower steering column shroud.
   • Disconnect the electrical connector.

   Courtesy of FORD MOTOR COMPANY

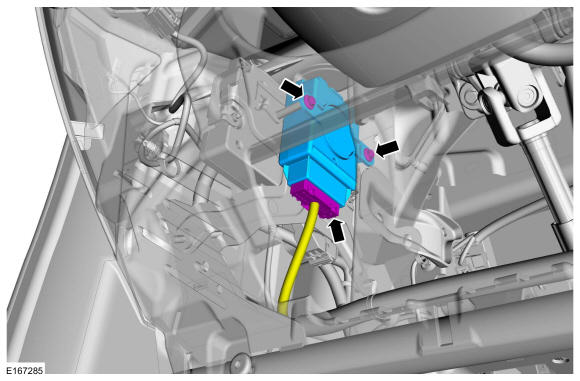

2. Disconnect the electric connector, remove the retainers and the LCM.

Courtesy of FORD MOTOR COMPANY
