Ignition Lock Cylinder: Disassembly

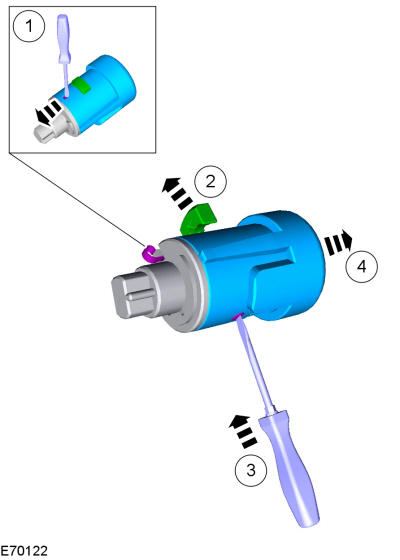

1. Refer to: Ignition Lock Cylinder .

2. Courtesy of FORD MOTOR COMPANY

3. Courtesy of FORD MOTOR COMPANY

4. Courtesy of FORD MOTOR COMPANY

5. Courtesy of FORD MOTOR COMPANY

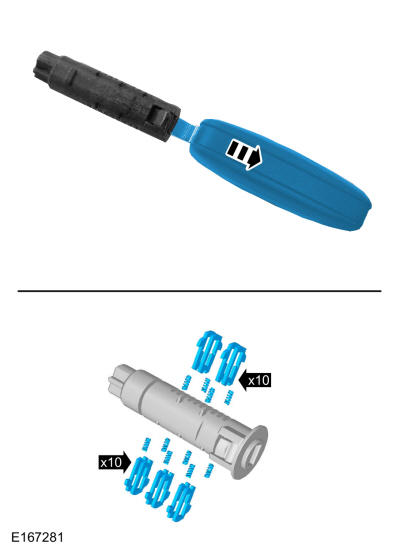

6. NOTE: Note the position of the components before removal.
   1. Make sure to read the key code from the key entry to the end of the lock barrel in sequence.
   2. Make a note of the position and orientation of the ignition lock cylinder barrel tumblers.
   3. One group of tumblers is signed with a one digit number (1 to 5), the other group of tumblers is signed with a two digit number (11 to 15).

Courtesy of FORD MOTOR COMPANY
