Hood Alignment

For information on Ford Color Coded Illustrations refer to OEM Color Coding

Check

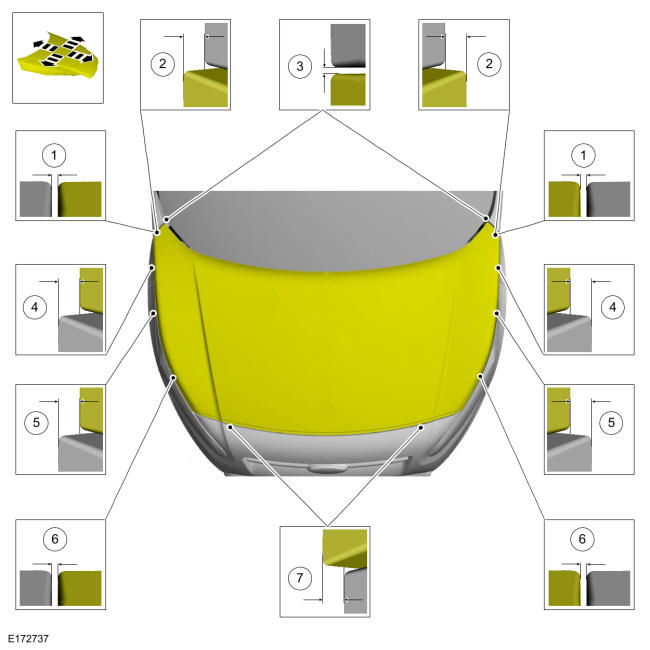

1. Check the hood-to-body dimensions.
   1. Dimension

      : 0.1378 ±0.0591in (3.5 ±1.5mm)

   2. Dimension

      : 0.0236-0.0787/+0.0394in (.6-2/+1mm)

   3. Dimension

      : 0.1969 ±0.0591in (5 ±1.5mm)

   4. Dimension

      : 0.0945 ±0.0591in (2.4 ±1.5mm)

   5. Dimension

      : 0.1496 ±0.0591in (3.8 ±1.5mm)

   6. Dimension

      : 0.1378 ±0.0591in (3.5 ±1.5mm)

   7. Dimension

      : 0.0394 ±0.0787in (1 ±2mm)

Courtesy of FORD MOTOR COMPANY

Adjustment

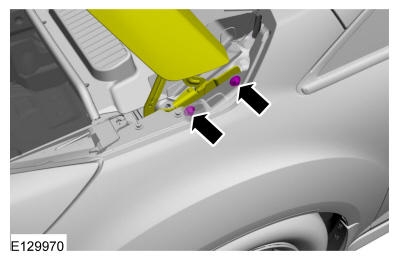

1. Loosen the nuts enough to permit movement of the hood. Loosen: 2 turn(s)

   Courtesy of FORD MOTOR COMPANY

2. Adjust the hood to specification.

   Courtesy of FORD MOTOR COMPANY

3. Tighten the nuts.

   Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

Check

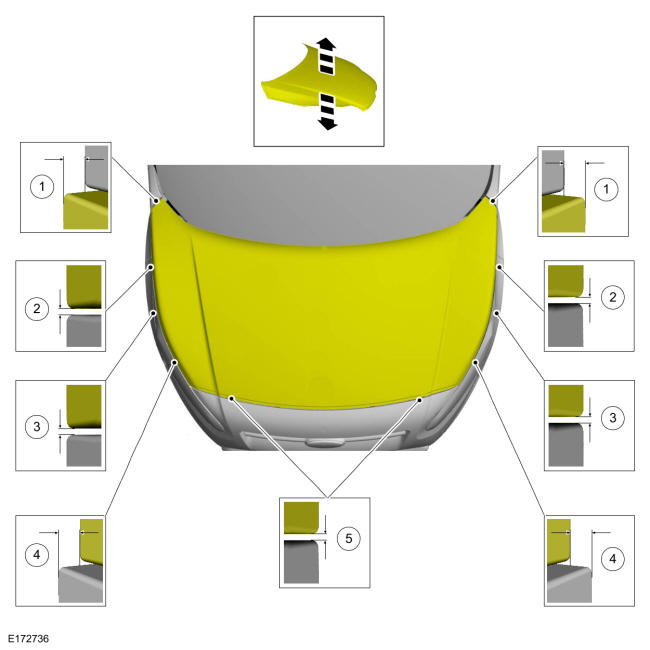

1. Check the body-to-hood dimensions.
   1. Dimension

      : 0.0394-0.0787/+0.0394in (1-2/+1mm)

   2. Dimension

      : 0.1260 ±0.0591in (3.2 ±1.5mm)

   3. Dimension

      : 0.1260 ±0.0591in (3.2 ±1.5mm)

   4. Dimension

      : 0.0512 ±0.0591in (1.3 ±1.5mm)

   5. Dimension

      : 0.2362 ±0.0866in (6 ±2.2mm)

Courtesy of FORD MOTOR COMPANY

Adjustment

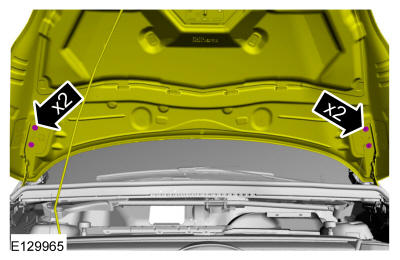

1. On both sides. Loosen the bolts enough to permit movement of the hood. Loosen: 2 turn(s)

   Courtesy of FORD MOTOR COMPANY

2. Adjust the hood to specification.

   Courtesy of FORD MOTOR COMPANY

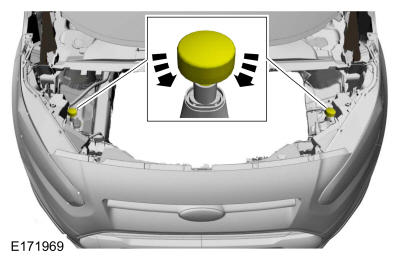

3. Adjust the bump stop rubbers.

   Courtesy of FORD MOTOR COMPANY

4. On both sides. Tighten the bolts.

   Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
