Front Subframe - Install after Access

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	502-002 (T94P-2100-AH) Alignment Pins, Subframe
Transmission Jack

1. NOTE: Make sure that no components catch.

   Partially raise the subframe and position it to the vehicle. Use the General Equipment: Transmission Jack

   Courtesy of FORD MOTOR COMPANY

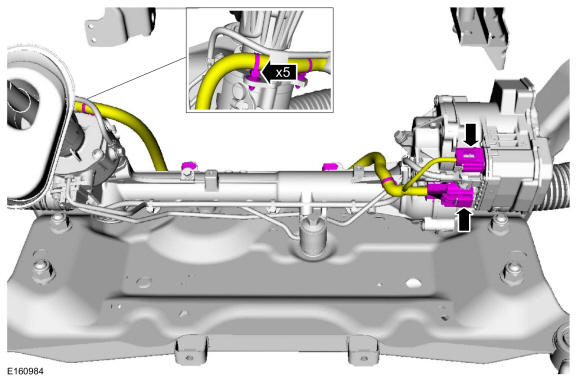

2. Position the EPAS gear harness, clip the 5 harness retainers and connect the 2 electrical connectors.

   Courtesy of FORD MOTOR COMPANY

3. Position the EPAS gear heat shield, install the 3 heat shield retainers and the ground strap.

   Torque: 62 lb.in (7 Nm)

   Courtesy of FORD MOTOR COMPANY

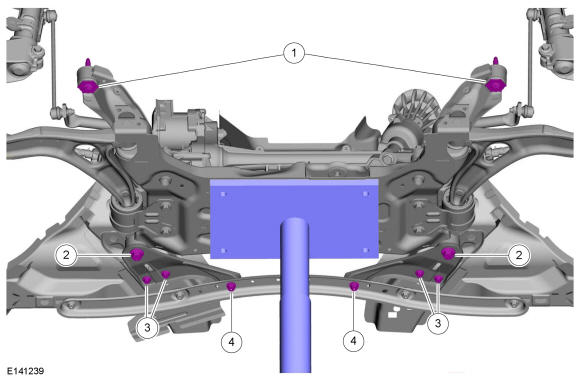

4. NOTE: Only tighten the bolts finger tight at this stage.
   1. Raise the subframe. Use the General Equipment: Transmission Jack
   2. Install the 2 forward subframe bolts.
   3. Install the 2 new rearward subframe bolts.
   4. Install the 4 bracket to front subframe bolts.
   5. Install the 2 bracket bolts.

   Courtesy of FORD MOTOR COMPANY

5. On both sides. Use the special tool to align the subframe to the vehicle. Remove Special Service Tool: 502-002 (T94P-2100-AH) Alignment Pins, Subframe.

   Courtesy of FORD MOTOR COMPANY

6. NOTE: While tightening the subframe bolts, make sure the front subframe does not move.
   1. Tighten the 2 forward subframe bolts.

      Torque: 85 lb.ft (115 Nm)

   2. Tighten the 2 new rearward subframe bolts.

      Torque:

      Stage 1: 103 lb.ft (140 Nm)

      Stage 2: 180 °

   3. Tighten the 4 bracket to front subframe bolts.

      Torque: 46 lb.ft (63 Nm)

   4. Tighten the 2 bracket bolts.

      Torque: 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

7. Remove Special Service Tool: 502-002 (T94P-2100-AH) Alignment Pins, Subframe.
8. Remove the equipment.

   Courtesy of FORD MOTOR COMPANY

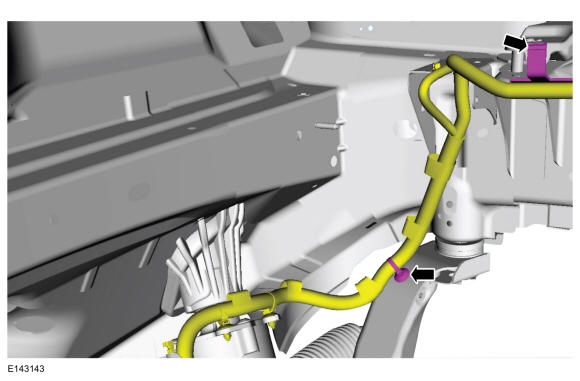

9. Clip the EPAS gear wire harness retainers.

   Courtesy of FORD MOTOR COMPANY

10. Install the roll restrictor bolt.

    Torque: 92 lb.ft (125 Nm)

    Courtesy of FORD MOTOR COMPANY

11. Install the exhaust support bracket bolts.

    Torque: 18 lb.ft (24 Nm)

    Courtesy of FORD MOTOR COMPANY

12. Remove the equipment.

    Courtesy of FORD MOTOR COMPANY

13. On both sides. Connect the lower ball joint to the wheel knuckle and install the new ball joint pinch bolt and nut.

    Torque: 61 lb.ft (83 Nm)

    Courtesy of FORD MOTOR COMPANY

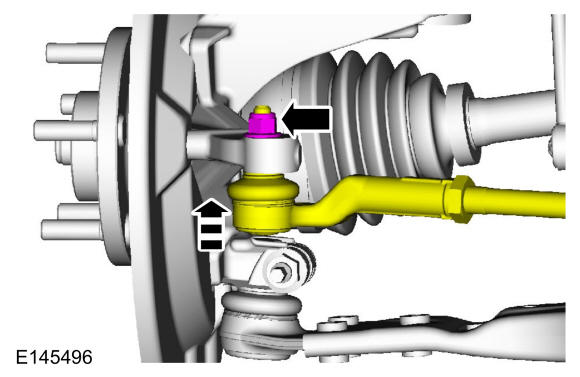

14. NOTE: Make sure that the ball joint ball does not rotate.

    On both sides. Connect the tie rod end to the wheel knuckle and install the new tie rod end nut.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

15. NOTE: The stabilizer bar links are designed with low friction ball joints that have a low breakaway torque.
    NOTE: Use the hex-holding feature to prevent the ball stud from turning while removing or installing the stabilizer bar link nut.

    On both sides. Position the stabilizer bar links and install the new stabilizer bar link lower nut.

    Torque: 46 lb.ft (63 Nm)

    Courtesy of FORD MOTOR COMPANY

16. On both sides. Install the load path bar retainers.

    Torque: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

17. If equipped, position the underbody shield and install the retainers.

    Courtesy of FORD MOTOR COMPANY

18. Position the steering shaft coupler and install the new steering shaft coupler bolt.

    Torque: 21 lb.ft (28 Nm)

    Courtesy of FORD MOTOR COMPANY

19. Install the wheels and tires. Refer to: Wheel and Tire .
20. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
21. Check and if necessary adjust front toe. Refer to: Front Toe Adjustment .
