Front Seat Lumbar Assembly: Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the front seat backrest cover. Refer to: Front Seat Backrest Cover .

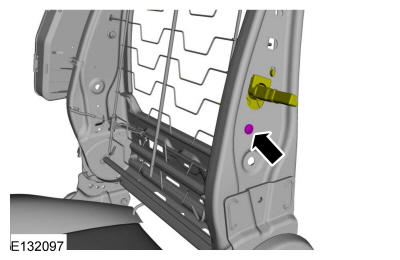

2. Remove the screw and position the lumbar actuator aside.

   Torque: 9 lb.in (1 Nm)

   Courtesy of FORD MOTOR COMPANY

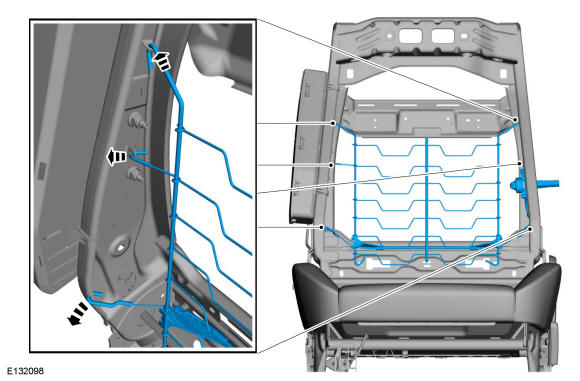

3. Detach the lumbar assembly J-hooks and remove the lumbar assembly.

Courtesy of FORD MOTOR COMPANY
