Third Row Seat Backrest Cover: Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the seat head restraint guide sleeve. Refer to: Third Row Seat Head Restraint Guide Sleeve .
On both sides.
1. Remove the side shield.
2. Remove the recline cover.
Courtesy of FORD MOTOR COMPANY
On both sides. Remove the bolts and the seat backrest cover.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

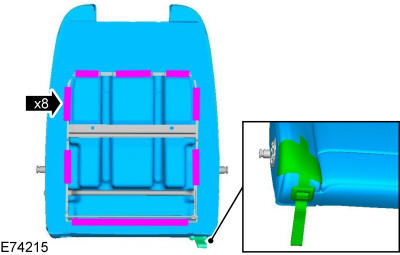

Position the backrest latch strap the backrest cover. Detach the J-clips and remove the seat backrest cover and foam as an assembly.

Courtesy of FORD MOTOR COMPANY

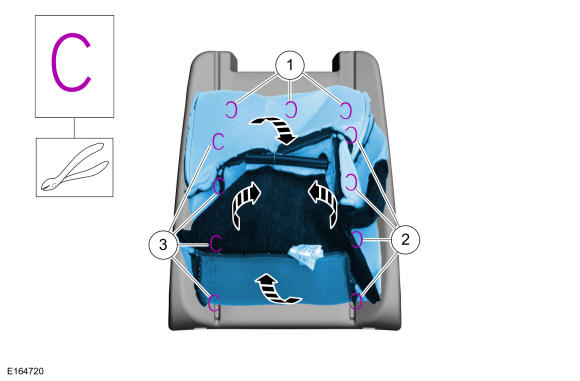

Invert the seat backrest cover. Remove the hog rings and remove the backrest cover from the foam pad.

Courtesy of FORD MOTOR COMPANY
