Fuse And Relay Location

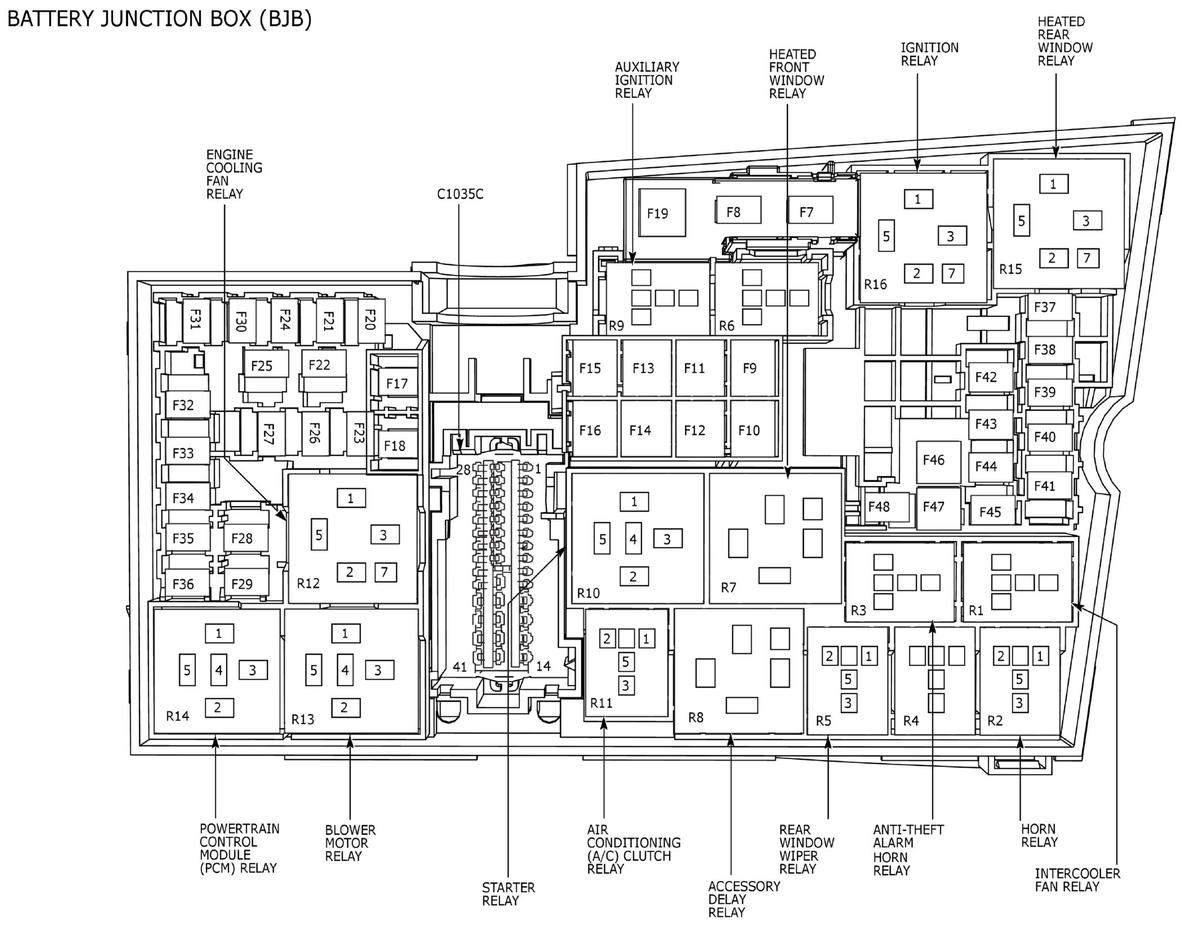

Fig 1: Battery Junction Box Location

Courtesy of FORD MOTOR COMPANY

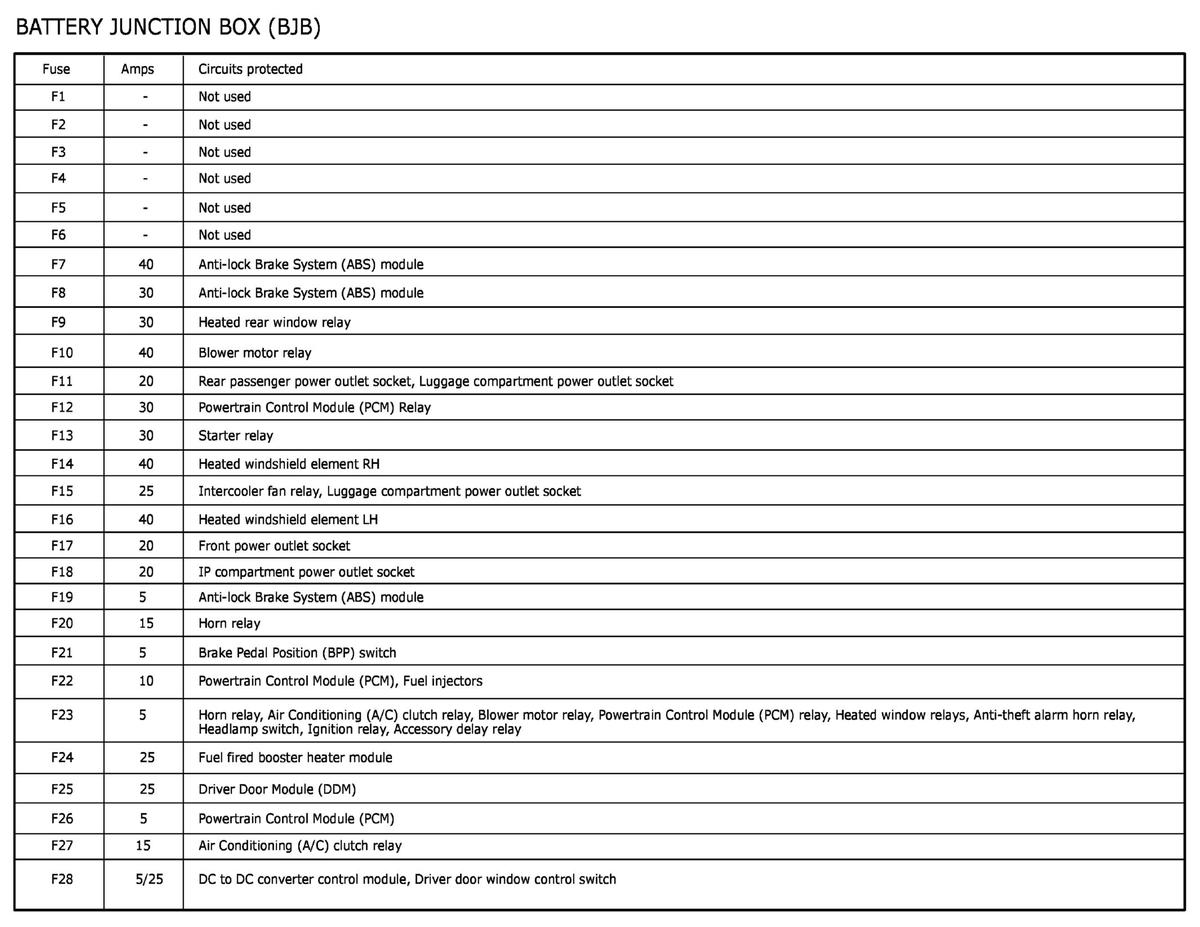

Fig 2: Battery Junction Box Location Legend (1 of 2)

Courtesy of FORD MOTOR COMPANY

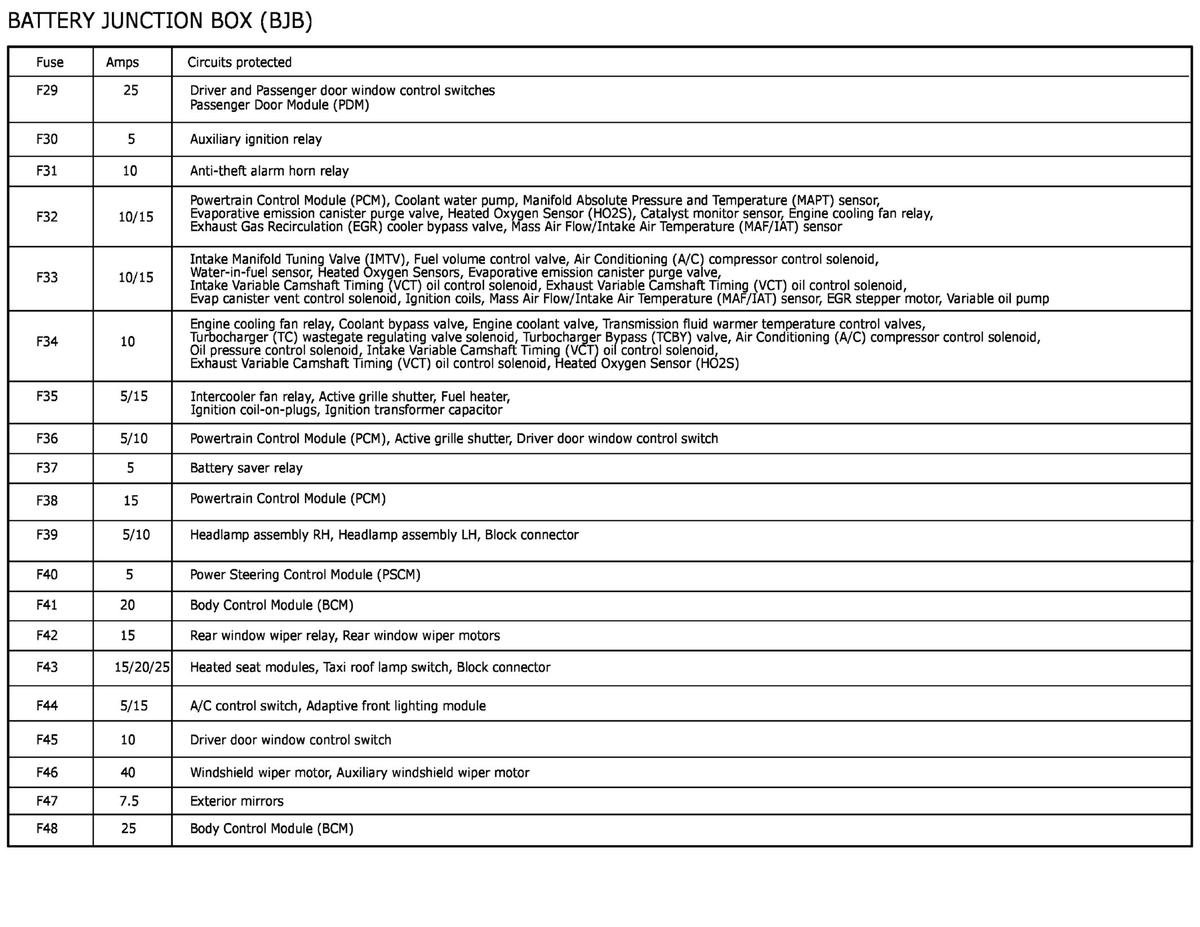

Fig 3: Battery Junction Box Location Legend (2 of 2)

Courtesy of FORD MOTOR COMPANY

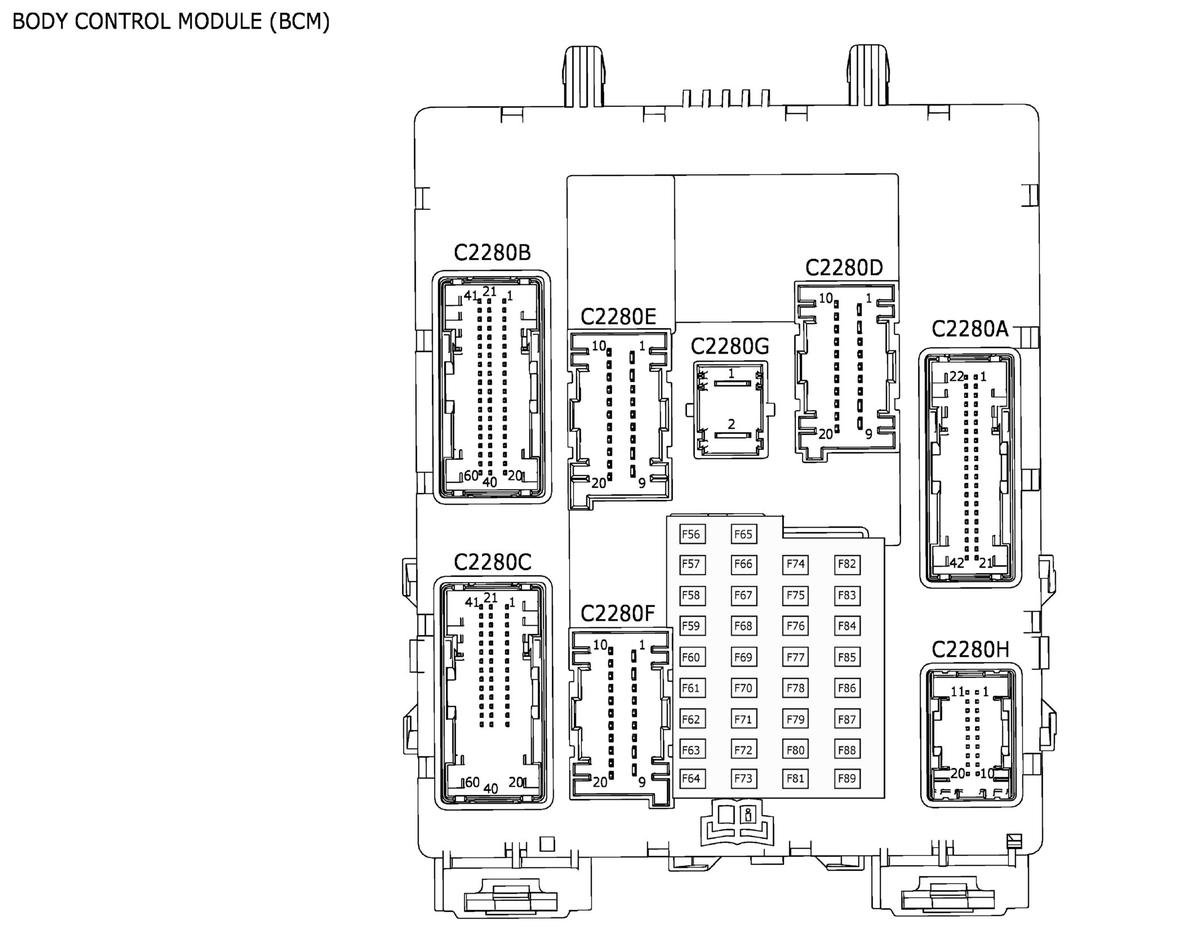

Fig 4: Body Control Module Location

Courtesy of FORD MOTOR COMPANY

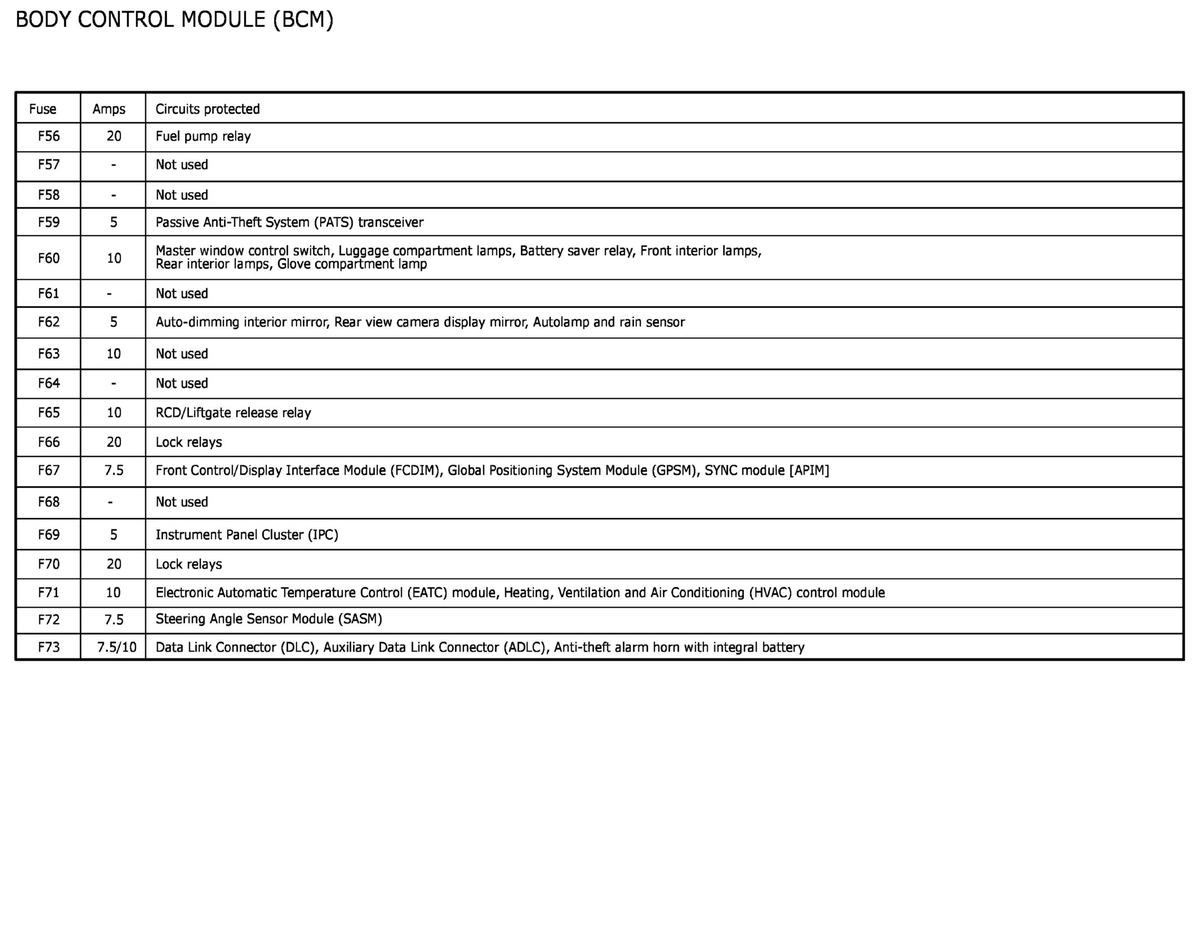

Fig 5: Body Control Module Location Legend (1 of 2)

Courtesy of FORD MOTOR COMPANY

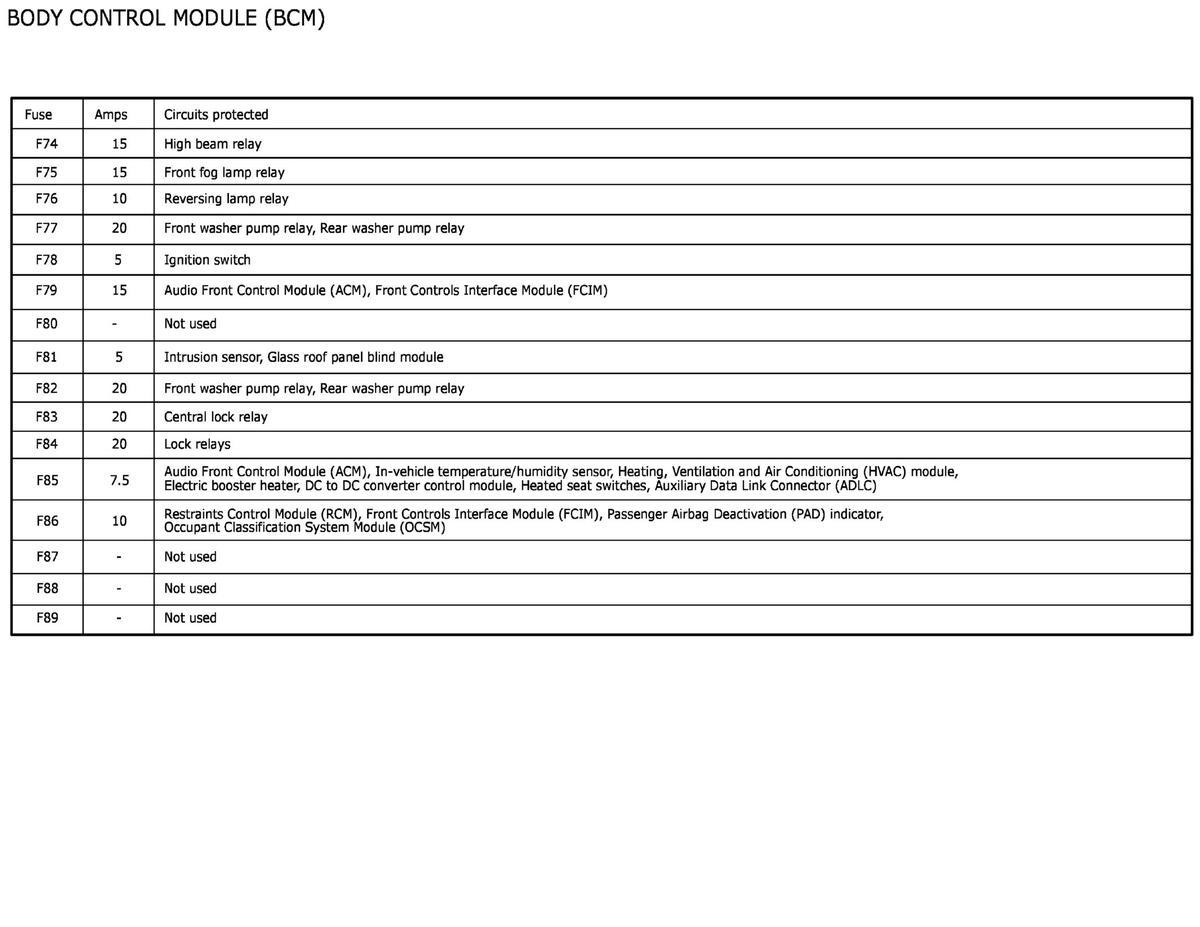

Fig 6: Body Control Module Location Legend (2 of 2)

Courtesy of FORD MOTOR COMPANY

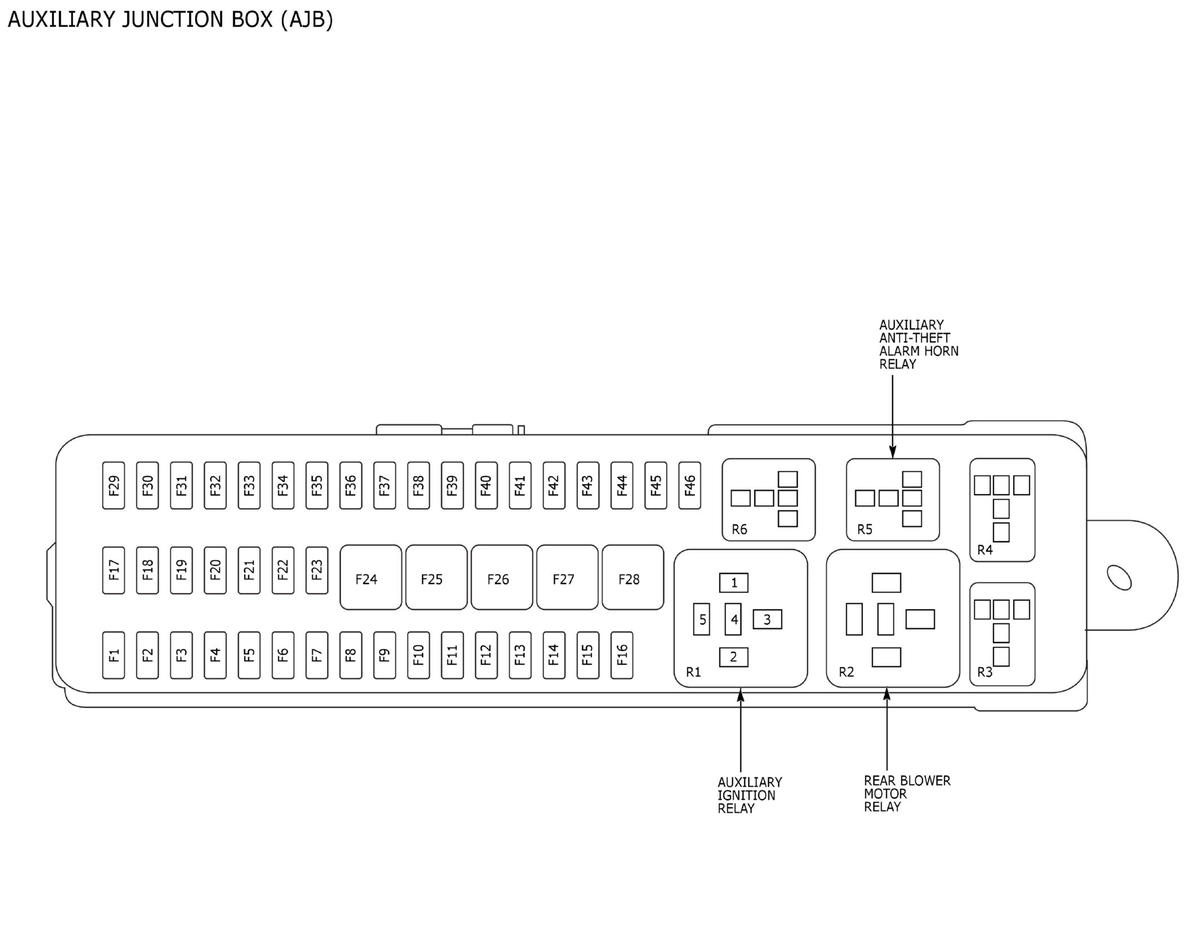

Fig 7: Auxiliary Junction Box Location

Courtesy of FORD MOTOR COMPANY

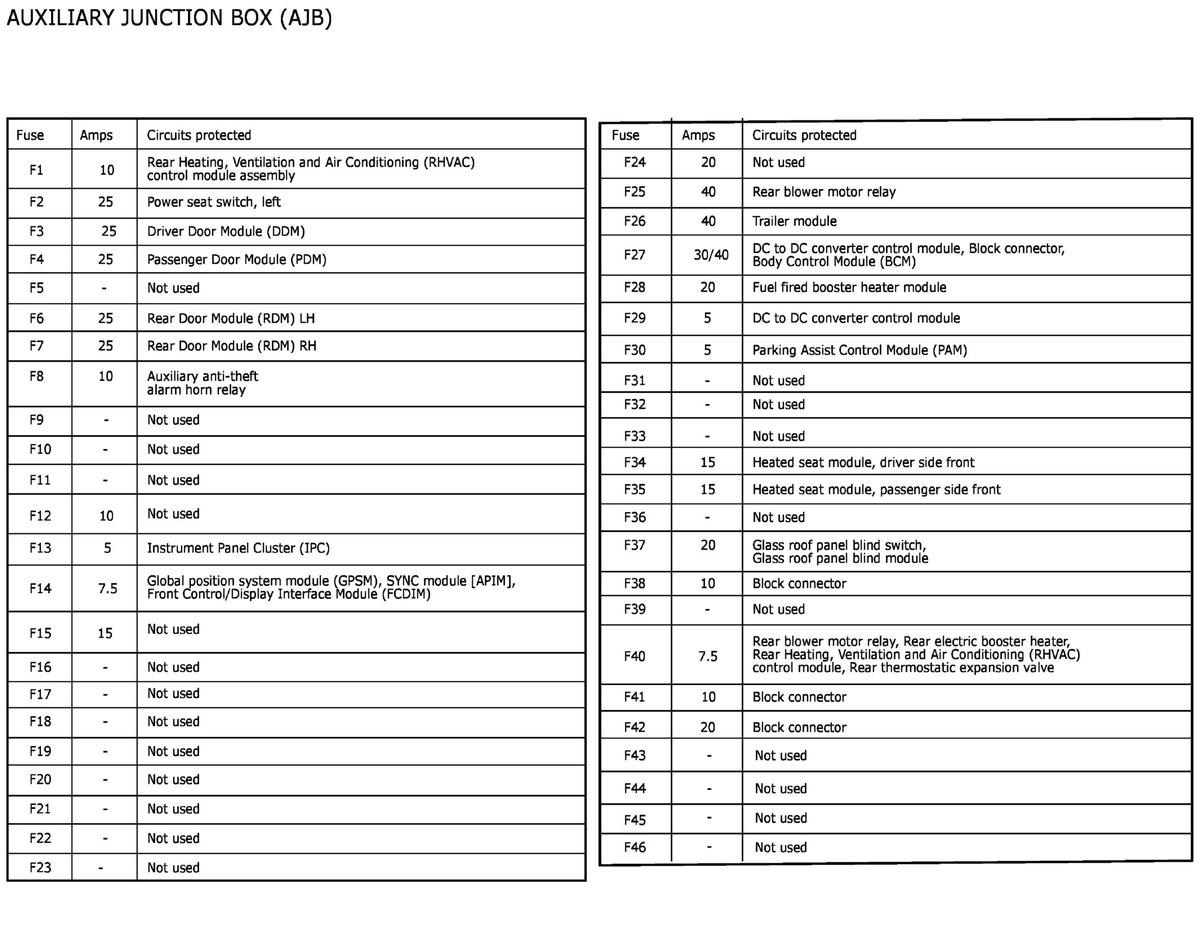

Fig 8: Auxiliary Junction Box Location Legend

Courtesy of FORD MOTOR COMPANY

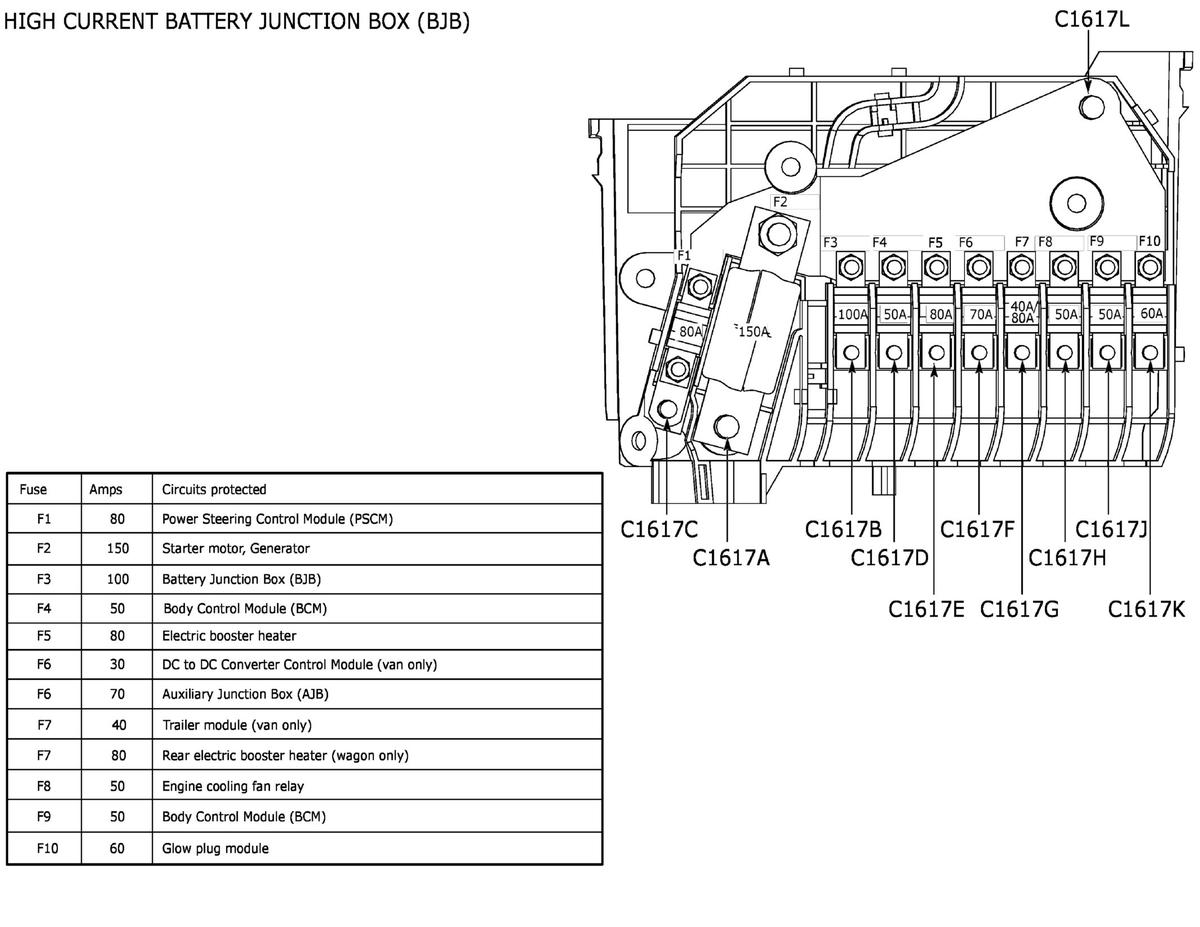

Fig 9: High Current Battery Junction Box Location and Legend

Courtesy of FORD MOTOR COMPANY
