In-Vehicle Crossbeam: Installation
- To install, reverse the removal procedure.
-

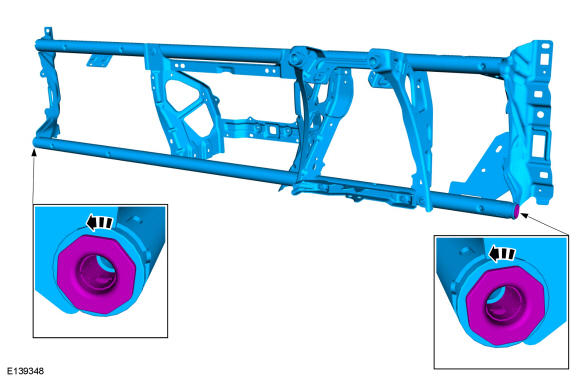

NOTE: Make sure that the tolerance absorbers turn without resistance.NOTE: In-vehicle cross beam shown without instrument panel for clarity.
Turn on both sides the tolerance absorber to the stop and turn back a half turn.
- Check on both sides that the tolerance absorber contacts the A-pillar.
