Electronic Engine Controls - Component Location

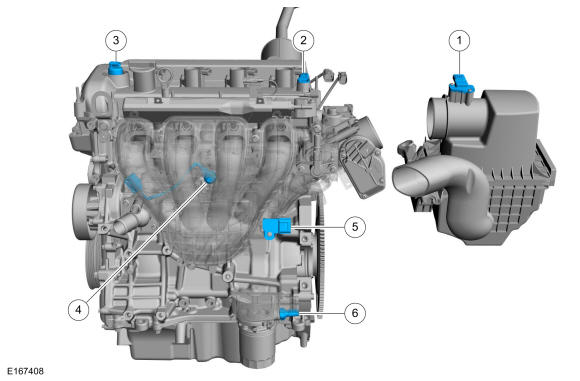

Front view of engine

Courtesy of FORD MOTOR COMPANY

Item	Description
1	MAF sensor
2	CMP sensor
3	VVT oil control solenoid
4	KS
5	MAP sensor
6	Oil pressure switch

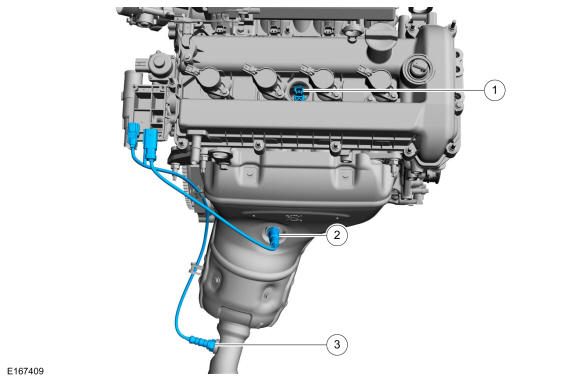

Rear view of engine

Courtesy of FORD MOTOR COMPANY

Item	Description
1	CHT sensor
2	HO2S
3	Catalyst monitor sensor
