Hood Alignment

WARNING: This page is about a different car, the 2016 Ford Transit Connect. However, it is still accessible from the selected car via links, so may be relevant.

Check

1.

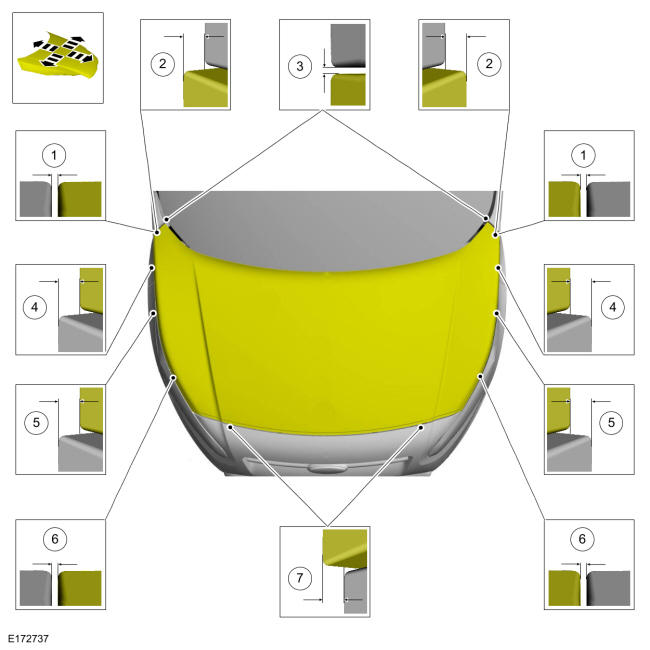

Check the hood-to-body dimensions.
- 1.

  Dimension: 0.1378 ±0.0591in (3.5 ±1.5mm)
- 2.

  Dimension: 0.0236-0.0787/+0.0394in (.6-2/+1mm)
- 3.

  Dimension: 0.1969 ±0.0591in (5 ±1.5mm)
- 4.

  Dimension: 0.0945 ±0.0591in (2.4 ±1.5mm)
- 5.

  Dimension: 0.1496 ±0.0591in (3.8 ±1.5mm)
- 6.

  Dimension: 0.1378 ±0.0591in (3.5 ±1.5mm)
- 7.

  Dimension: 0.0394 ±0.0787in (1 ±2mm)

Courtesy of FORD MOTOR COMPANY

Adjustment

1.

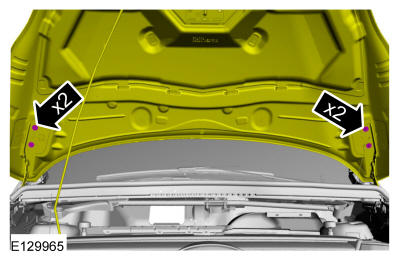

Loosen the nuts enough to permit movement of the hood. Loosen: 2 turn(s)

Courtesy of FORD MOTOR COMPANY

2.

Adjust the hood to specification.

Courtesy of FORD MOTOR COMPANY

3.

Tighten the nuts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

Check

1.

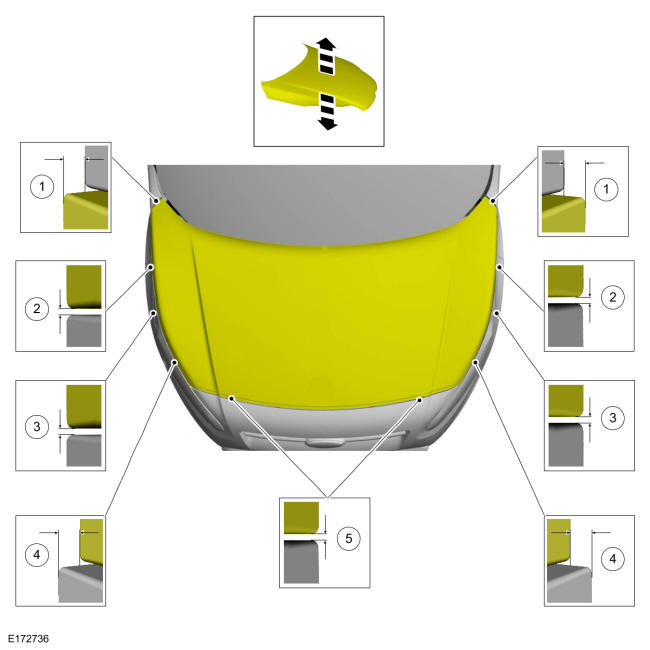

Check the body-to-hood dimensions.
- 1.

  Dimension: 0.0394-0.0787/+0.0394in (1-2/+1mm)
- 2.

  Dimension: 0.1260 ±0.0591in (3.2 ±1.5mm)
- 3.

  Dimension: 0.1260 ±0.0591in (3.2 ±1.5mm)
- 4.

  Dimension: 0.0512 ±0.0591in (1.3 ±1.5mm)
- 5.

  Dimension: 0.2362 ±0.0866in (6 ±2.2mm)

Courtesy of FORD MOTOR COMPANY

Adjustment

1.

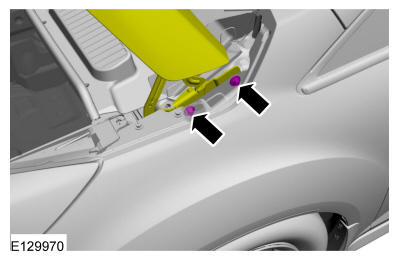

On both sides. Loosen the bolts enough to permit movement of the hood. Loosen: 2 turn(s)

Courtesy of FORD MOTOR COMPANY

2.

Adjust the hood to specification.

Courtesy of FORD MOTOR COMPANY

3.

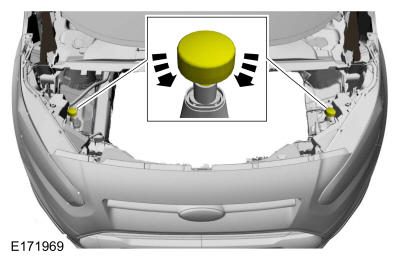

Adjust the bump stop rubbers.

Courtesy of FORD MOTOR COMPANY

4.

On both sides. Tighten the bolts.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
