Ignition Lock Cylinder: Disassembly
WARNING: This page is about a different car, the 2016 Ford Transit Connect. However, it is still accessible from the selected car via links, so may be relevant.
- 1.
Refer to: Ignition Lock Cylinder .

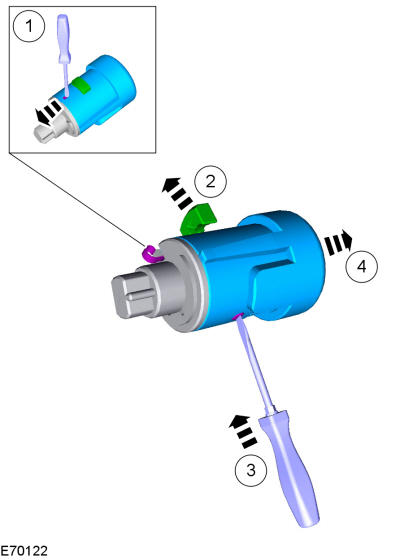

- 6.NOTE: Note the position of the components before removal.
- 1.
Make sure to read the key code from the key entry to the end of the lock barrel in sequence.
- 2.

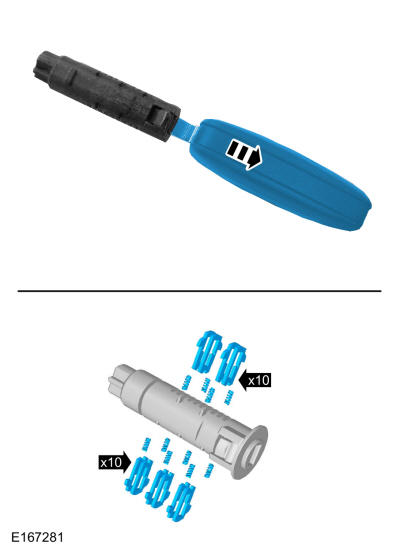

Make a note of the position and orientation of the ignition lock cylinder barrel tumblers.
- 3.
One group of tumblers is signed with a one digit number (1 to 5), the other group of tumblers is signed with a two digit number (11 to 15).
