Component Bleeding

WARNING: This page is about a different car, the 2016 Ford Transit Connect. However, it is still accessible from the selected car via links, so may be relevant.

Special Tool(s) / General Equipment

Master Cylinder Bleeding Set

Bleeding

NOTE: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

Master Cylinder

NOTE: When a new brake master cylinder has been installed, it should be primed to prevent air from entering the system.

1.

NOTE: Make sure the area around the master cylinder cap is clean and free of foreign material.

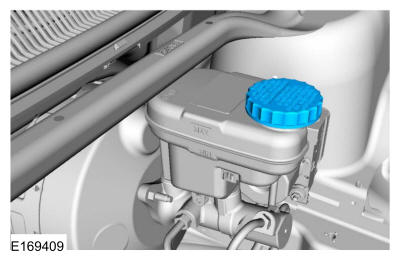

Remove the brake fluid reservoir cap.

GFD148299

Courtesy of FORD MOTOR COMPANY

2.

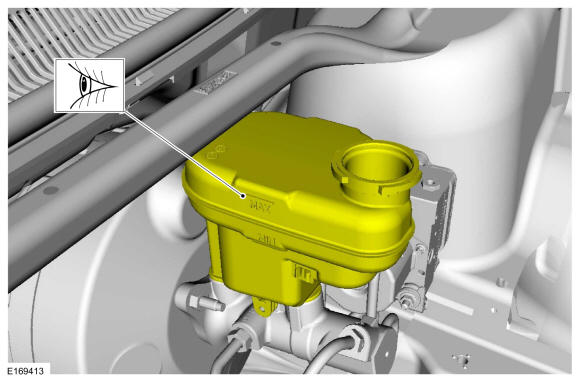

Fill the reservoir with clean, specified brake fluid. Refer to: Specifications .

GFD148300

Courtesy of FORD MOTOR COMPANY

3.

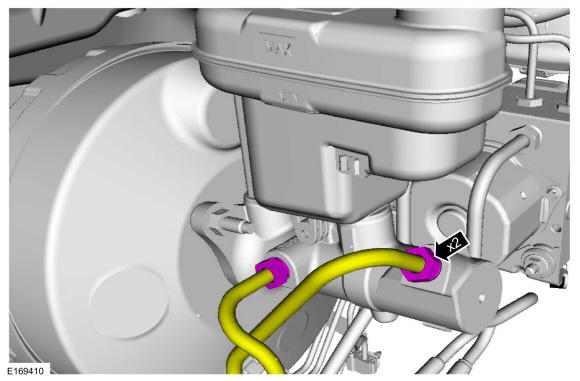

Loosen and remove the brake tube fittings.

GFD148301

Courtesy of FORD MOTOR COMPANY

4.

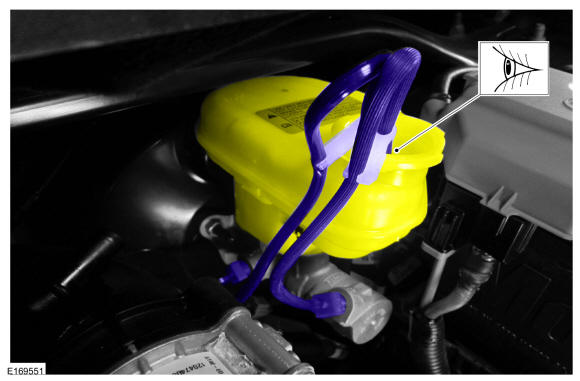

Install the master cylinder bleeding set. Use the General Equipment: Master Cylinder Bleeding Set

GFD148302

Courtesy of FORD MOTOR COMPANY

5.

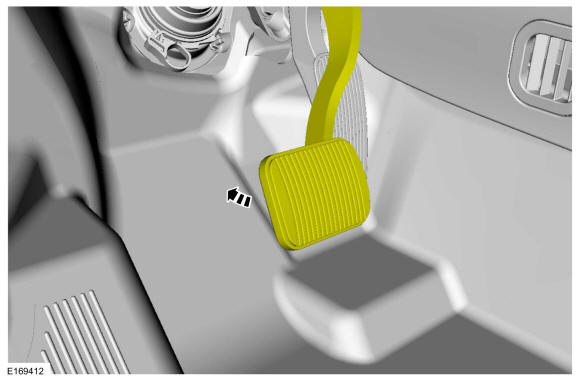

Have an assistant pump the brake pedal slowly until clear bubble free fluid flows from the brake tubes.

GFD148303

Courtesy of FORD MOTOR COMPANY

6.

Remove the master cylinder bleeding set. Remove the General Equipment: Master Cylinder Bleeding Set

GFD148302

Courtesy of FORD MOTOR COMPANY

7.

Tighten the brake tube fittings. Refer to: Specifications .

GFD148301

Courtesy of FORD MOTOR COMPANY

8.

Fill the reservoir with clean, specified brake fluid. Refer to: Specifications .

GFD148300

Courtesy of FORD MOTOR COMPANY

9.

Refer to: Brake System Pressure Bleeding .

Brake Caliper, Wheel Cylinder, Brake Hose or Brake Tube

10.

NOTE: Pressure bleeding the brake system is required anytime a hydraulic brake system component has been disconnected.

Refer to: Brake System Pressure Bleeding .
