Windshield Wiper Pivot Arm: Installation

WARNING: This page is about a different car, the 2016 Ford Transit Connect. However, it is still accessible from the selected car via links, so may be relevant.

1.

Cycle and park the front window wiper.

2.

NOTE: Make sure the wiper motor is in the PARK position.

NOTE: LH windshield wiper pivot arm is always positioned above the RH windshield wiper pivot arm.
1. 1.

  Align windshield wiper blades inside the marks on the windshield.
1. 2.

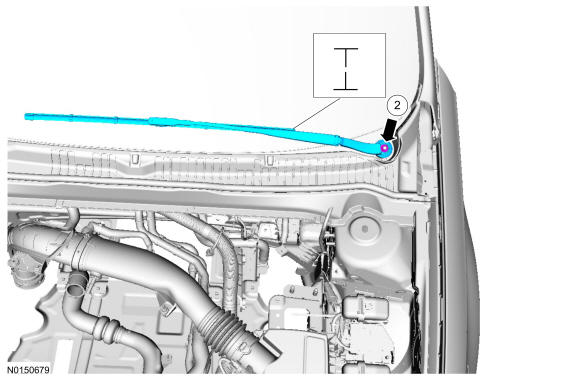

  Install the wiper pivot arm nut.
  Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

3.

NOTE: This step is only necessary If the windshield wiper arm(s) alignment marks are not available.

NOTE: Make sure the wiper motor is in the PARK position.

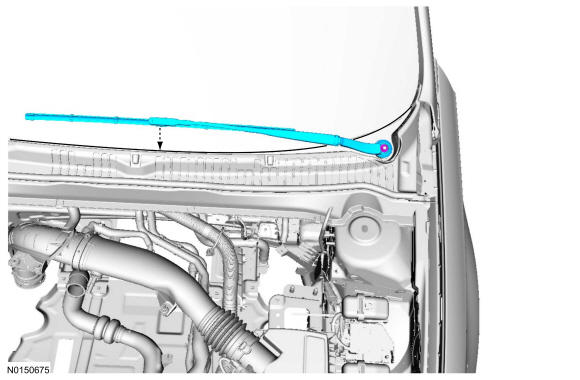

- Align LH wiper pivot arm to measurement.
  Dimension: 3.7402in (95mm)
- Align RH wiper pivot arm to measurement.
  Dimension: 1.9685in (50mm)

Courtesy of FORD MOTOR COMPANY

4.

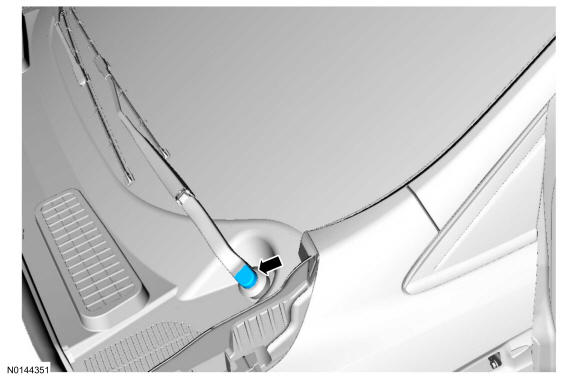

Install the windshield wiper pivot arm nut cover.

Courtesy of FORD MOTOR COMPANY

5.

Carry out a low speed windshield wipe on a wet windshield and make sure the wiper motor and arms park in the correct position.

6.

Carry out a high speed windshield wipe on a wet windshield and make sure the wiper blades do not contact the A-pillar.
