Steering Column Multifunction Switch LH: Removal

WARNING: This page is about a different car, the 2016 Ford Transit Connect. However, it is still accessible from the selected car via links, so may be relevant.

1.

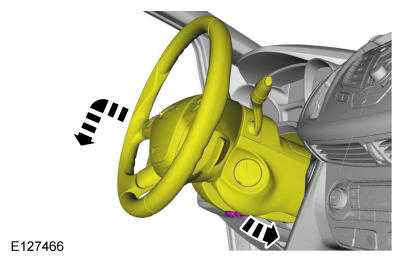

Position the steering column in the full forward/down position.

Courtesy of FORD MOTOR COMPANY

2.

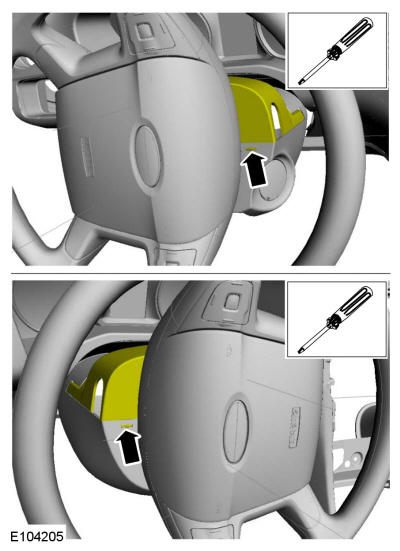

Rotate the steering wheel and release the retainers. Use the General Equipment: Flat Headed Screw Driver

Courtesy of FORD MOTOR COMPANY

3.

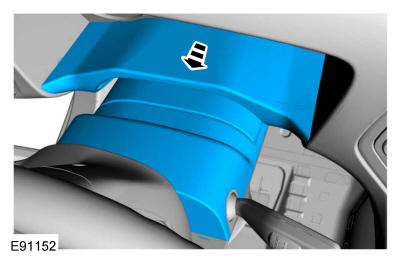

Slide the upper steering column shroud forward and remove.

Courtesy of FORD MOTOR COMPANY

4.

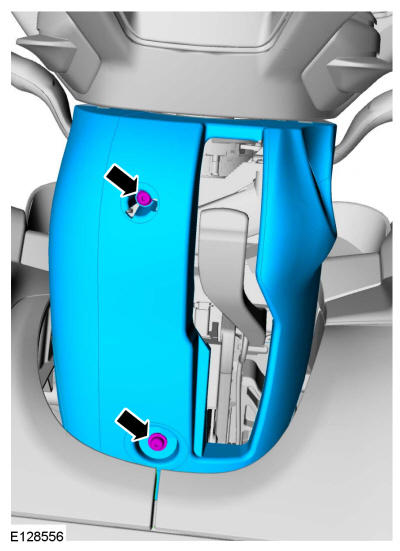

Remove the retainers and the lower steering column shroud.

Courtesy of FORD MOTOR COMPANY

Vehicles with lane departure warning

5.

NOTE: Make sure that the component terminals are not bent or damaged.

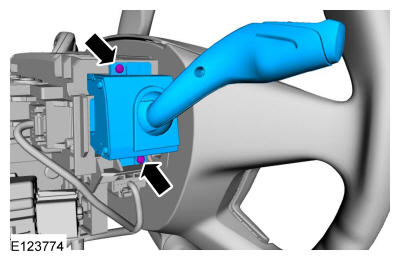

Remove the retainers and the LH steering column multifunction switch

Courtesy of FORD MOTOR COMPANY

Vehicles without lane departure warning

6.

NOTE: Make sure that the component terminals are not bent or damaged.

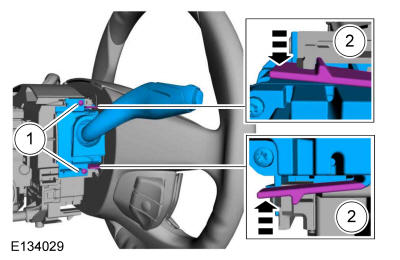

1. 1.

  Remove the retainers.
1. 2.

  Release the tabs and the LH steering column multifunction switch.

Courtesy of FORD MOTOR COMPANY
