Front Brake Caliper: Removal

WARNING: This page is about a different car, the 2016 Ford Transit Connect. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the wheel and tire. Refer to: Wheel and Tire .

2.

Loosen the brake hose fitting and disconnect the brake hose.

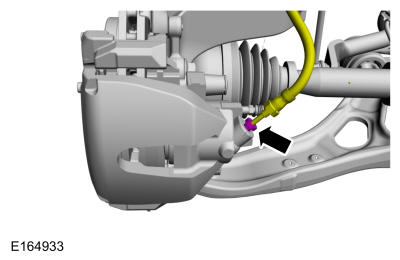

GFD148304

Courtesy of FORD MOTOR COMPANY

3.

Remove the brake caliper spring.

GFD148305

Courtesy of FORD MOTOR COMPANY

4.
- 1.

  Remove the caps.
- 2.

  Remove the brake caliper guide pin bolts.
  Torque: 21 lb.ft (28 Nm)
- 3.

  Remove the brake caliper.

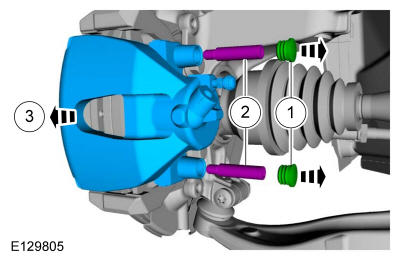

GFD148306

Courtesy of FORD MOTOR COMPANY

5.

Remove the outboard brake pad.

GFD148307

Courtesy of FORD MOTOR COMPANY

6.

Remove the inboard brake pad.

GFD148308

Courtesy of FORD MOTOR COMPANY
