Accelerator Pedal: Removal
WARNING: This page is about a different car, the 2016 Ford Transit Connect. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.

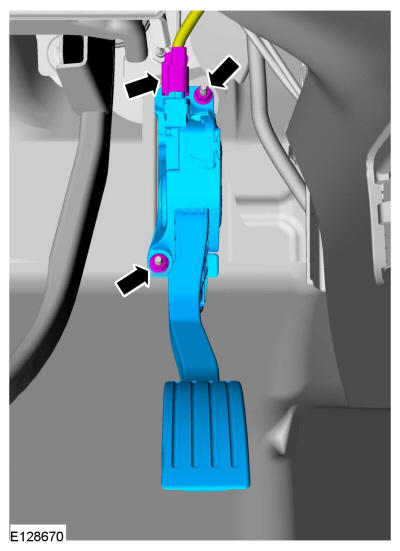

Disconnect the electrical connector, remove the bolts and the accelerator pedal assembly.Torque: 71 lb.in (8 Nm)
 Courtesy of FORD MOTOR COMPANY
|
