Rear Climate Control - Component Location
WARNING: This page is about a different car, the 2016 Ford Transit Connect. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|

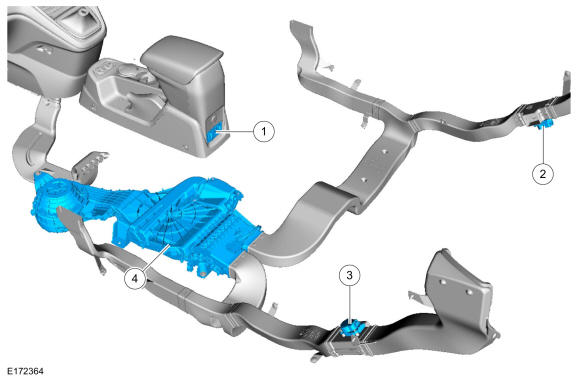

| Item |
Description |
| 1 |
RHVAC control module |
| 2 |
Rear air distribution door actuator RH |
| 3 |
Rear air distribution door actuator LH |
| 4 |
Rear climate control housing |
 Courtesy of FORD MOTOR COMPANY
|

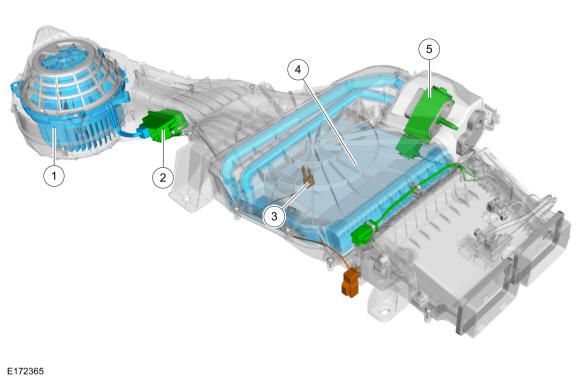

| Item |
Description |
| 1 |
Rear blower motor |
| 2 |
Rear blower motor control module |
| 3 |
Rear evaporator temperature sensor |
| 4 |
Rear evaporator |
| 5 |
Rear Thermostatic Expansion Valve (TXV) |
