OEM Electrical Wiring Diagram Introduction: Introduction

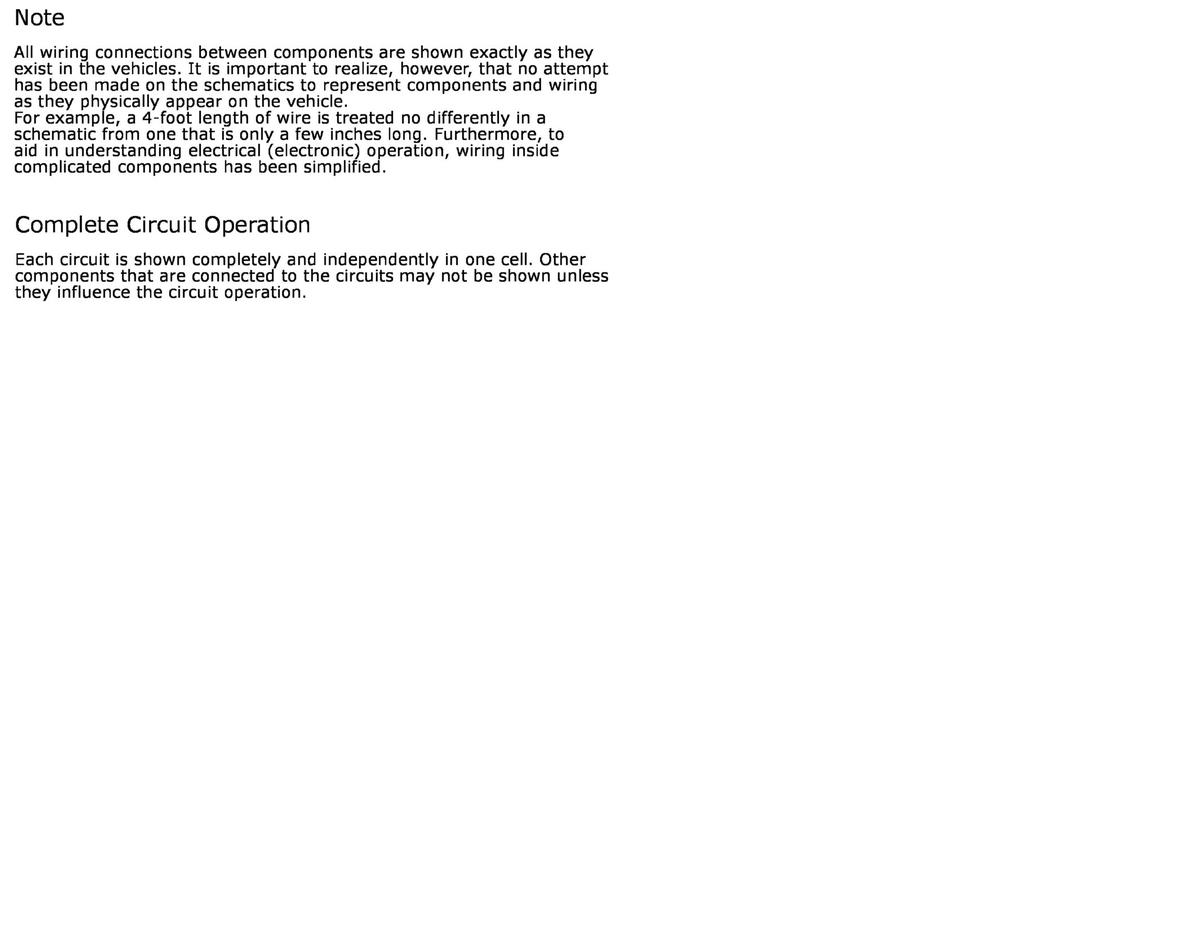

GFDW85650Courtesy of FORD MOTOR COMPANY

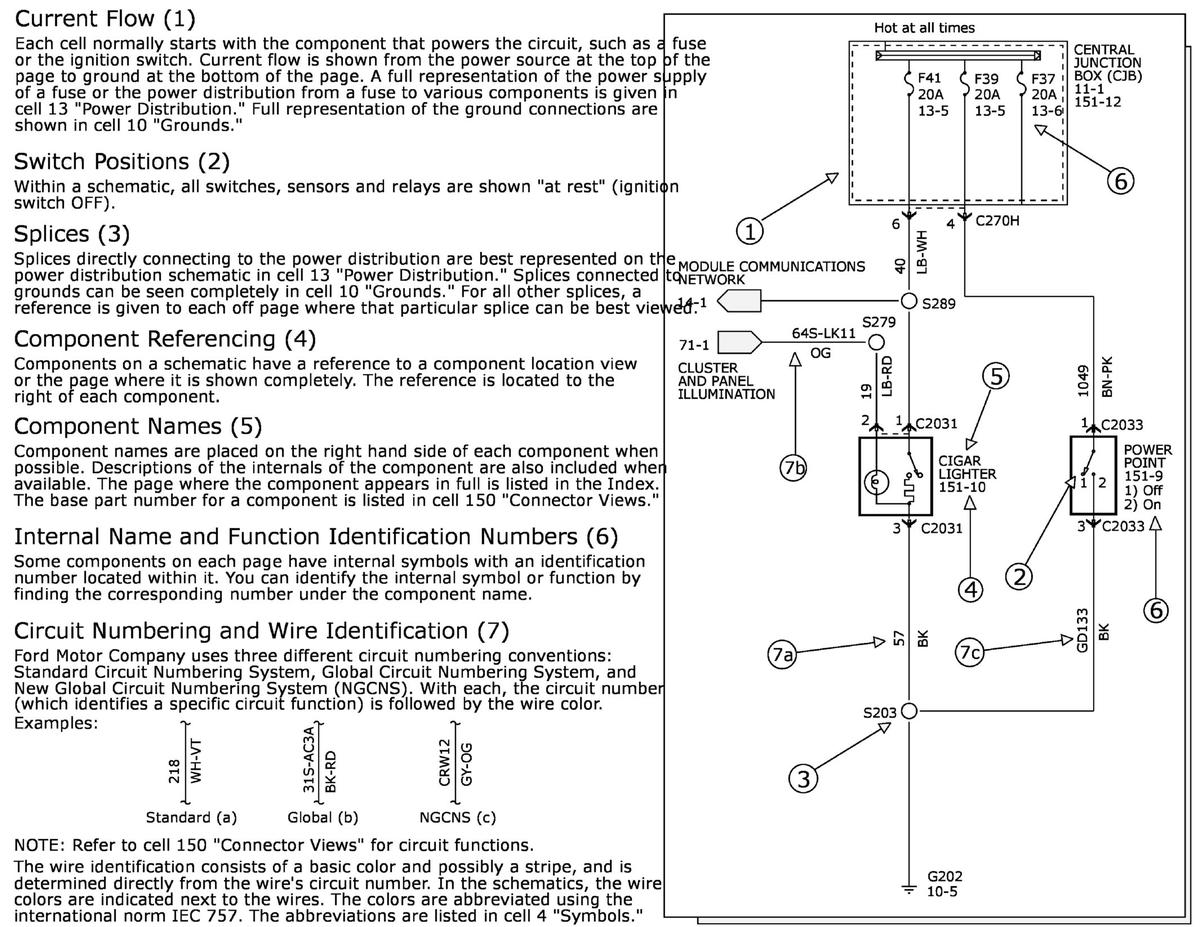

GFDW85651Courtesy of FORD MOTOR COMPANY

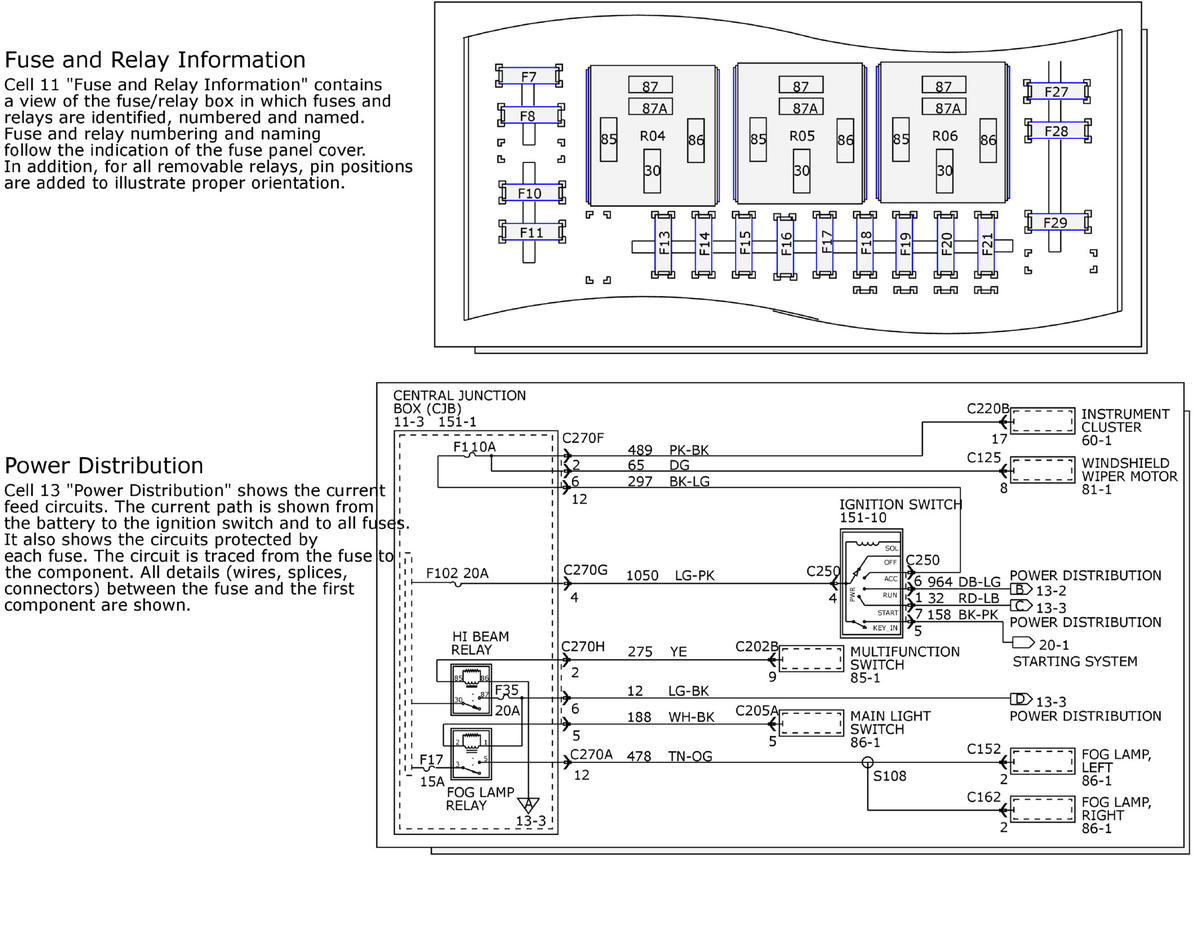

GFDW85652Courtesy of FORD MOTOR COMPANY

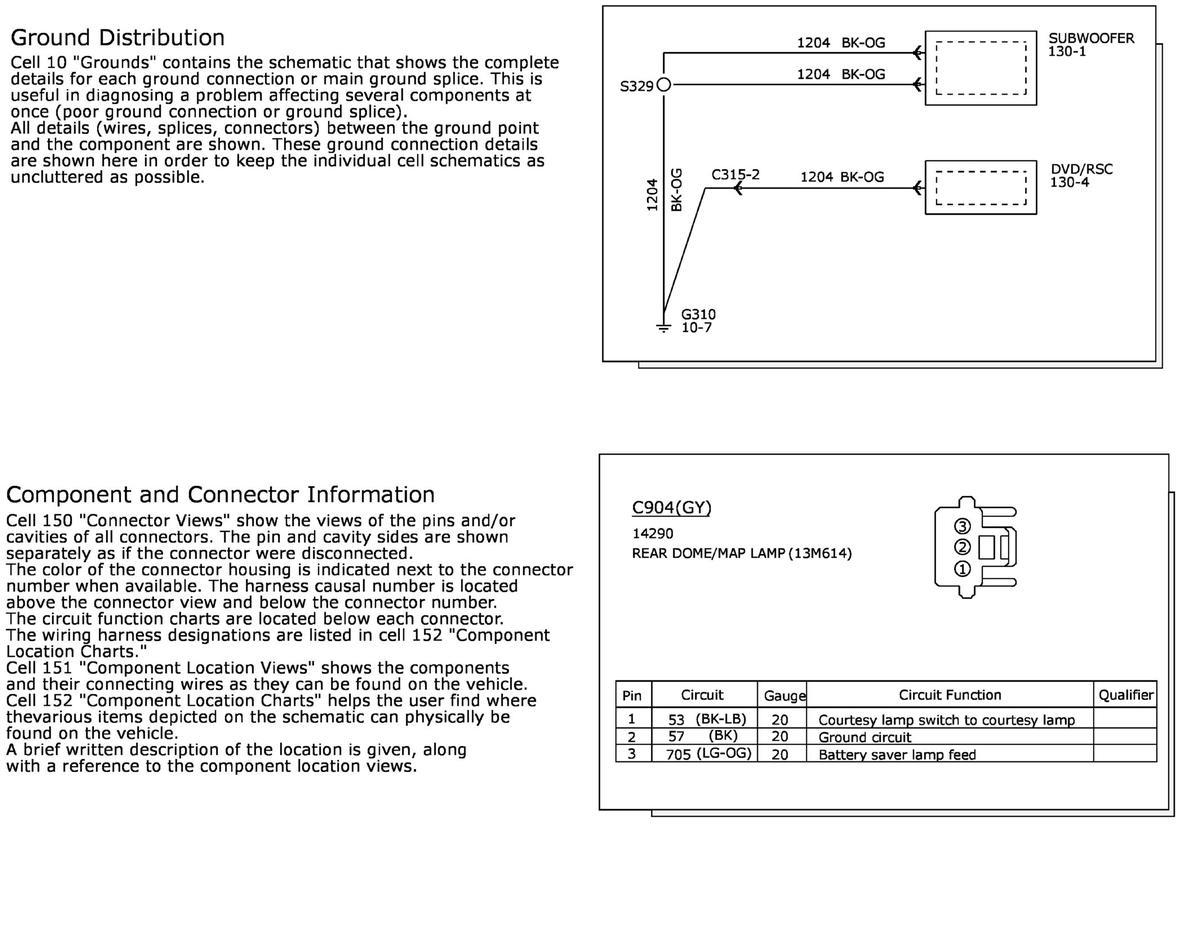

GFDW85653Courtesy of FORD MOTOR COMPANY

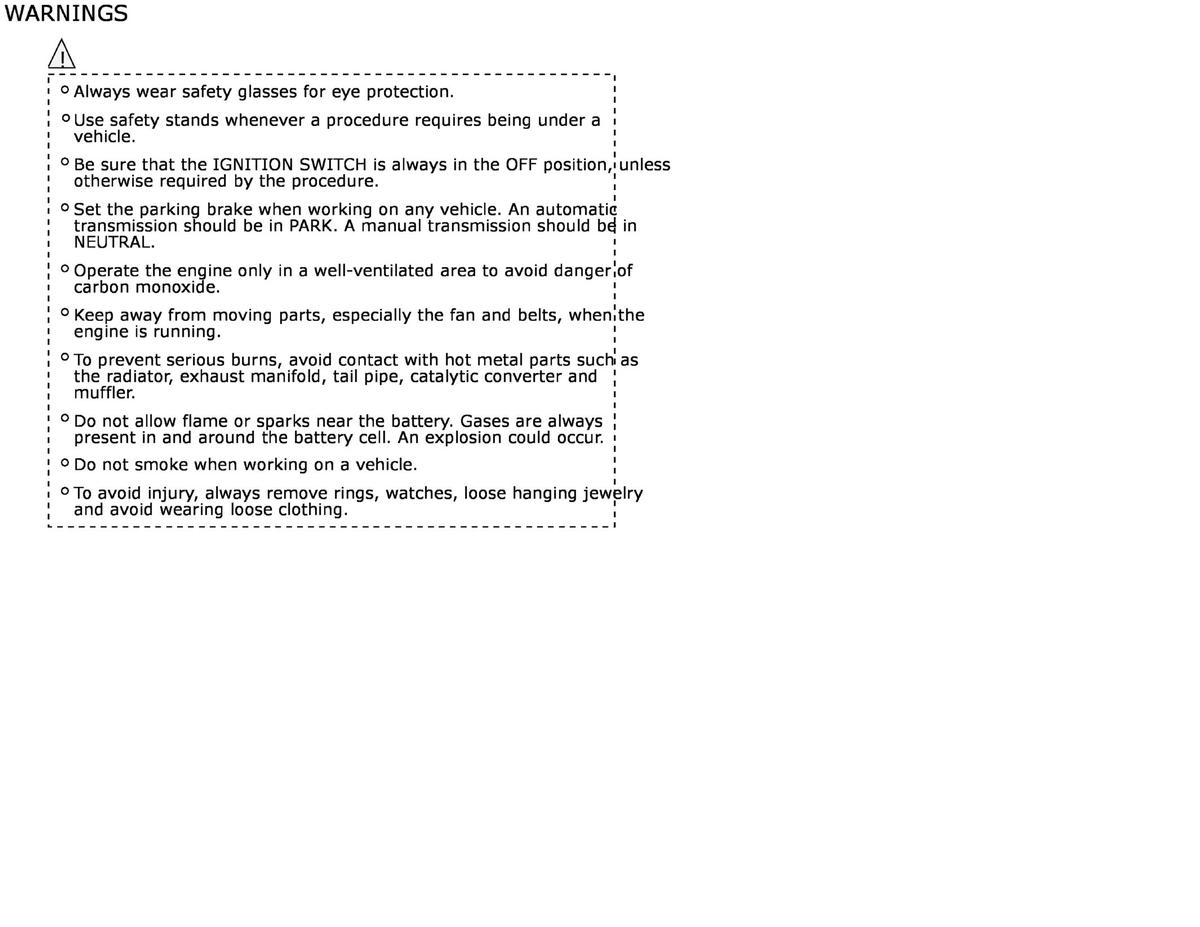

GFDW85654Courtesy of FORD MOTOR COMPANY
