Manual Climate Control System

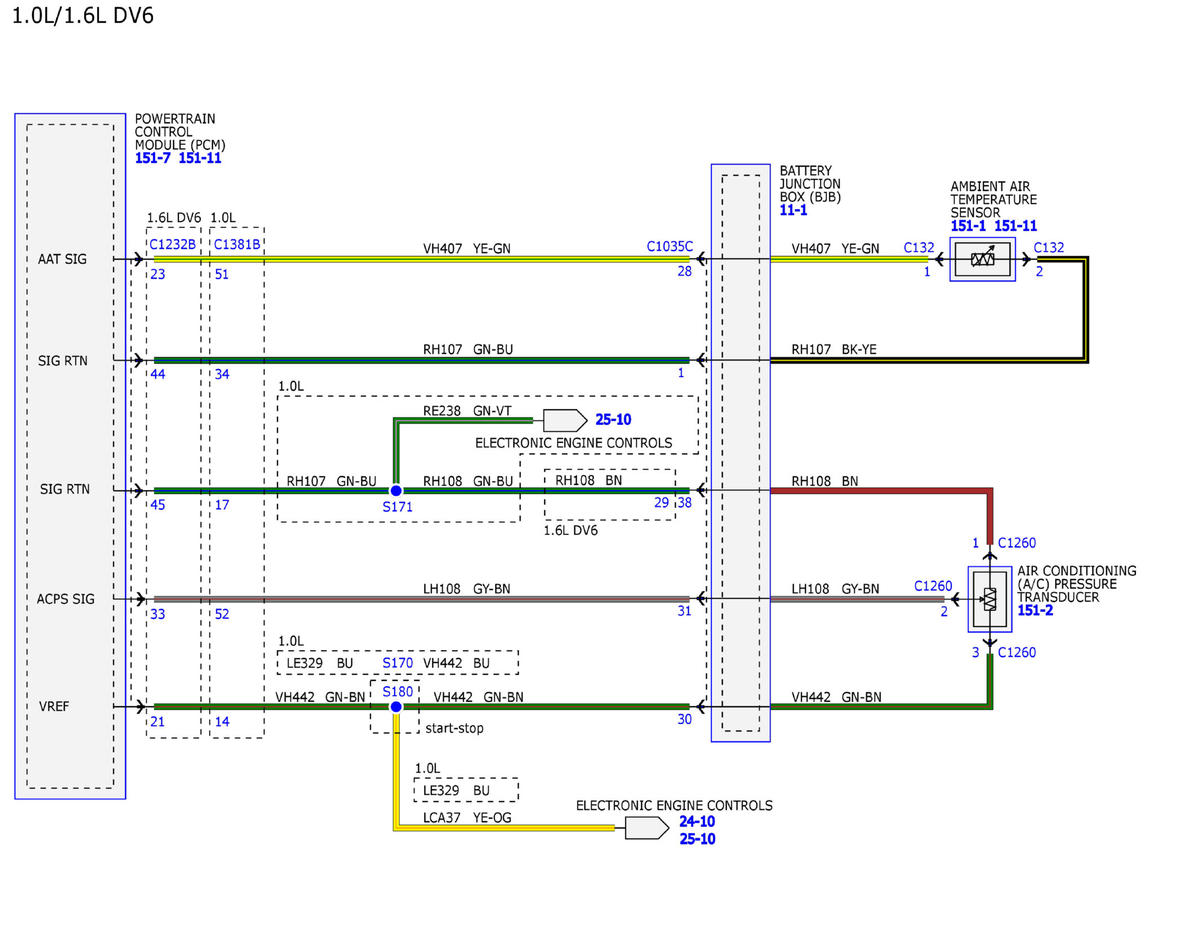

Fig 1: Manual Climate Control System Wiring Diagram (1 of 6)

Courtesy of FORD MOTOR COMPANY

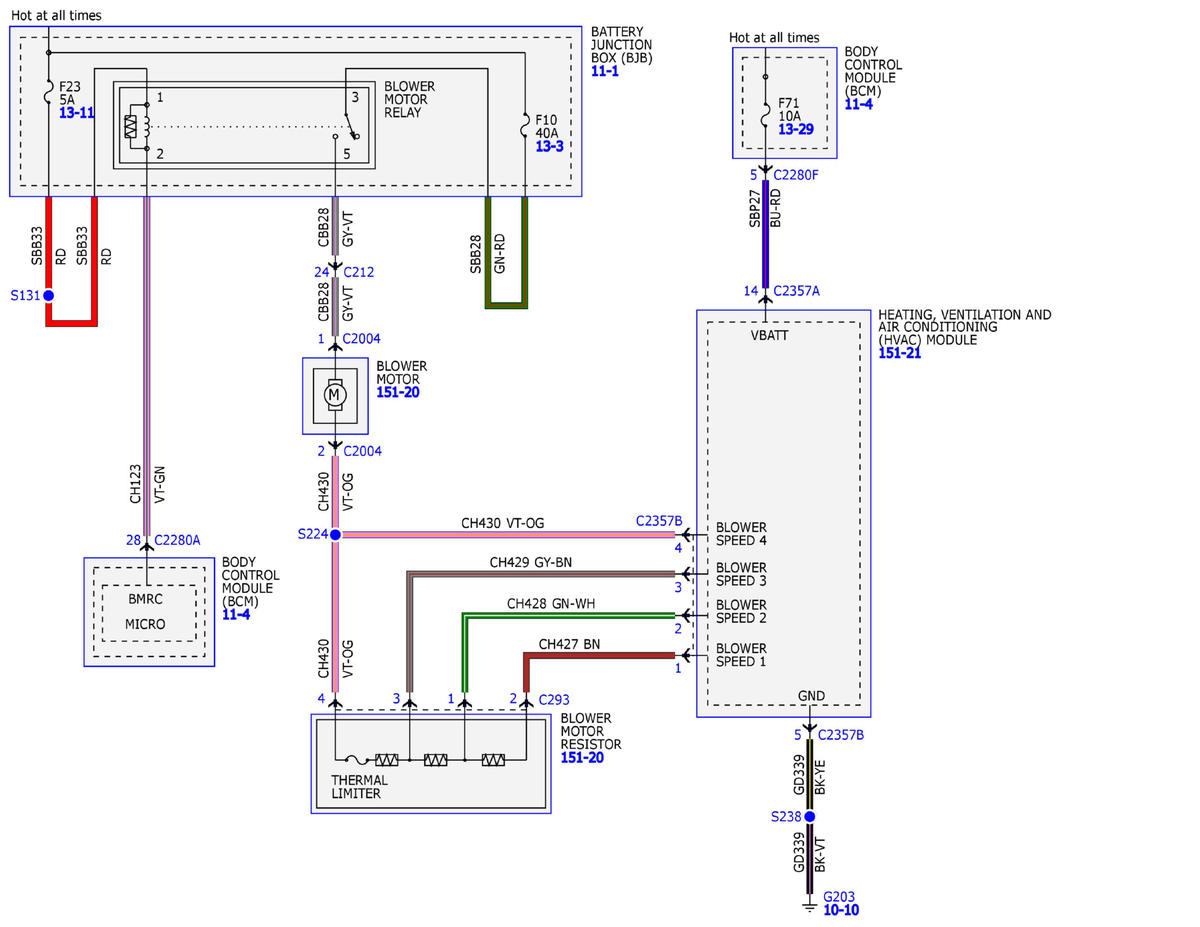

Fig 2: Manual Climate Control System Wiring Diagram (2 of 6)

Courtesy of FORD MOTOR COMPANY

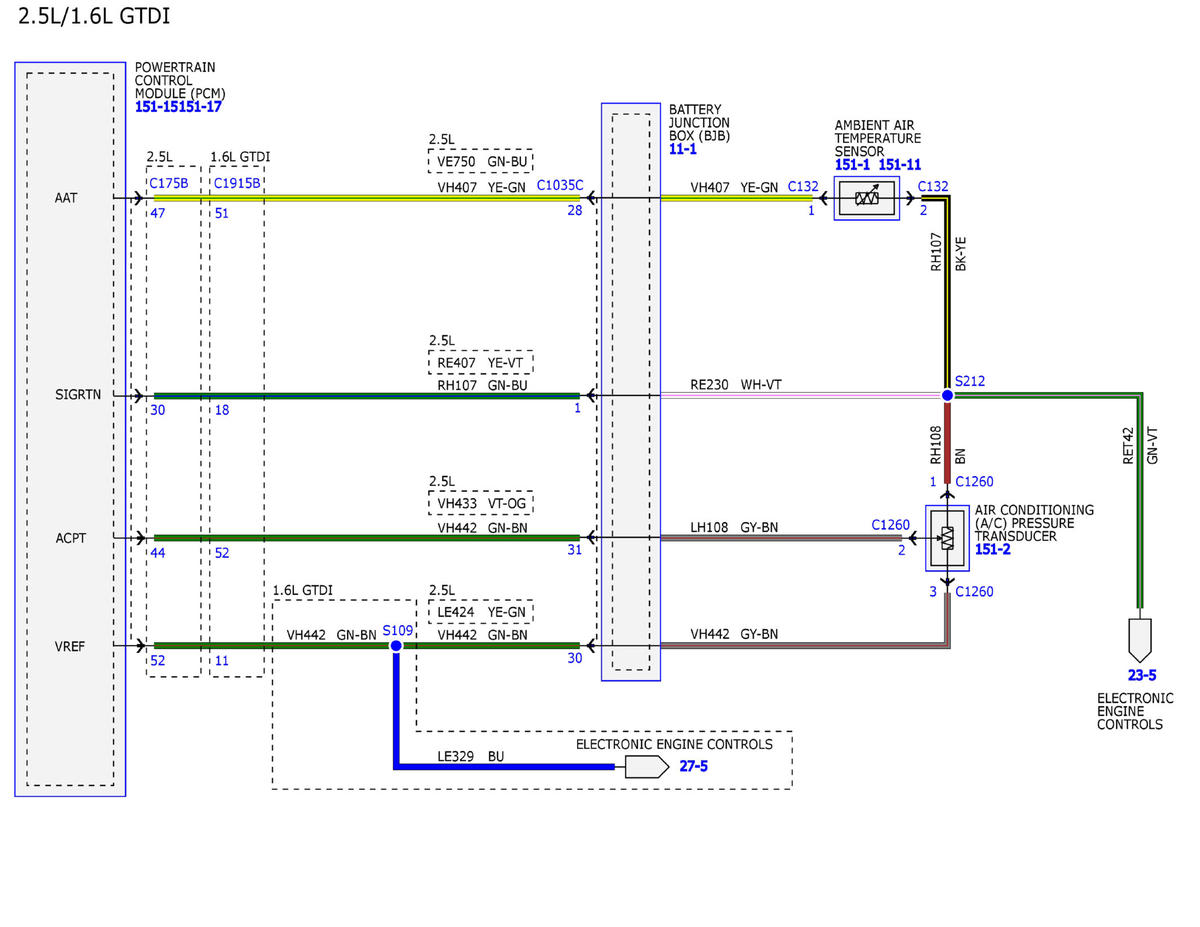

Fig 3: Manual Climate Control System Wiring Diagram (3 of 6)

Courtesy of FORD MOTOR COMPANY

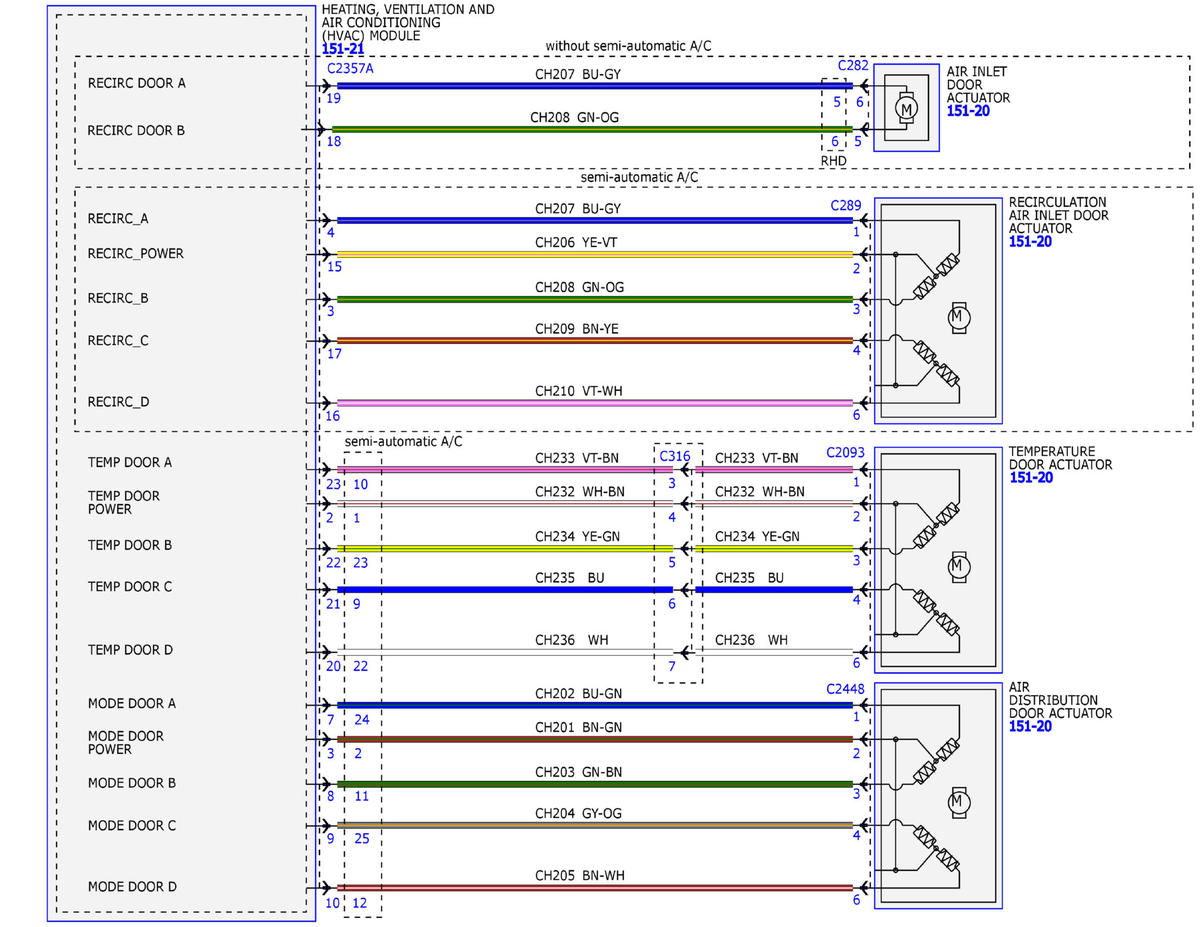

Fig 4: Manual Climate Control System Wiring Diagram (4 of 6)

Courtesy of FORD MOTOR COMPANY

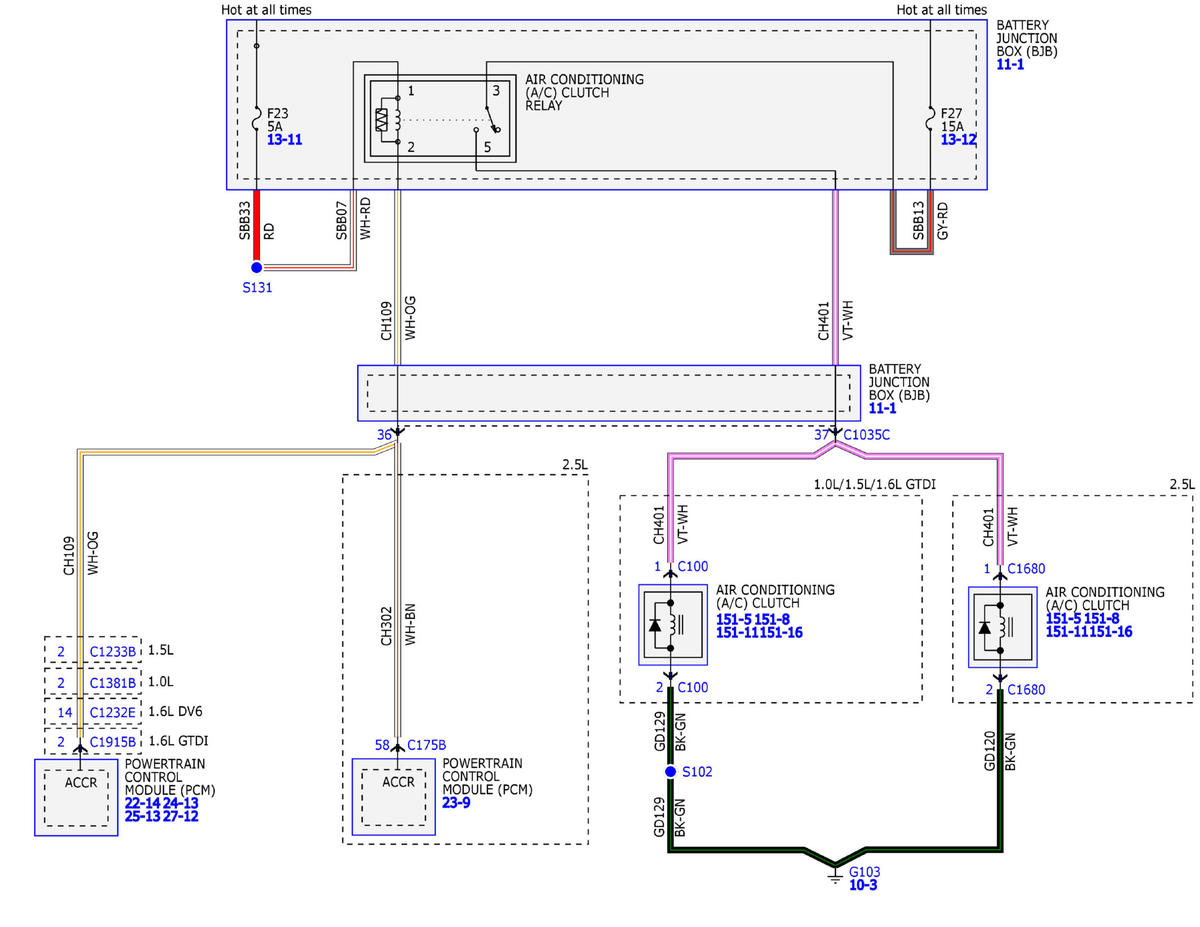

Fig 5: Manual Climate Control System Wiring Diagram (5 of 6)

Courtesy of FORD MOTOR COMPANY

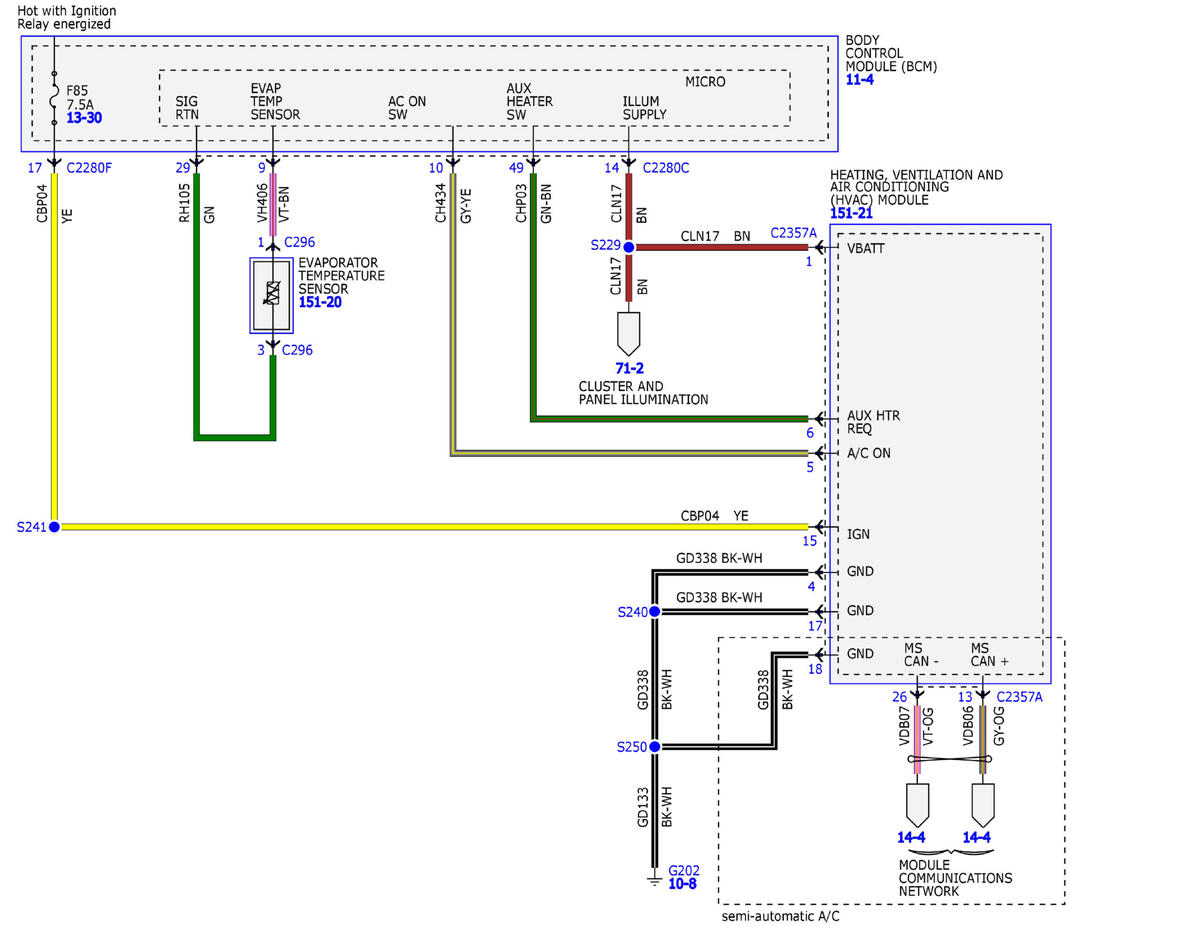

Fig 6: Manual Climate Control System Wiring Diagram (6 of 6)

Courtesy of FORD MOTOR COMPANY
