Wiring Diagrams
›
OEM Wiring Diagrams
›
Vehicle Dynamic Systems
Vehicle Dynamic Systems

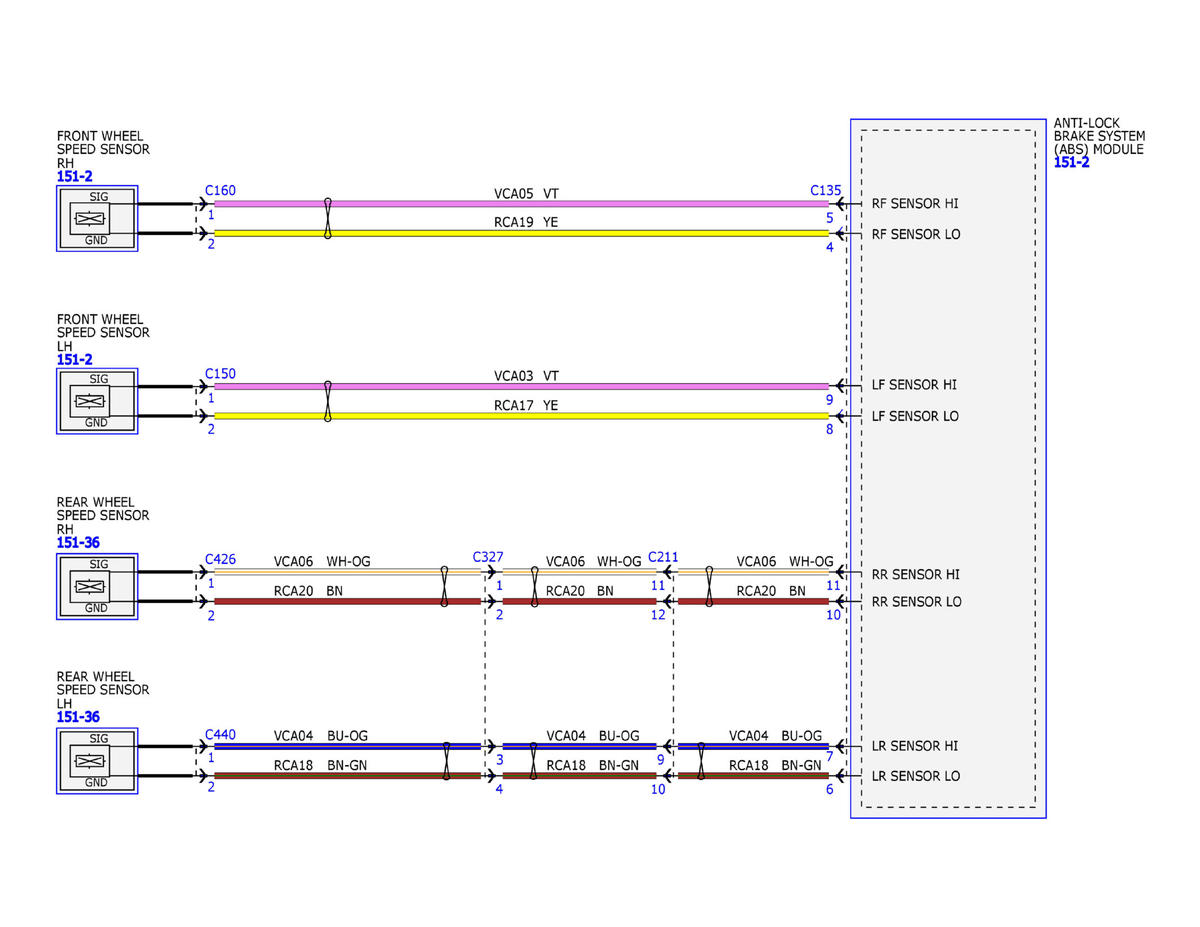

Fig 1: Vehicle Dynamic Systems Wiring Diagram (1 of 3)
Courtesy of FORD MOTOR COMPANY

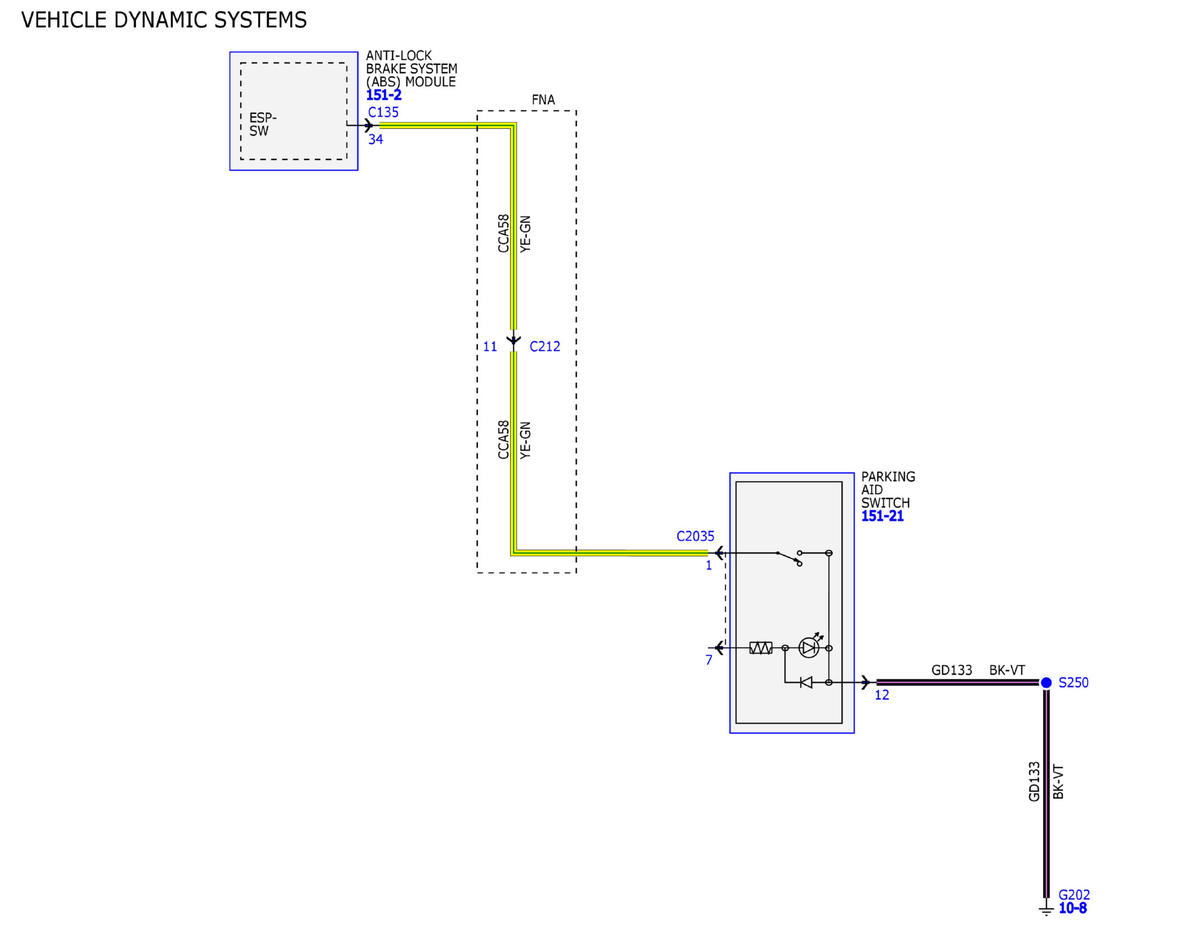

Fig 2: Vehicle Dynamic Systems Wiring Diagram (2 of 3)
Courtesy of FORD MOTOR COMPANY

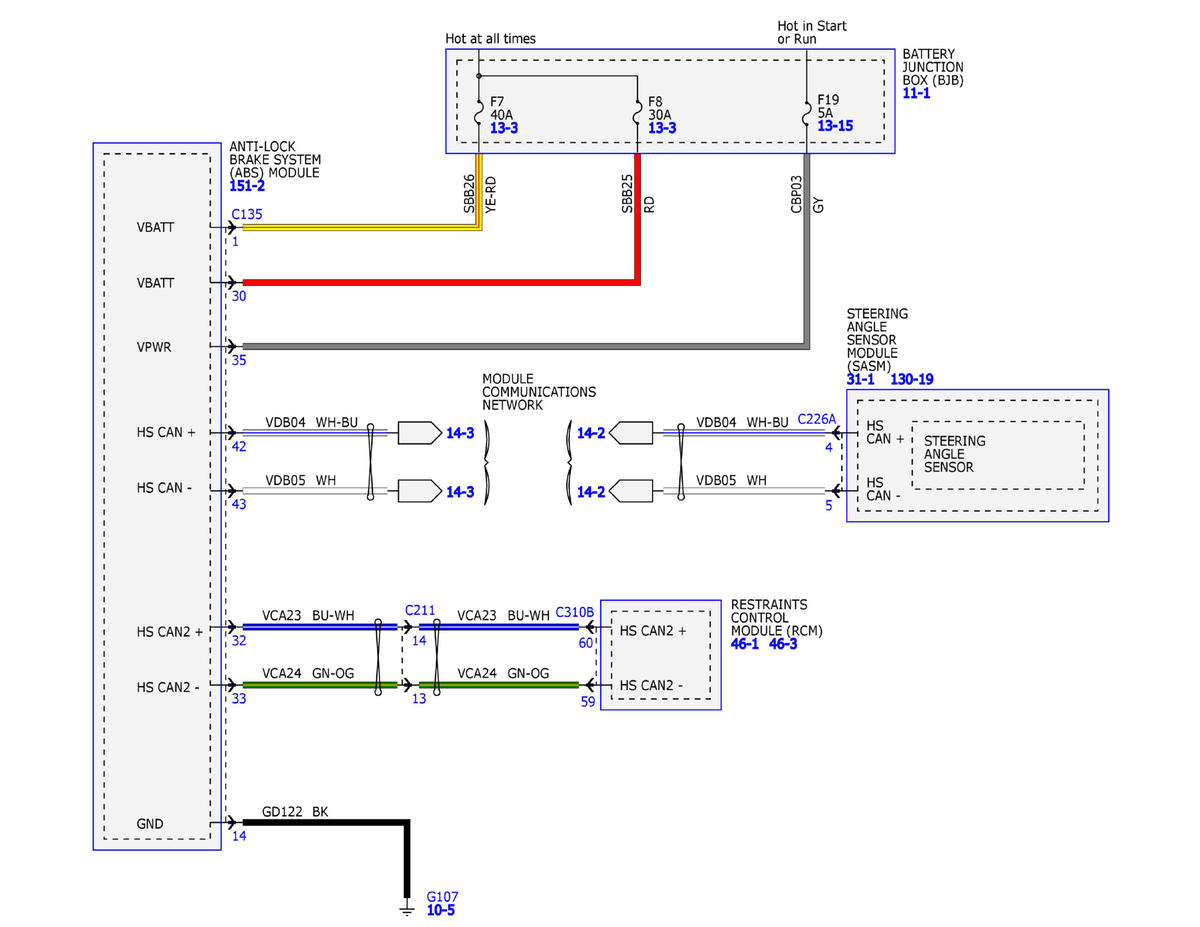

Fig 3: Vehicle Dynamic Systems Wiring Diagram (3 of 3)
Courtesy of FORD MOTOR COMPANY
