Third Row Seatbelt Retractor: Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: The following procedure prescribes critical repair steps required for correct restraint system operation during a crash. Follow all notes and steps carefully. Failure to follow step instructions may result in incorrect operation of the restraint system and increases the risk of serious personal injury or death in a crash.
- Remove the LH loadspace trim panel. Refer to: Loadspace Trim Panel LH - Long Wheelbase .

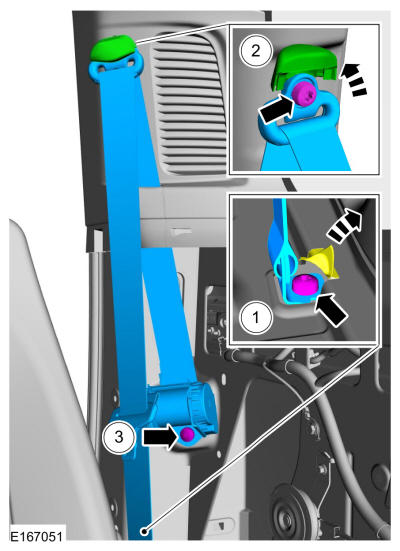

- Remove the safety belt retractor.
- Remove the safety belt retractor anchor bolt.
Torque: 30 lb.ft (40 Nm)
- Lift up the D-ring cover and remove the safety belt retractor D-ring bolt.
Torque: 30 lb.ft (40 Nm)
- Remove the bolt and the safety belt retractor and pretensioner.
Torque: 30 lb.ft (40 Nm)
- Remove the safety belt retractor anchor bolt.
