Front Stabilizer Bar: Installation

To install, reverse the removal procedure.

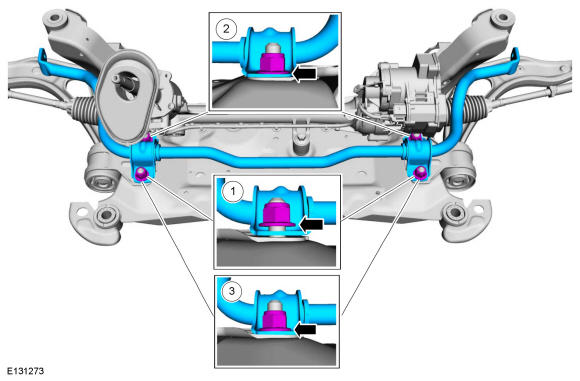

1. Finger tight the nuts.
2. Tighten the nuts.
  Torque:

  Stage 1: 85 lb.ft (115 Nm)

  Stage 2: 90 °
3. Tighten the nuts.
  Torque:

  Stage 1: 85 lb.ft (115 Nm)

  Stage 2: 90 °
Courtesy of FORD MOTOR COMPANY
NOTE: While tightening the subframe bolts, make sure the front subframe does not move.

NOTE: Before tightening the subframe bolts, align the subframe using the special tool and the reference marks made during removal.

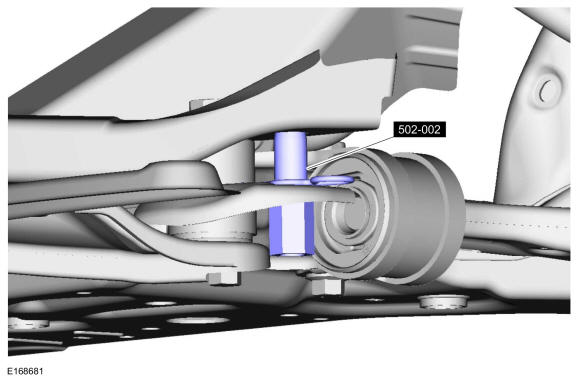

On both sides. Using the special tool tighten the subframe bolts. Remove Special Service Tool: 502-002 (T94P-2100-AH) Alignment Pins, Subframe.

Courtesy of FORD MOTOR COMPANY
Check and if necessary adjust the front toe. Refer to: Front Toe Adjustment .
