Lower Arm: Installation

NOTE: Only tighten the bolts finger tight at this stage.

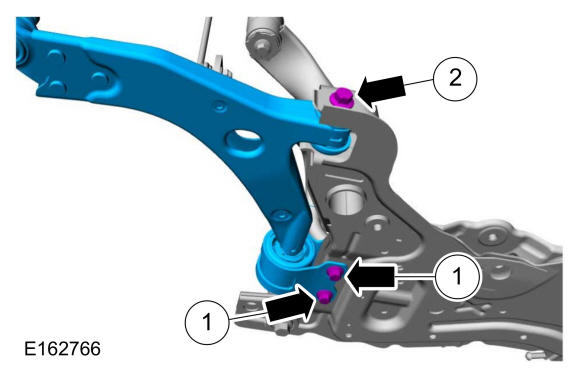

Install the lower arm and the lower arm bolts in sequence shown.

Courtesy of FORD MOTOR COMPANY

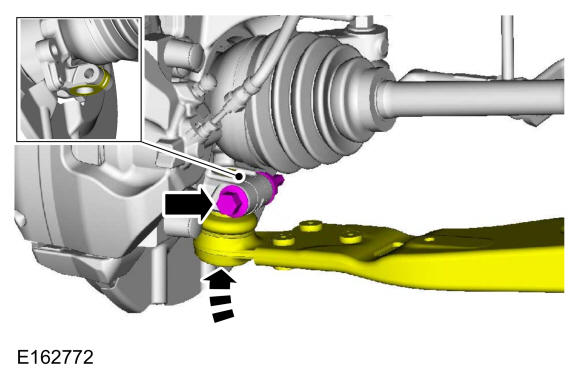

Position the ball joint seal and connect the lower arm. Install the new wheel knuckle bolt.
Torque: 61 lb.ft (83 Nm)

Courtesy of FORD MOTOR COMPANY
Install the wheel and tire. Refer to: Wheel and Tire .

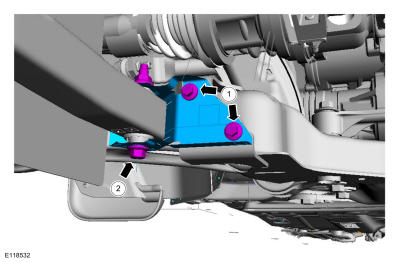

1. Finger tight
2. Tighten the nuts.
  Torque:

  Stage 1: 85 lb.ft (115 Nm)

  Stage 2: 90 °
3. Tighten the nuts.
  Torque:

  Stage 1: 85 lb.ft (115 Nm)

  Stage 2: 90 °
Courtesy of FORD MOTOR COMPANY

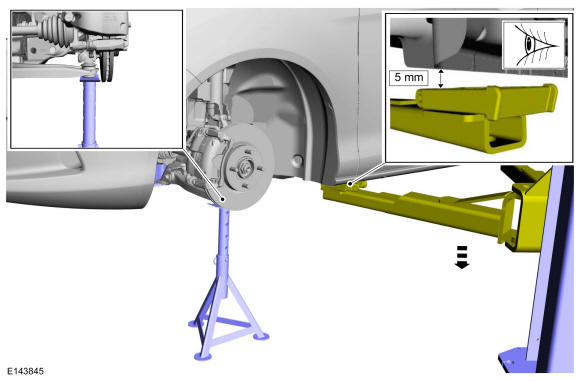

Install the vehicle/axle stands to support the suspension at curb height. Install the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY
NOTE: Tighten the suspension bushing fasteners with the suspension loaded or with the weight of the vehicle resting on the wheels and tires, otherwise incorrect clamp load and bushing damage may occur.

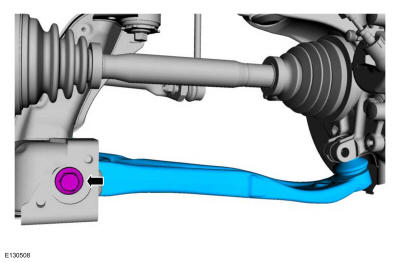

Tighten the front lower arm-to-frame bolt.

Torque:

Stage 1: 111 lb.ft (150 Nm)

Stage 2: 90 °

Courtesy of FORD MOTOR COMPANY
Remove the vehicle/axle stands. Remove the General Equipment: Vehicle/Axle Stands

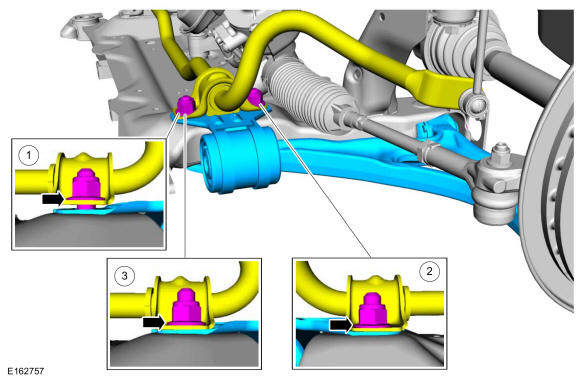

If equipped, install the bracket and tighten the bolts as sequence shown.
Torque:

1:: 18 lb.ft (25 Nm)

2:: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
If equipped, install the underbody shield and the retainers.

Courtesy of FORD MOTOR COMPANY
Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
Check and if necessary adjust front toe. Refer to: Front Toe Adjustment .
