Ride Height Measurement

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Special Tool(s) / General Equipment

Check

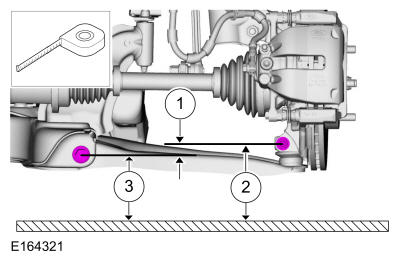

Ride Height Measurement - Front

1. 1. Ride height = 2-3
   2. Measurement 2
   3. Measurement 3 Use the General Equipment: Surface Gauge

   Courtesy of FORD MOTOR COMPANY

2. With the surface gauge positioned on a flat, level surface, record the measurement of the surface gauge position (measurements 2 and 3). Use the General Equipment: Surface Gauge

   Courtesy of FORD MOTOR COMPANY

3. Subtract measurement 2 from measurement 3 to obtain the front ride height.

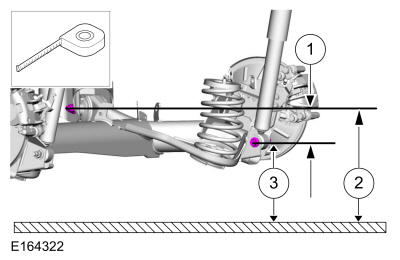

   Ride Height Measurement - Rear

   NOTE: Make sure that the vehicle is positioned on a flat, level surface and the tires are inflated to the correct pressure. Vehicle should have a full tank of fuel.
4. 1. Ride height = 2-3
   2. Measurement 2
   3. Measurement 3 Use the General Equipment: Surface Gauge

   Courtesy of FORD MOTOR COMPANY

5. Measure the distance between the flat level surface and the forward lower arm inboard bolt (measurement 2.).
6. Measure the distance between the flat level surface and the center of the forward lower arm outboard bolt (measurement 3.).
7. Subtract measurement 3 from measurement 2 to obtain the rear ride height.
