Transmission Range (TR) Sensor: Removal

Remove the main control cover. Refer to: Main Control Cover .

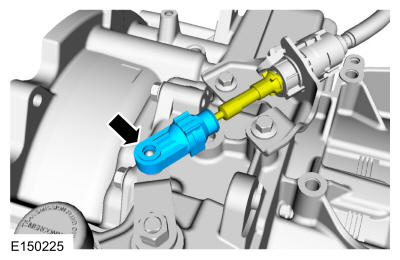

Disconnect the selector lever cable end from the manual control lever.

Courtesy of FORD MOTOR COMPANY

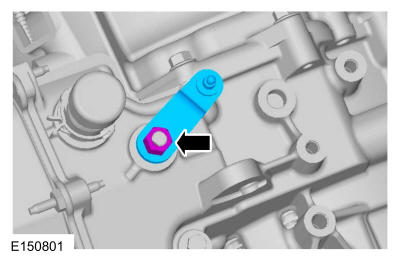

Remove the manual control lever nut and the manual control lever.

Courtesy of FORD MOTOR COMPANY

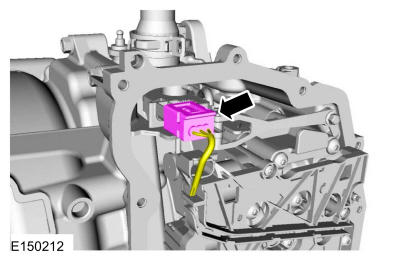

Disconnect the TR sensor electrical connector.

Courtesy of FORD MOTOR COMPANY

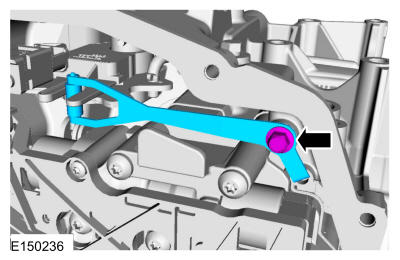

Remove the TR sensor detent spring bolt and the TR sensor detent spring.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not drive the manual control shaft pin through the manual control shaft. The manual control shaft pin will contact the transmission case causing damage to the transmission case.

NOTE: If the roll pin remover does not pull the roll pin far enough to clear the manual shaft, the roll pin can be pulled from the TR sensor with a pair of locking pliers.

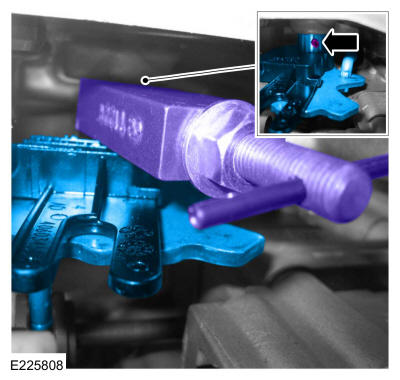

Using the roll pin remover, remove and discard the TR sensor roll pin.

Courtesy of FORD MOTOR COMPANY

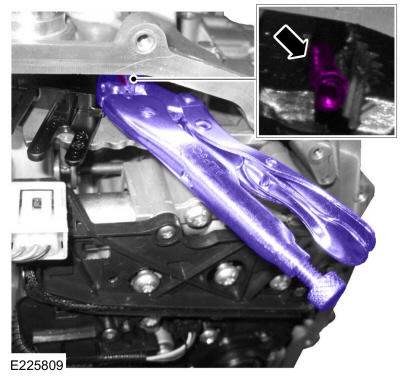

If the roll pin did not clear the manual shaft by pulling it with a roll pin remover, remove the roll pin from the TR sensor with a pair of locking pliers. Use the General Equipment: Locking Pliers

Courtesy of FORD MOTOR COMPANY

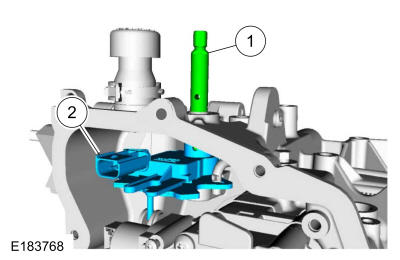

Remove the TR sensor in the following sequence.
1. Hold the TR sensor in place and slide the manual shaft outward until the manual shaft is out of the transmission case.
2. Remove the TR sensor from the transmission, leaving the park pawl actuating rod attached to the TR sensor.

Courtesy of FORD MOTOR COMPANY
