Fuel Conditioning Module (Transit)

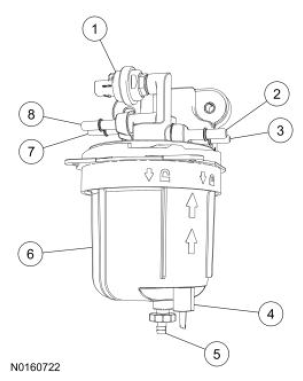

Fig 1: Fuel Conditioning Module Components Location (Transit)

Courtesy of FORD MOTOR CO.

Item	Number	Description
1	-	Fuel Delivery Pressure Switch
2	-	Fuel Supply Line To The High Pressure Fuel Injection
3	-	Fuel Return Line From The High Pressure Fuel Injection Pump
4	-	Water In Fuel (WIF) Sensor
5	-	Fuel Drain Valve
6	-	Fuel Filter Cover
7	-	Fuel Return Line To The Fuel Cooler And Fuel Tank
8	-	Fuel Supply Line From The Fuel Tank
