All Others

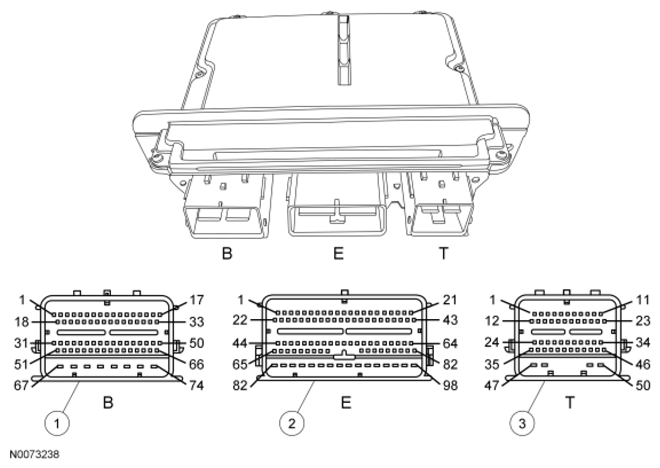

Fig 1: Powertrain Control Module Connectors Location (Others)
G11852718Courtesy of FORD MOTOR CO.
Item Number Description
1 - B Connector
2 - E Connector
3 - T Connector
