Powertrain Control Module (PCM) And Location: Transit

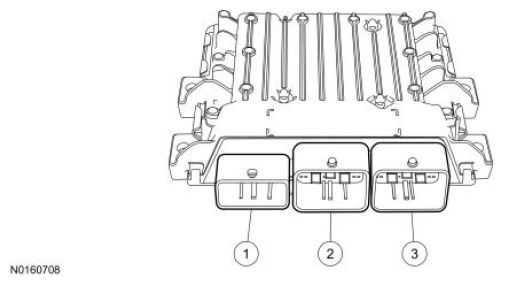

Fig 1: Powertrain Control Module Connectors Location (Transit)

Courtesy of FORD MOTOR CO.

Item	Number	Description
1	-	E Connector
2	-	T Connector
3	-	B Connector
