Electronic Engine Controls - Component Location

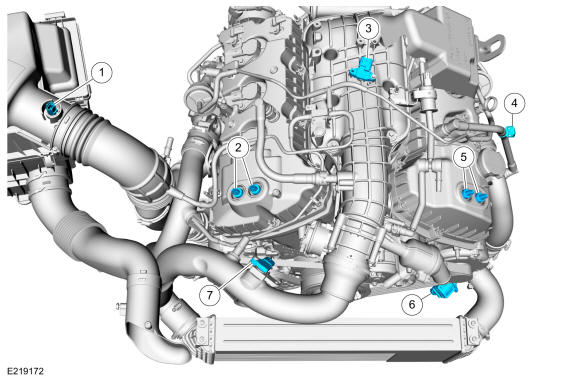

Electronic Engine Controls- Front
| Item | Description |
|---|---|
| 1 | IAT sensor |
| 2 | RH VCT oil control solenoid |
| 3 | MAPT sensor |
| 4 | Crankcase pressure sensor |
| 5 | LH VCT oil control solenoid |
| 6 | Turbocharger By-Pass Valve |
| 7 | Turbocharger Boost Pressure and Charge Air Temperature Sensor |

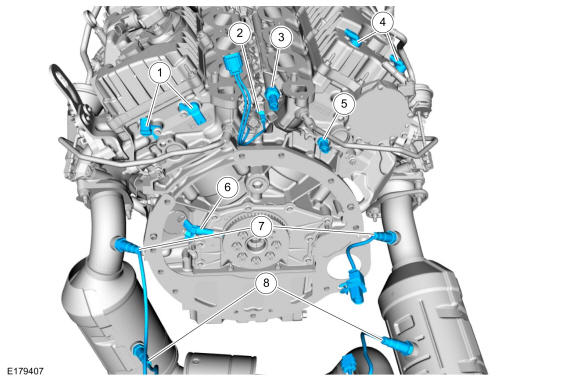

Electronic Engine Controls - Rear
| Item | Description |
|---|---|
| 1 | LH CMP sensor |
| 2 | KS |
| 3 | FRP sensor |
| 4 | RH CMP sensor |
| 5 | CHT sensor |
| 6 | CKP sensor |
| 7 | HO2S |
| 8 | Catalyst monitor sensor |

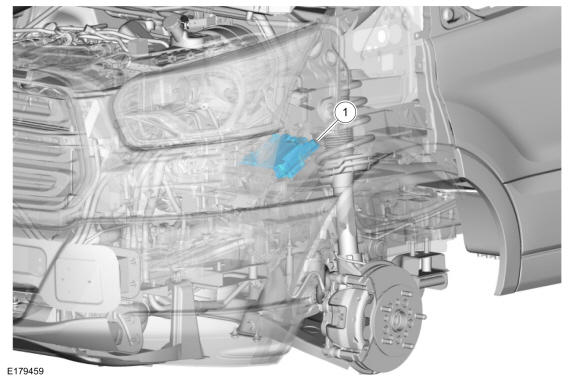

Powertrain Control Module (PCM)
| Item | Description |
|---|---|
| 1 | PCM |
