Fuel Pump Driver Module (FPDM): Installation

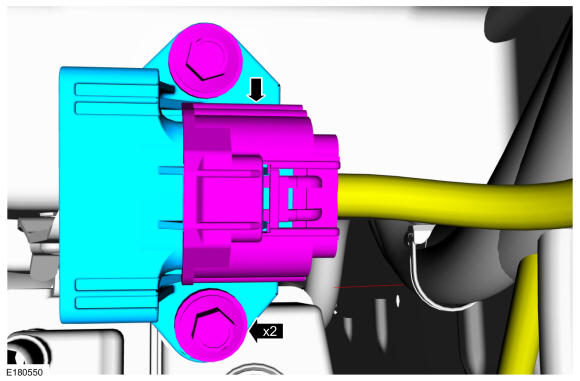

Gas engine

• 1.

  Install the FPDM and the FPDM mounting bolts.

  Torque: 93 lb.in (10.5 Nm)

Courtesy of FORD MOTOR COMPANY

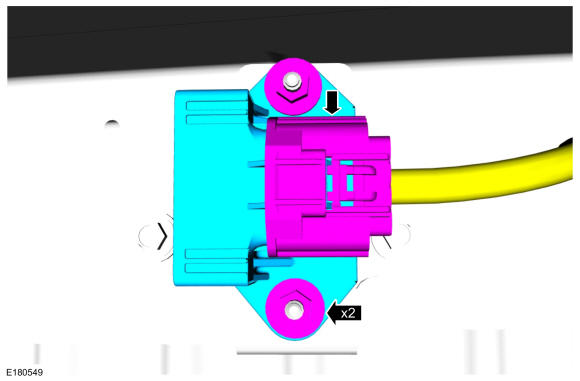

Diesel engine

• 2.

  Install the FPDM and the FPDM mounting nuts.

  Torque: 93 lb.in (10.5 Nm)

Courtesy of FORD MOTOR COMPANY
