Passenger Door Window Control Switch

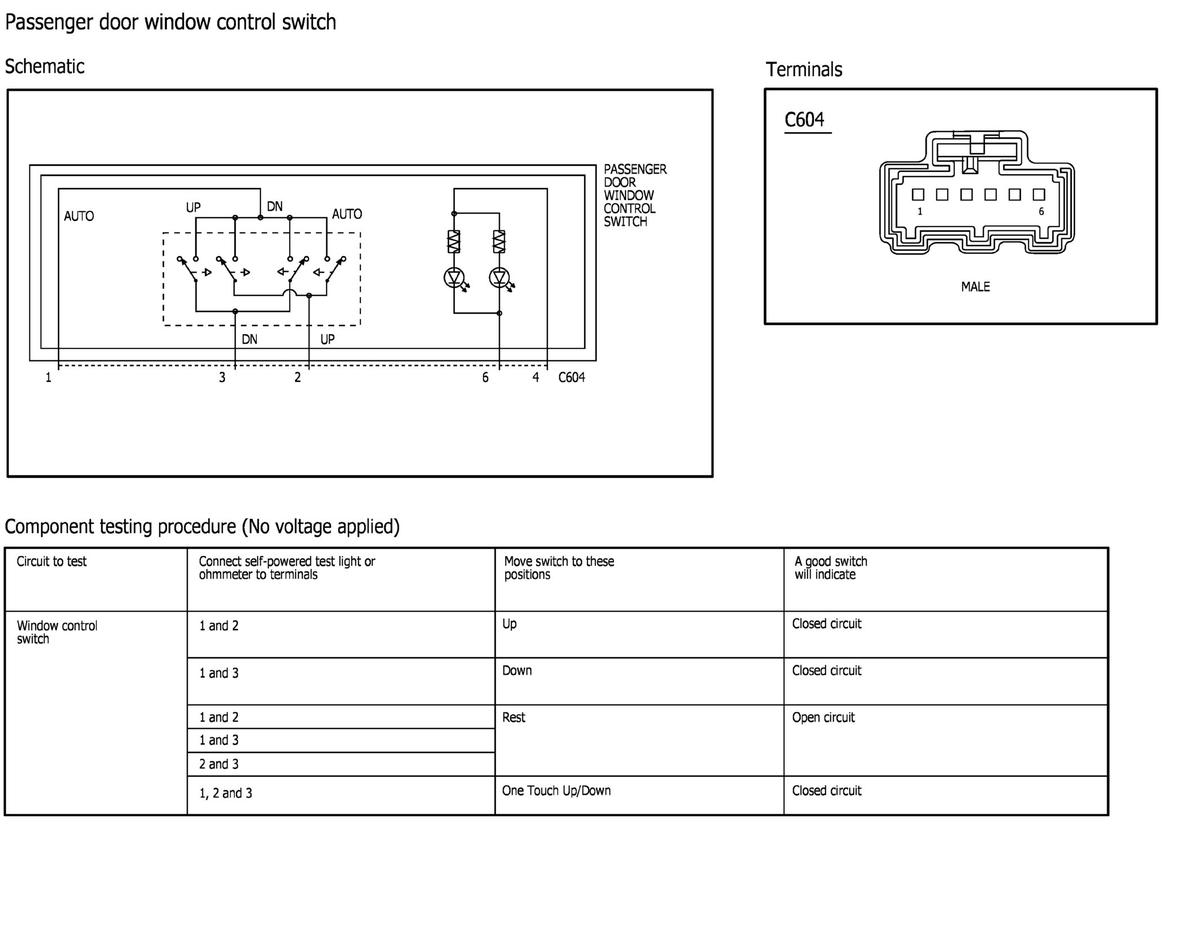

Fig 1: Passenger Door Window Control Switch
GFDWR1782Courtesy of FORD MOTOR COMPANY
