Rear Door Window Control Switch

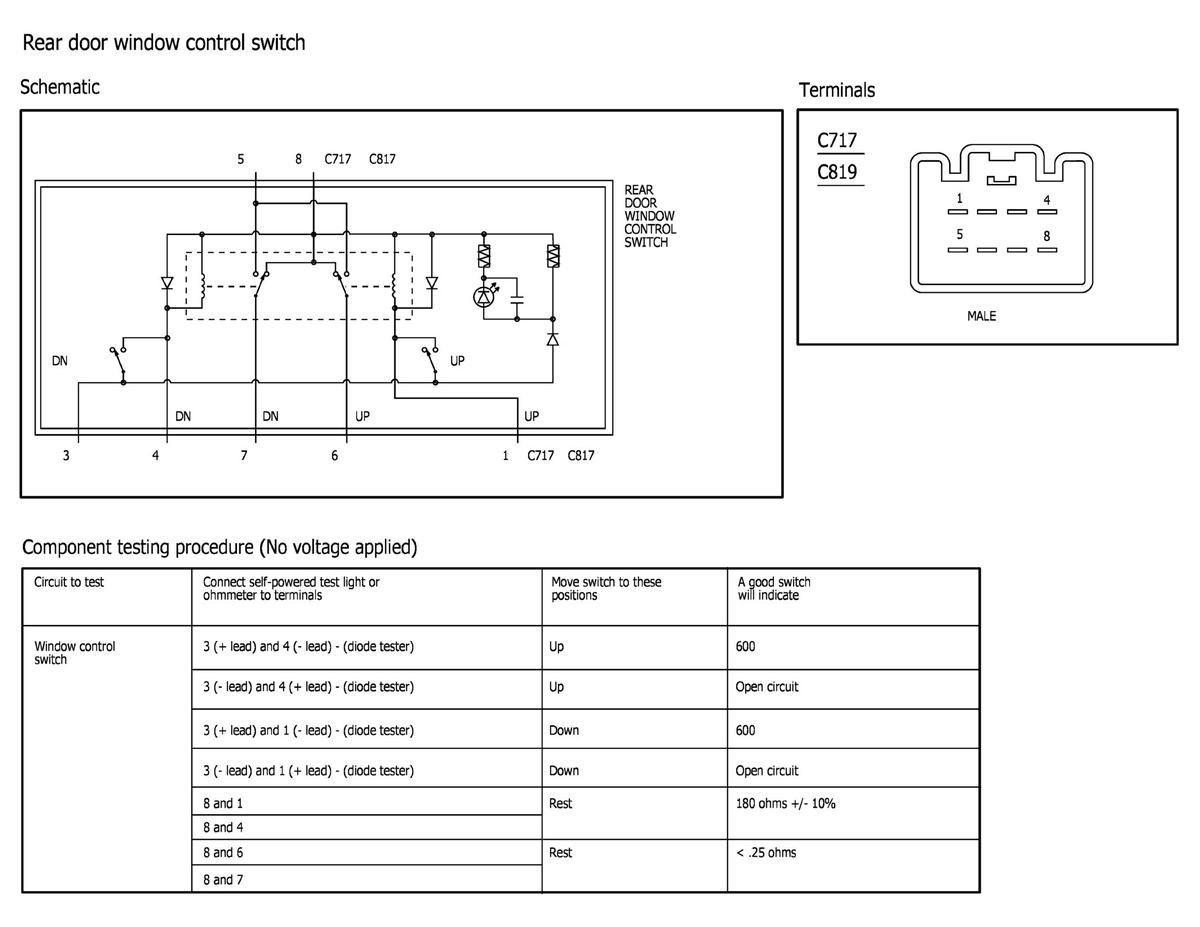

Fig 1: Rear Door Window Control Switch
GFDWR1783Courtesy of FORD MOTOR COMPANY
