Component Testing: Relays

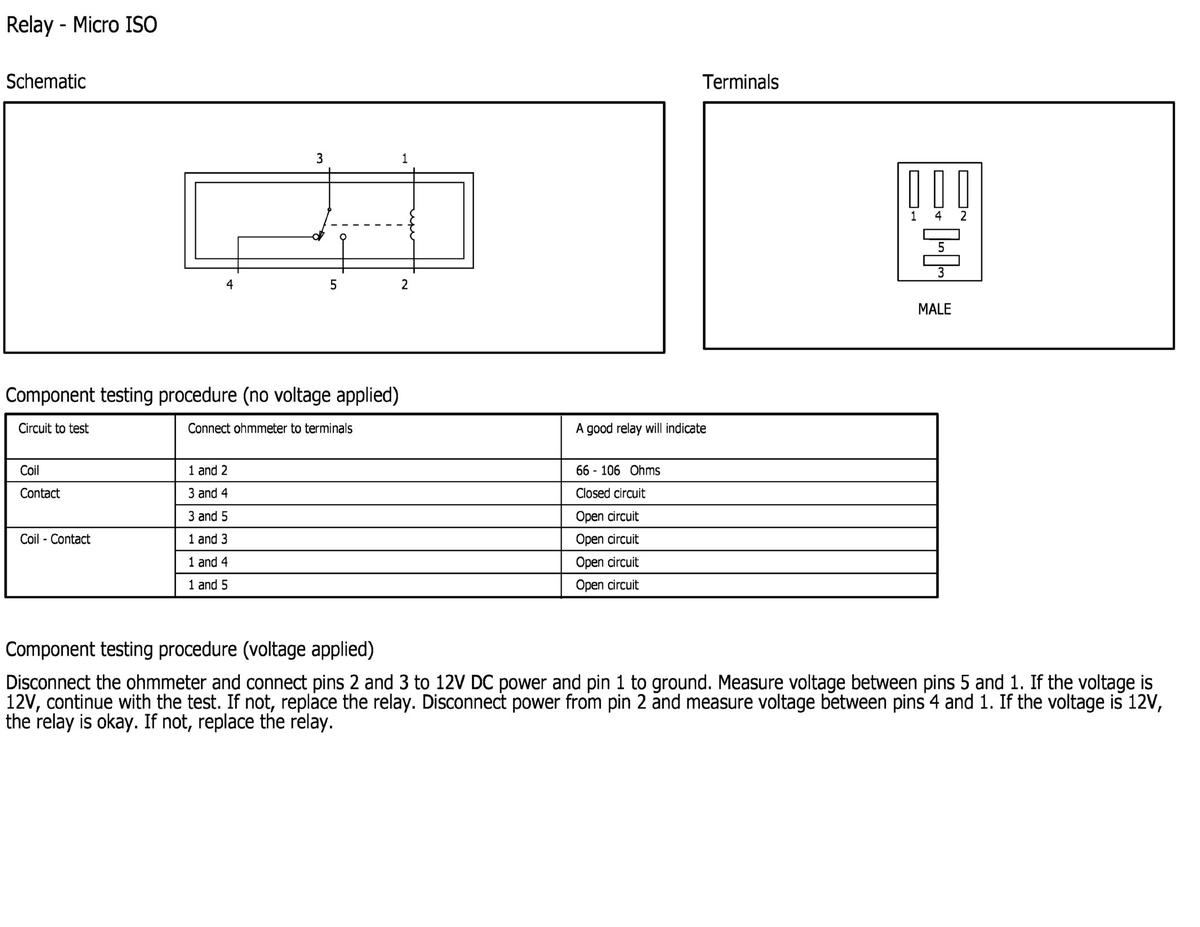

Fig 1: Relay - Micro ISO
GFDWR1774Courtesy of FORD MOTOR COMPANY

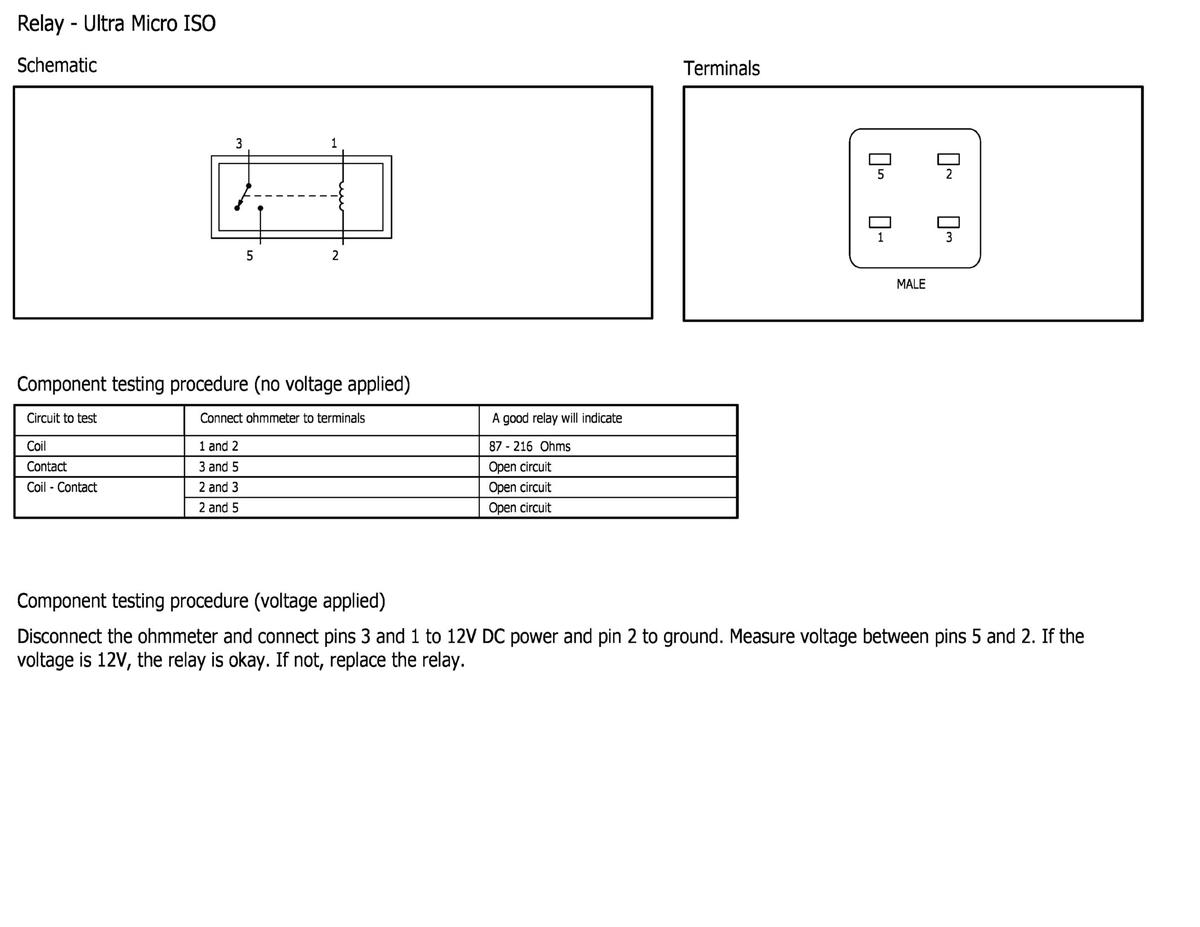

Fig 2: Relay - Ultra Micro ISO
GFDWR1775Courtesy of FORD MOTOR COMPANY

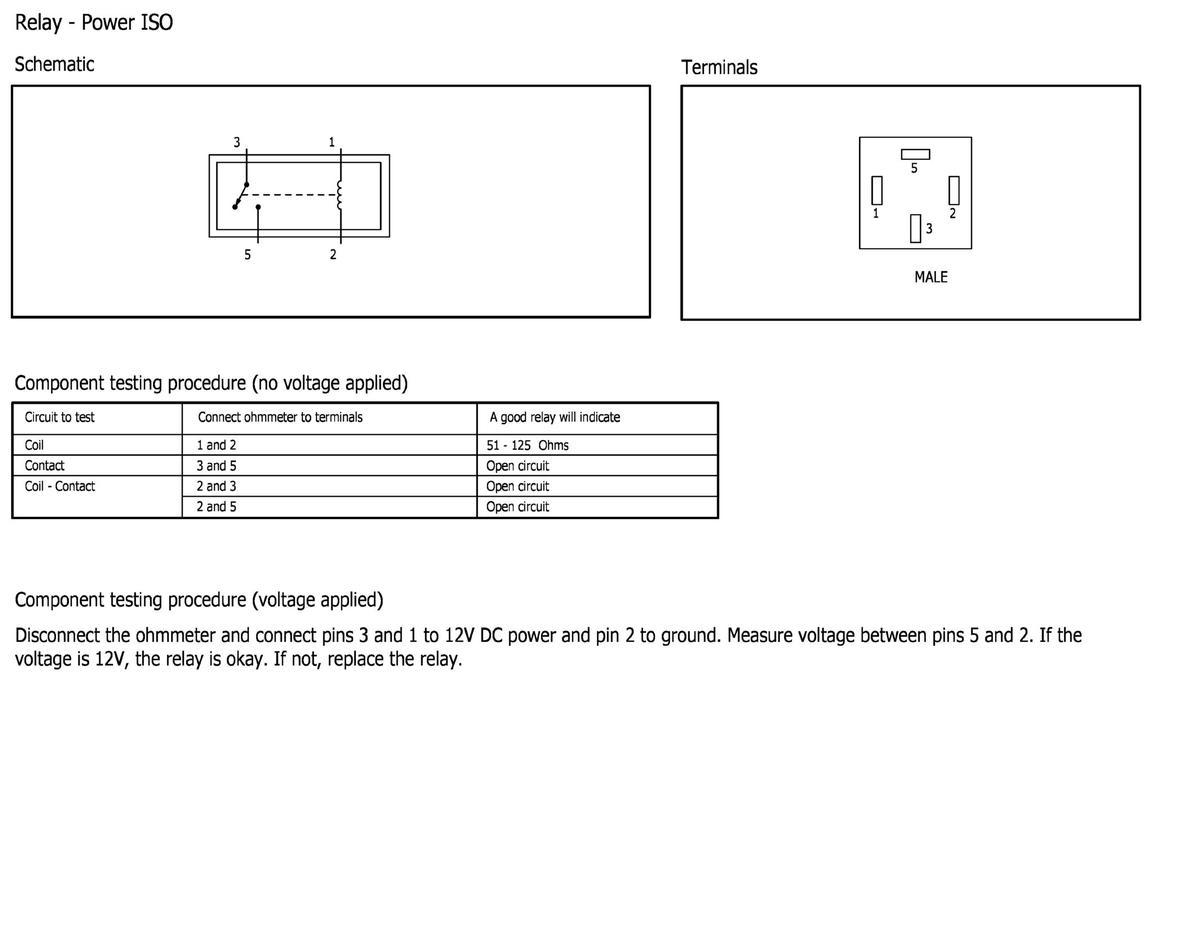

Fig 3: Relay - Power ISO
GFDWR1776Courtesy of FORD MOTOR COMPANY
