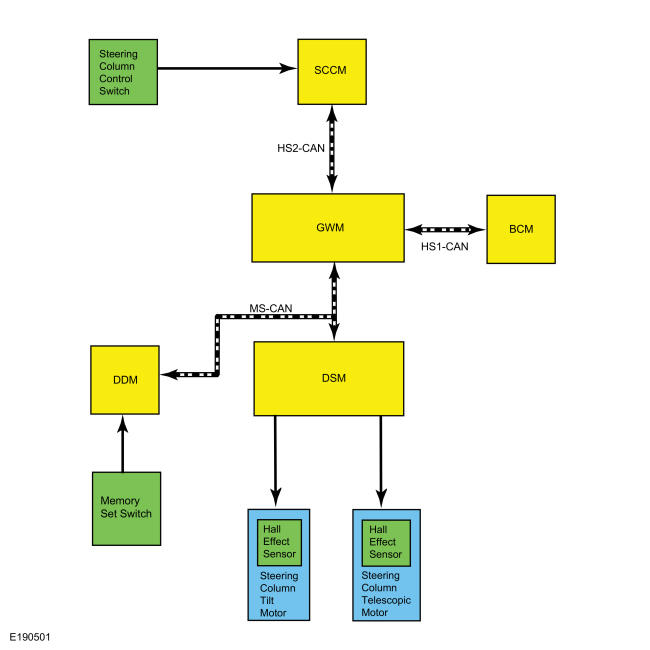

System Diagram

GFD277387Courtesy of FORD MOTOR COMPANY
GFD277388Courtesy of FORD MOTOR COMPANY

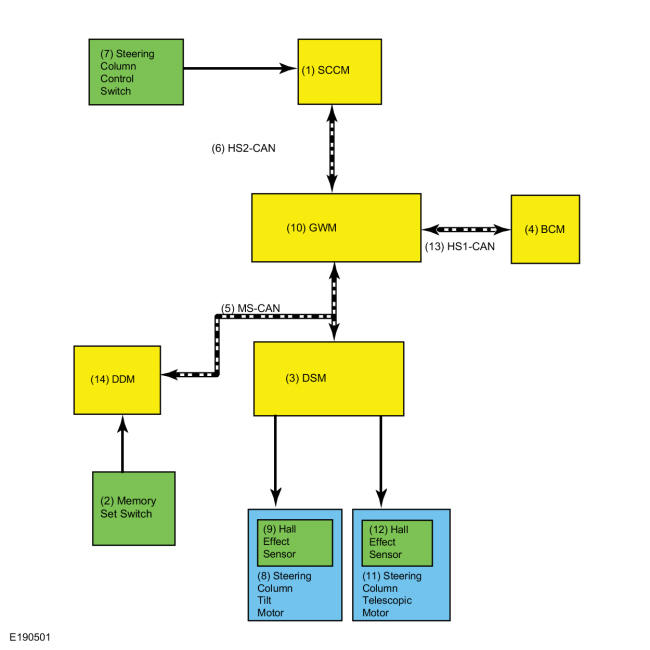

Item Description
1 DDM
2 SCCM
3 Memory Set Switch
4 DSM
5 BCM
6 MS-CAN
7 HS2-CAN
8 Steering Column Control Switch
9 Steering Column Tilt Motor
10 Hall Effect Sensor
11 GWM
12 Steering Column Telescopic Motor
13 Hall Effect Sensor
14 HS1-CAN
