Heated Front Seat Module: Removal
WARNING: This page is about a different car, the 2019 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Driver seat shown, passenger seat similair.

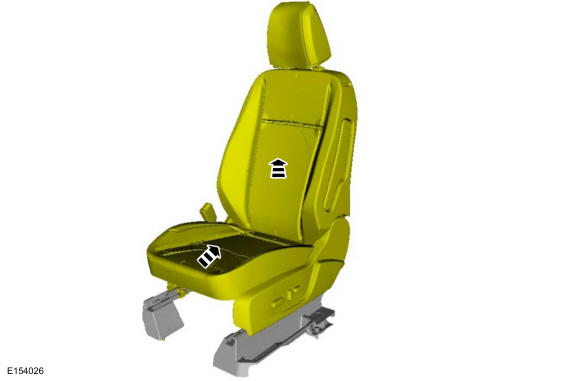

- Position the driver front seat to the full rearward and full upward position.
 Courtesy of FORD MOTOR COMPANY
|

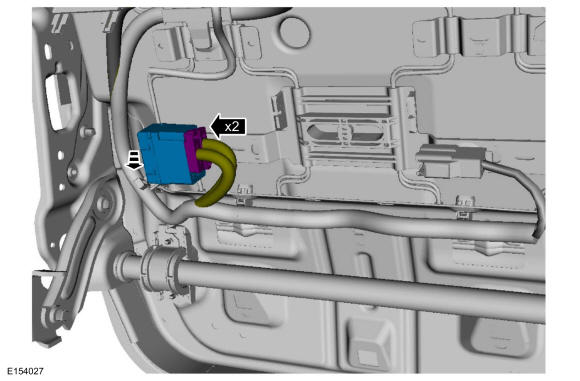

- Disconnect the electrical connectors and remove the heated front seat module.
 Courtesy of FORD MOTOR COMPANY
|
