Front Head Restraint Guide Sleeve: Removal

NOTE: Typical head restraint guide sleeve shown, others similar.

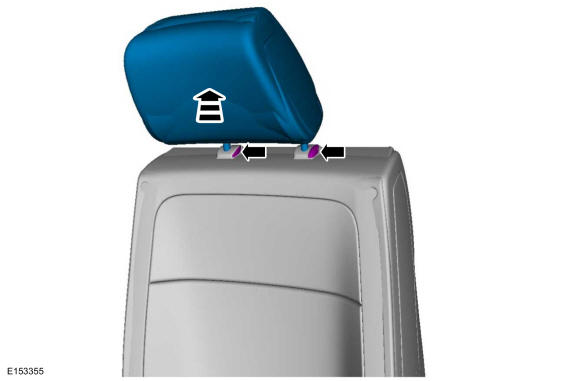

Release the locking tabs and remove the head restraint.

Courtesy of FORD MOTOR COMPANY
NOTE: Follow the unique instructions or graphic for this step in the installation.

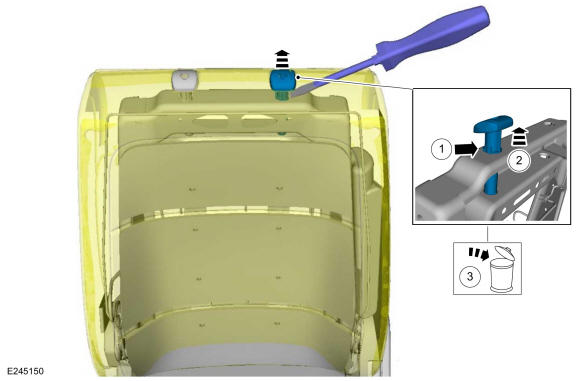

Remove the head restraint guide sleeves.
1. Release the locking tabs. Use the General Equipment: Flat Headed Screw Driver
2. Remove the head restraint guide sleeves.
3. Discard the head restraint guide sleeves.

Courtesy of FORD MOTOR COMPANY
