Overhead Console: Removal
WARNING: This page is about a different car, the 2017 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

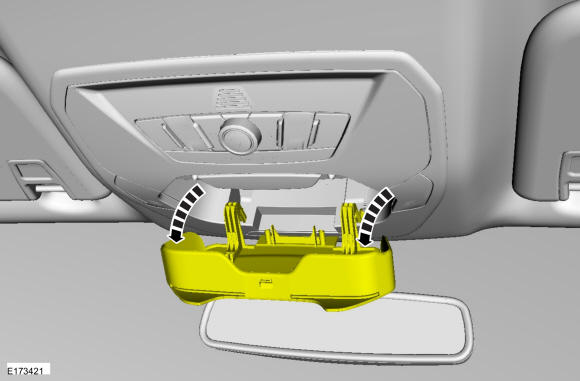

- Open the sunglass bin.
-
NOTE: Sunglass bin shown removed for clarity.

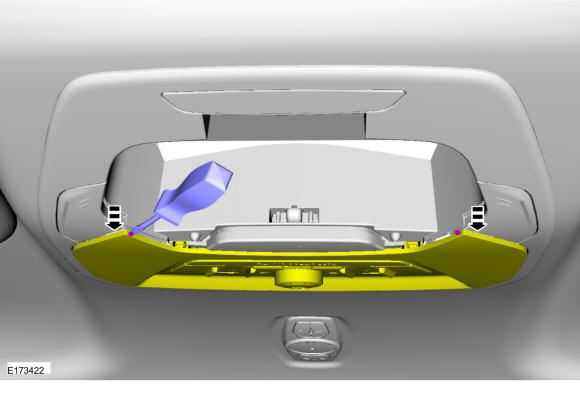

Using a suitable tool pry both corners of the switch bezel down.

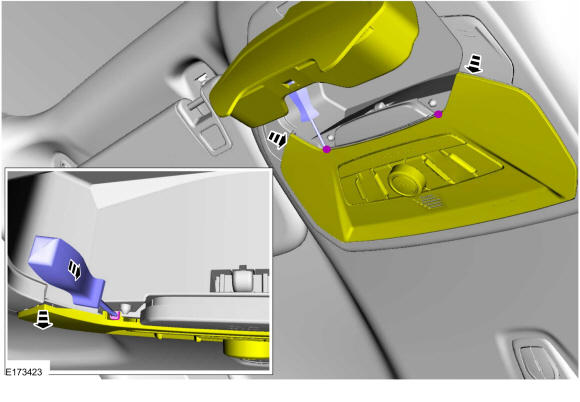

- Using a suitable tool push inward on both sides on the switch panel inner tabs to release the switch panel.
-
NOTE: High level overhead console shown.

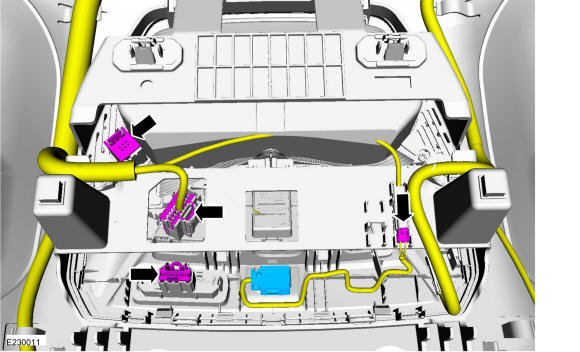

Disconnect the electrical connectors.

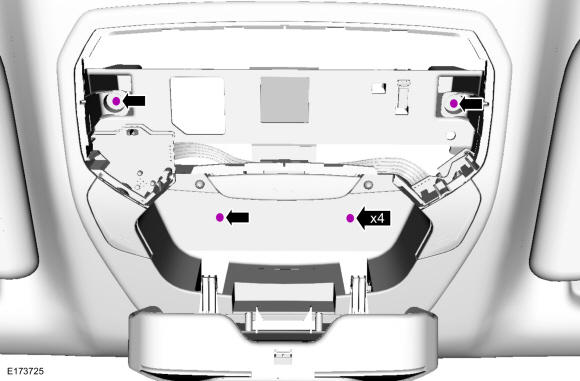

- If equipped, remove the 4 torx screws.

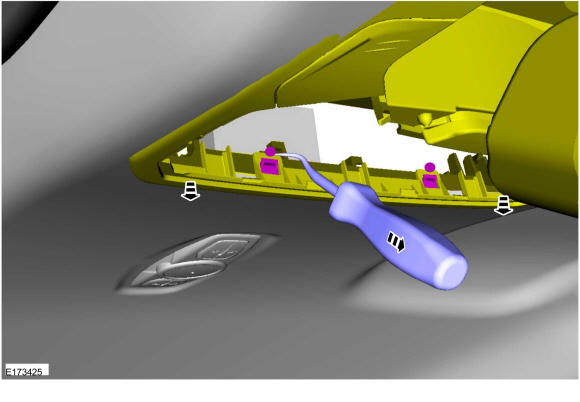

- Using a suitable tool release the snap tabs facing the rear of vehicle on both sides.

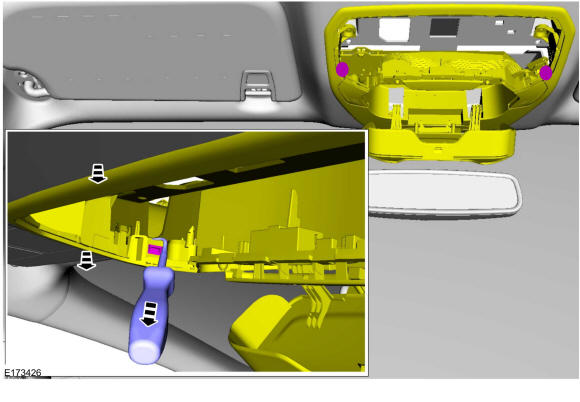

- Using a suitable tool release the side snap tabs on both sides.

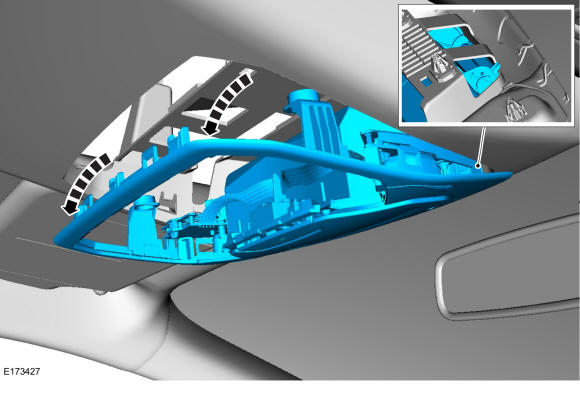

- Rotate the overhead console assembly downward and pull rearward to release the clip tabs and remove the overhead console assembly.
