Component Location Views

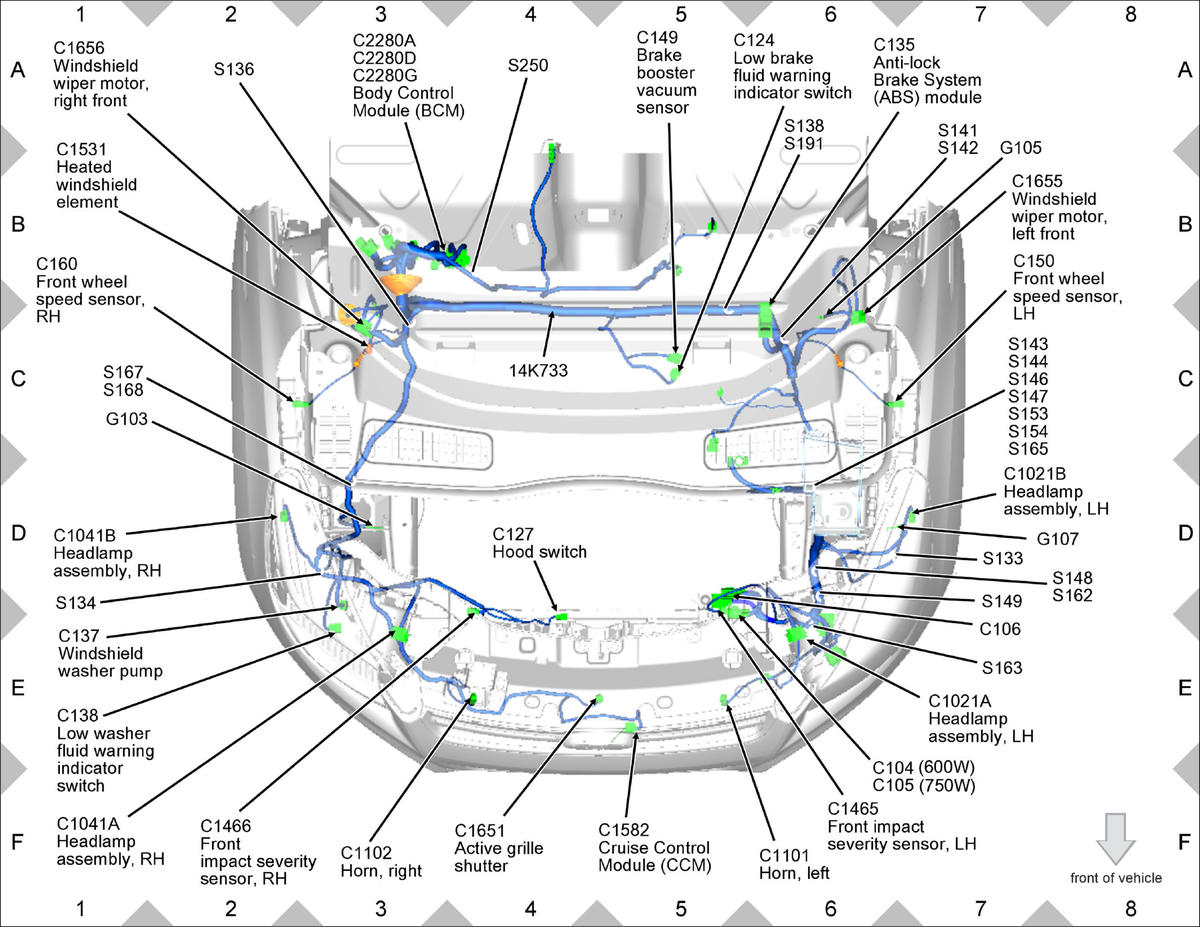

GFDW96714Courtesy of FORD MOTOR COMPANY

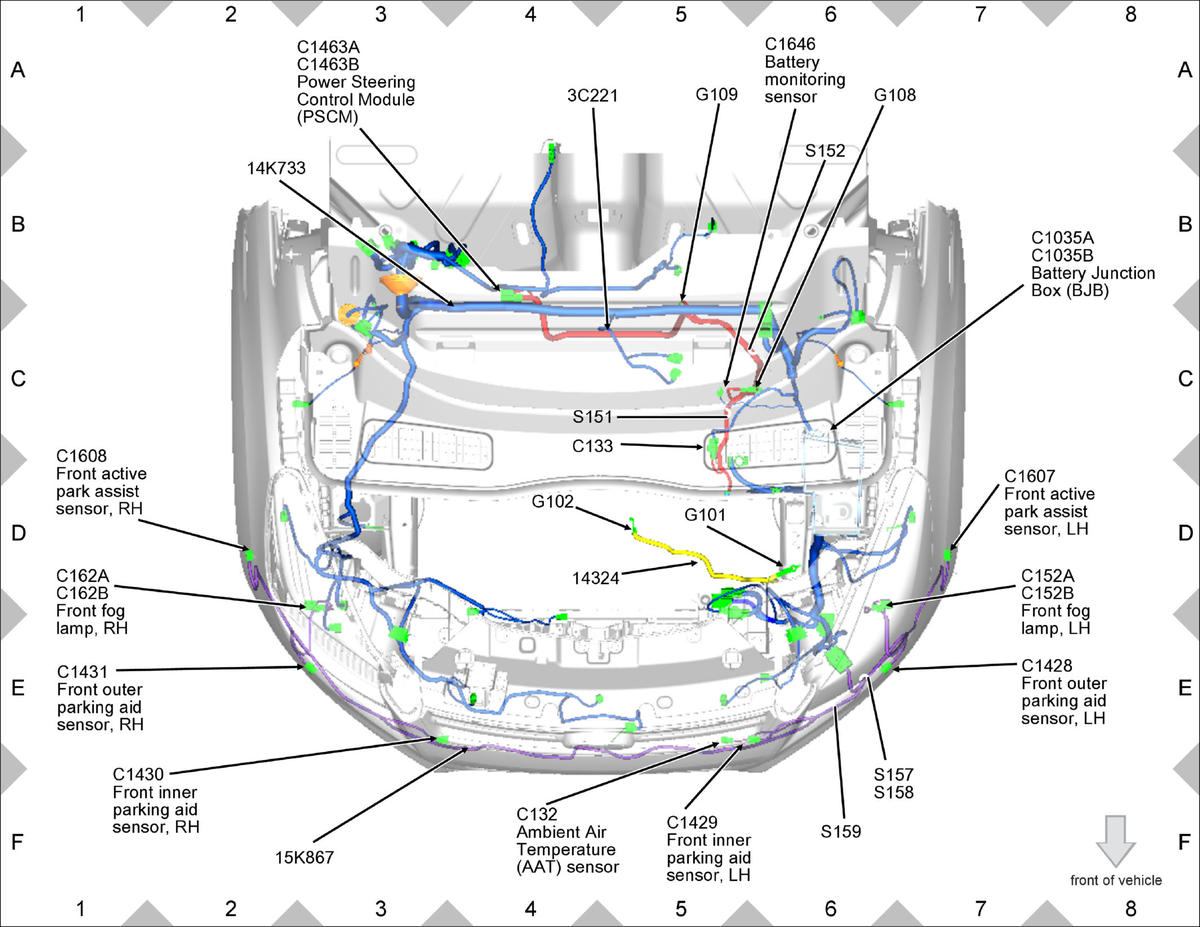

GFDW96715Courtesy of FORD MOTOR COMPANY

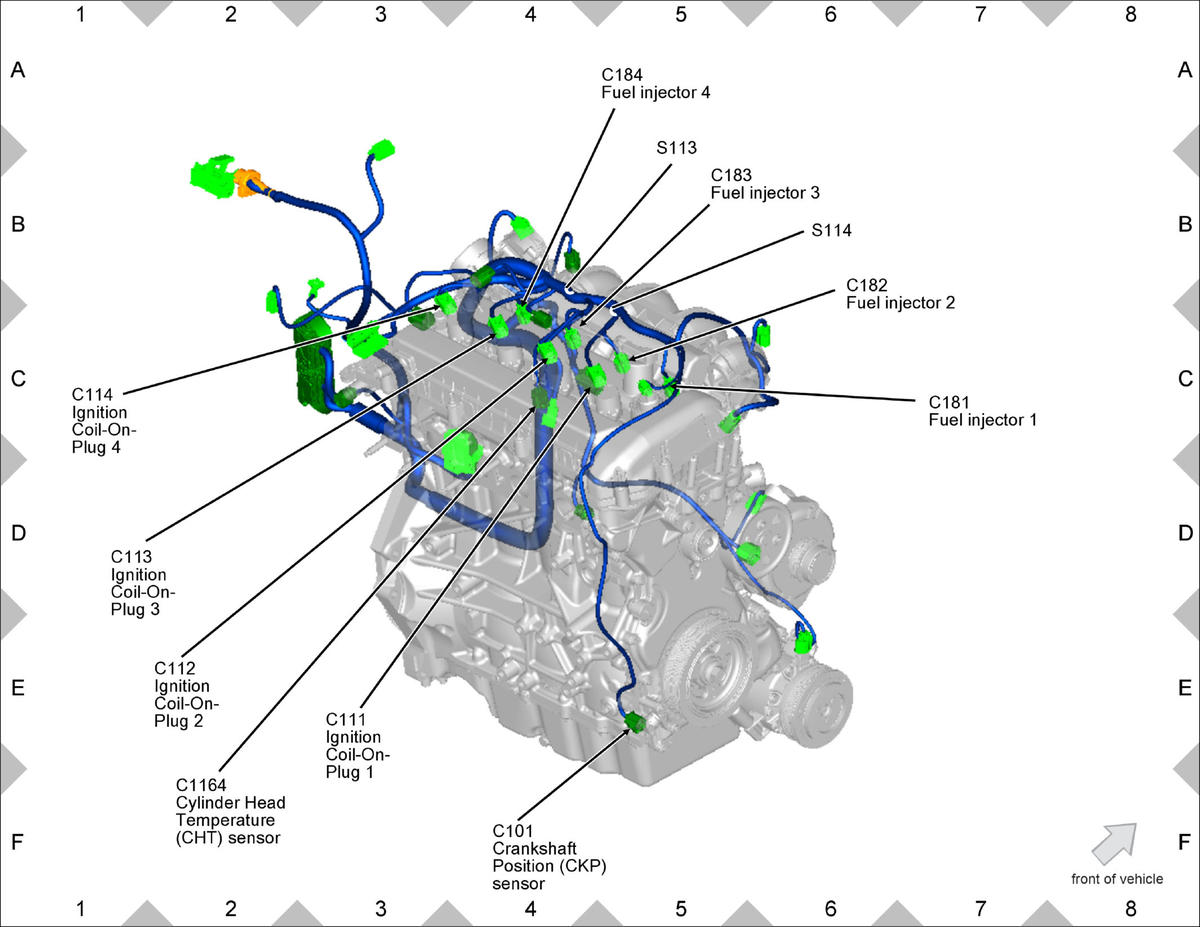

GFDW96716Courtesy of FORD MOTOR COMPANY

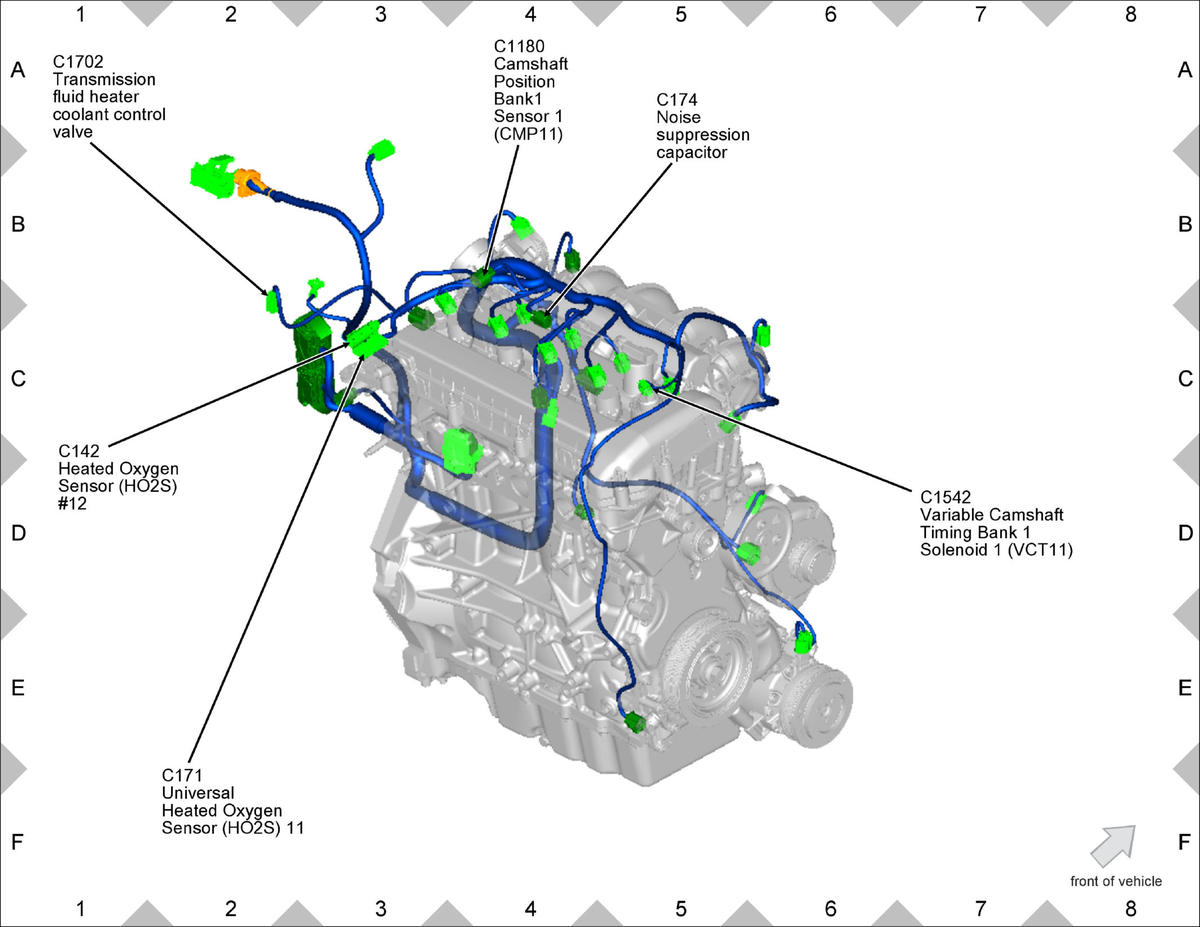

GFDW96717Courtesy of FORD MOTOR COMPANY

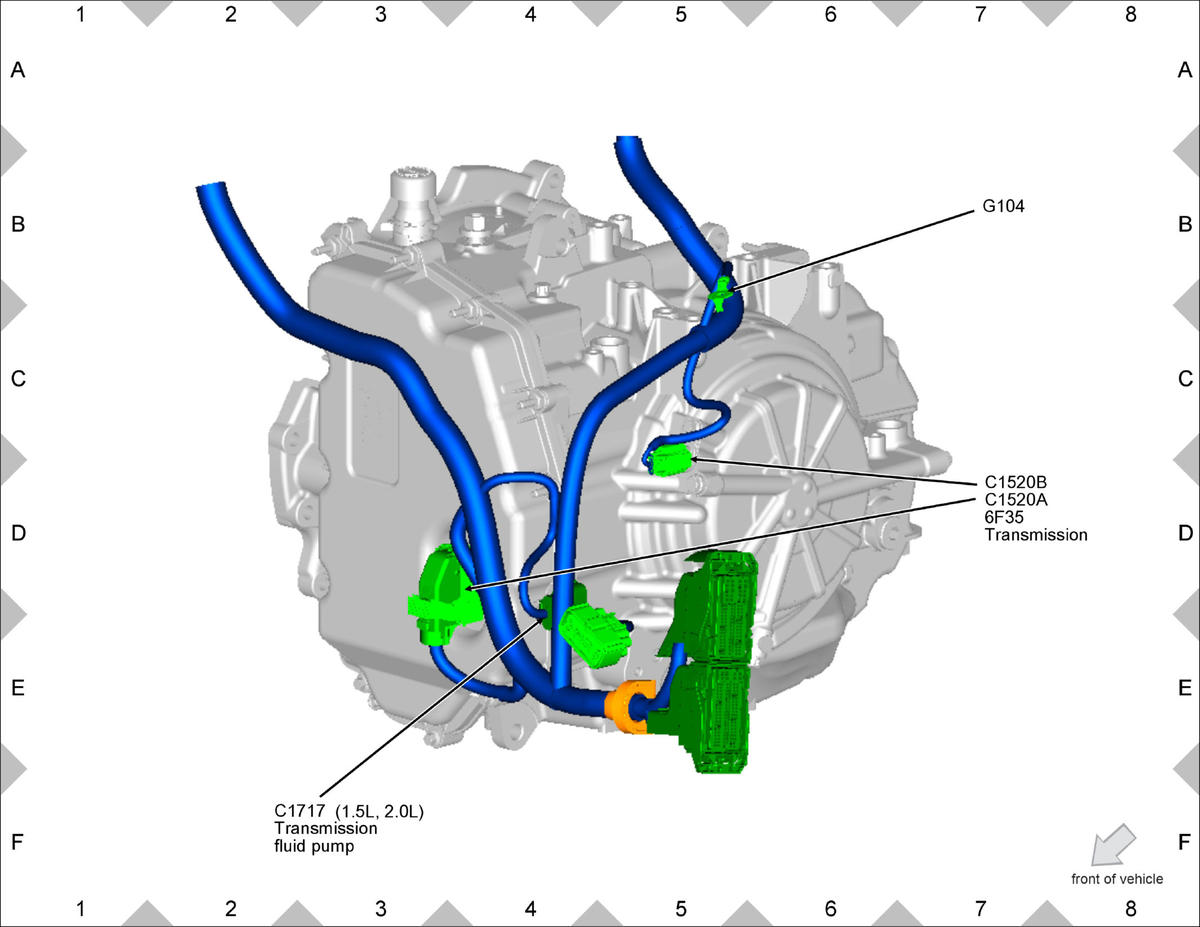

GFDW96718Courtesy of FORD MOTOR COMPANY

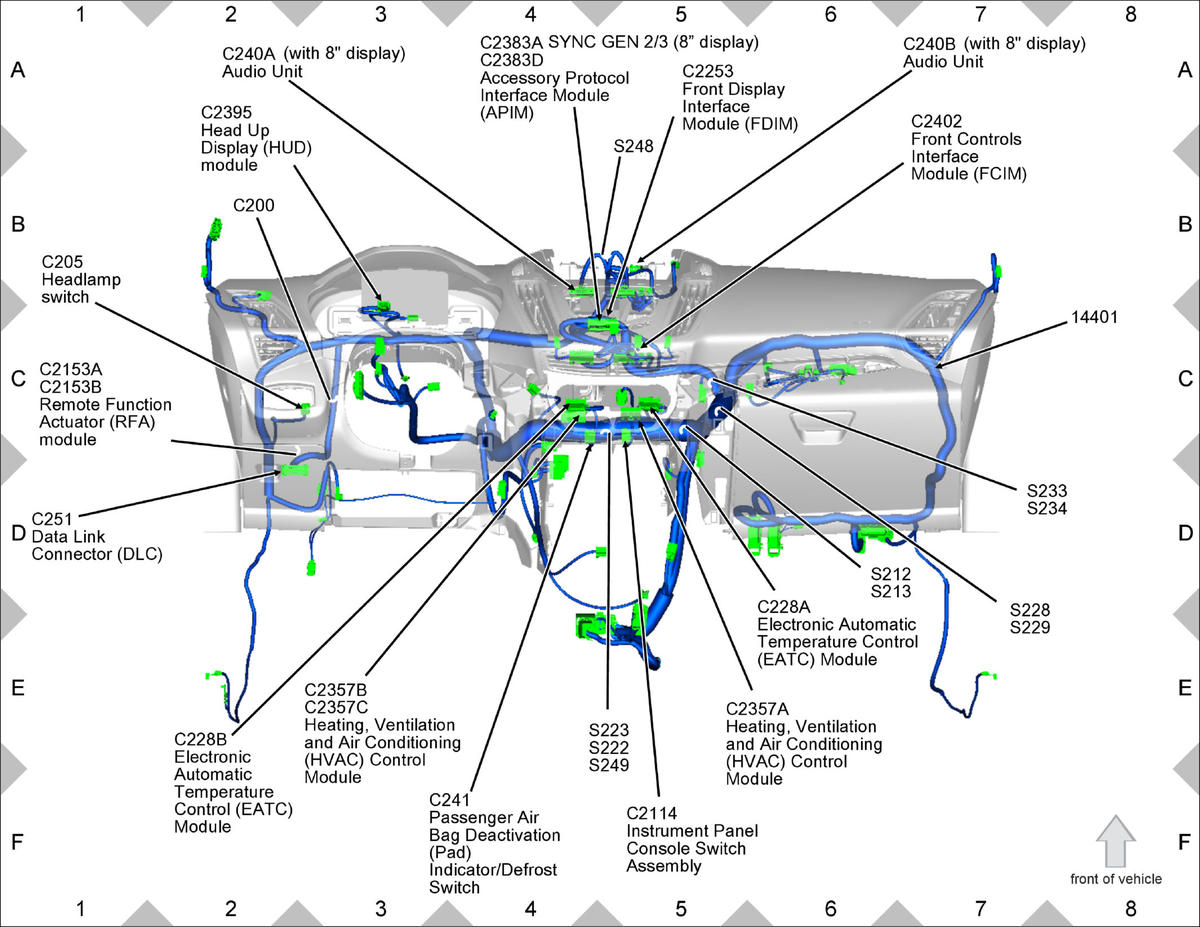

GFDW96719Courtesy of FORD MOTOR COMPANY

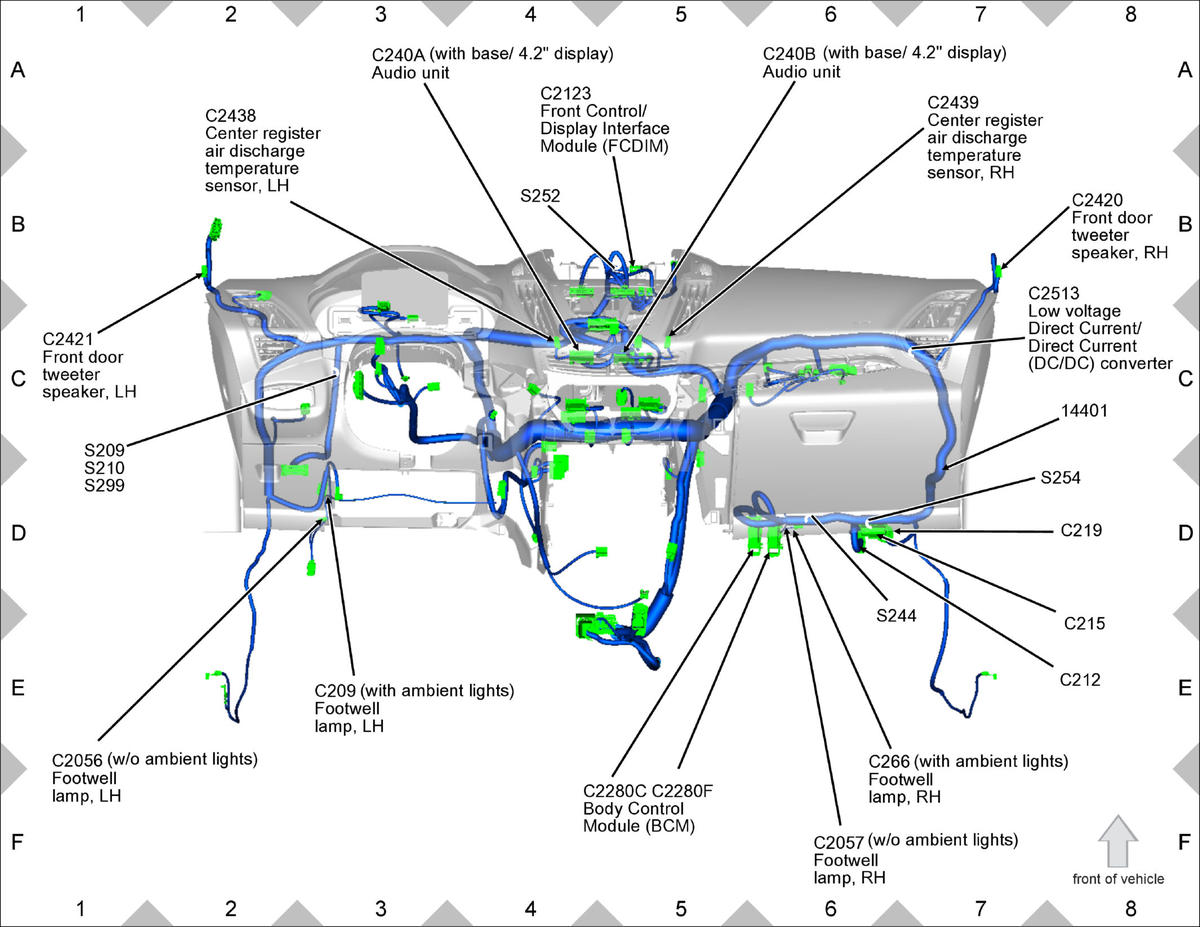

GFDW96720Courtesy of FORD MOTOR COMPANY

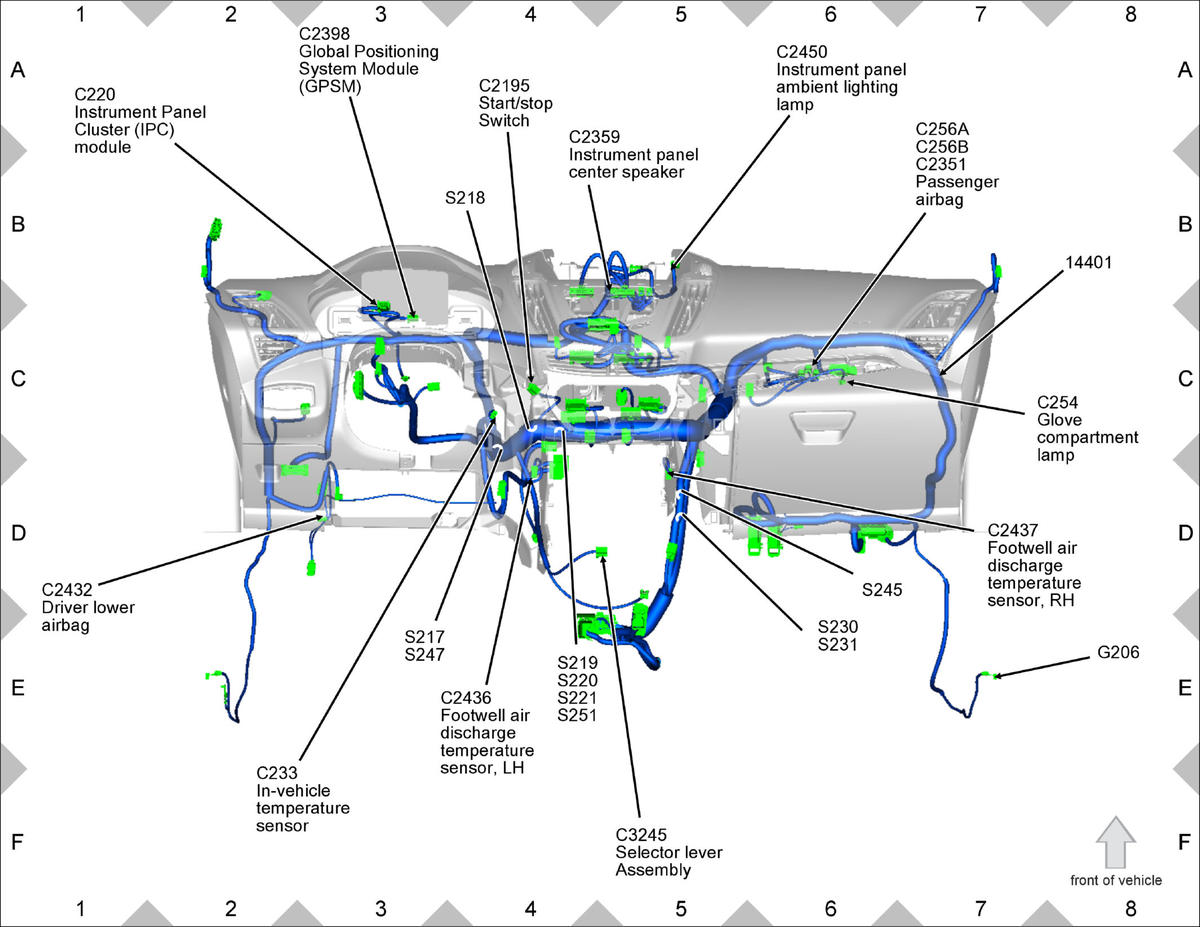

GFDW96721Courtesy of FORD MOTOR COMPANY

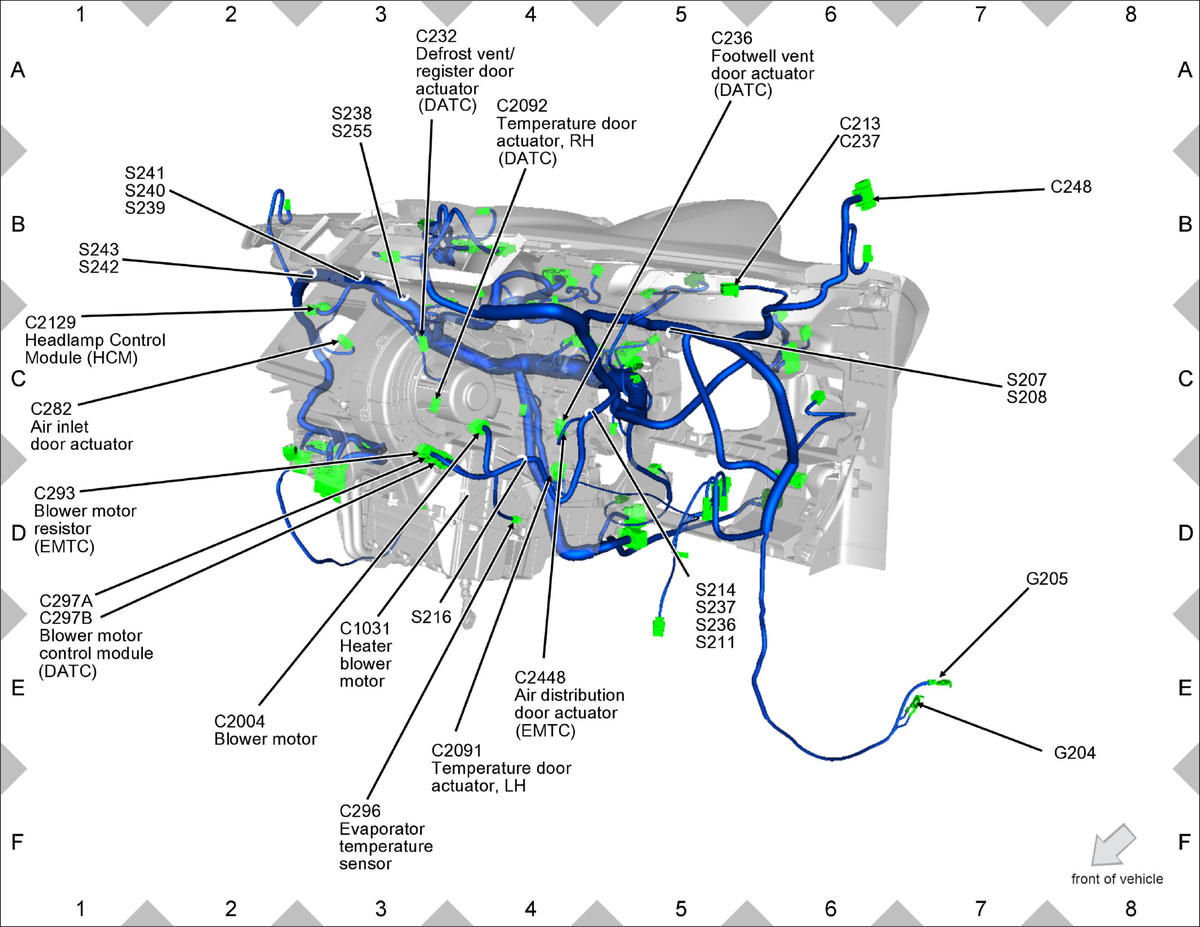

GFDW96722Courtesy of FORD MOTOR COMPANY

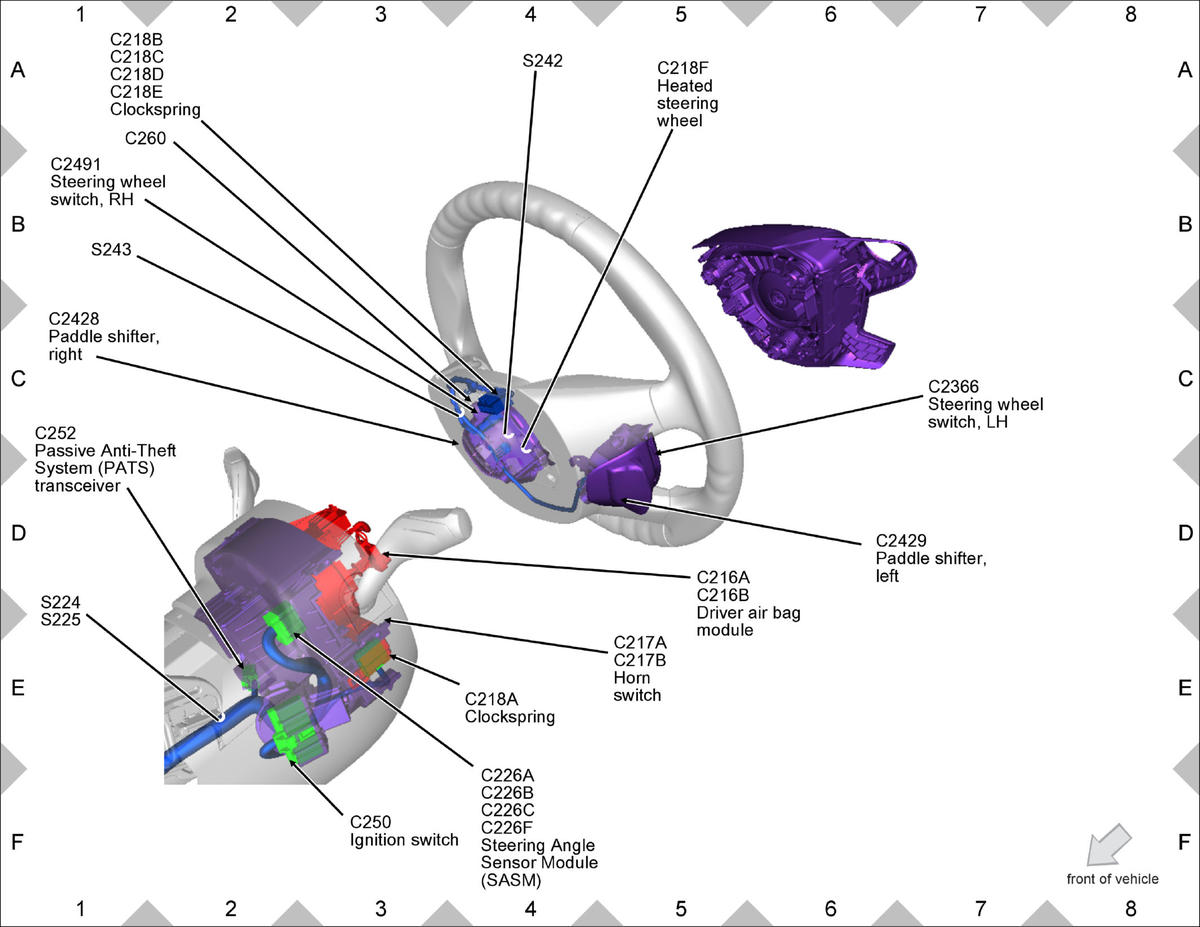

GFDW96723Courtesy of FORD MOTOR COMPANY

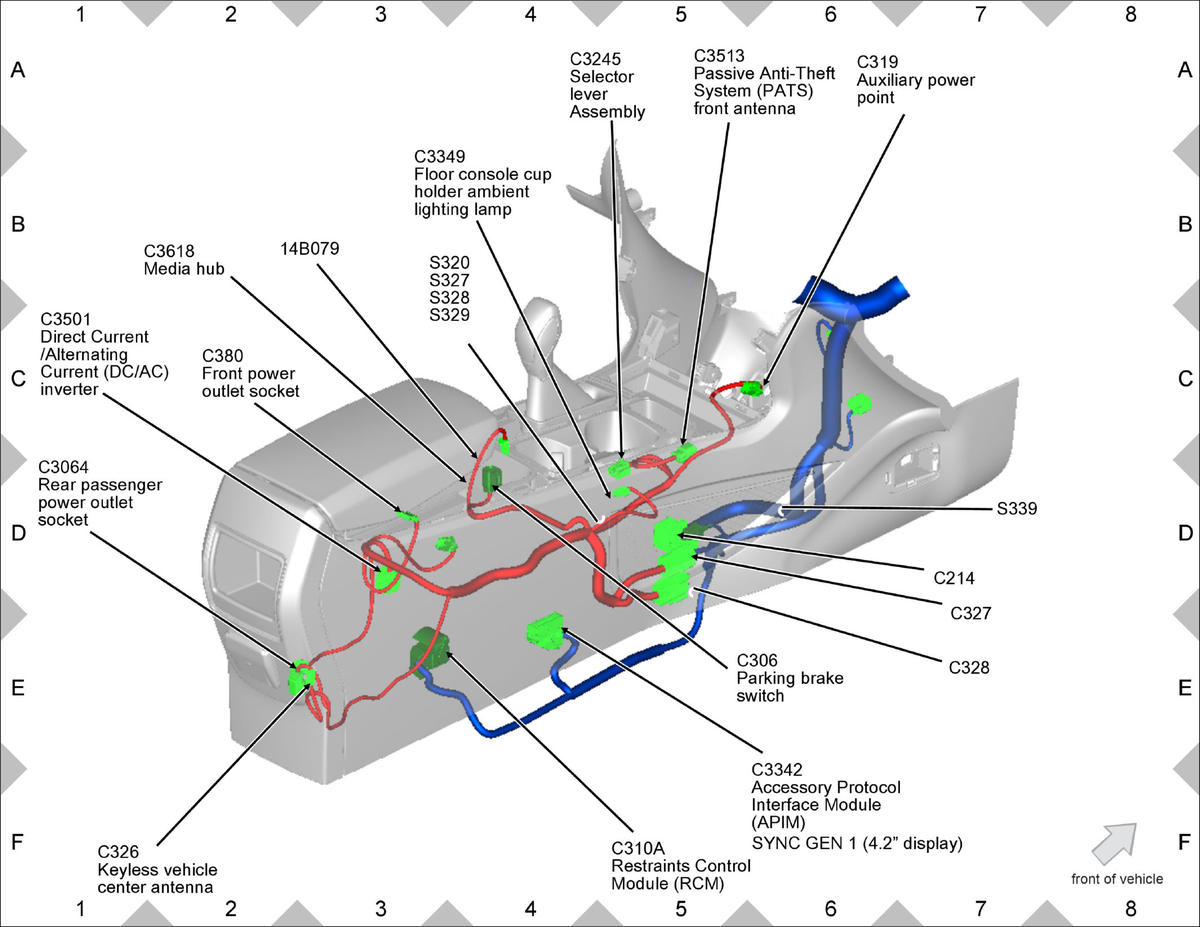

GFDW96724Courtesy of FORD MOTOR COMPANY

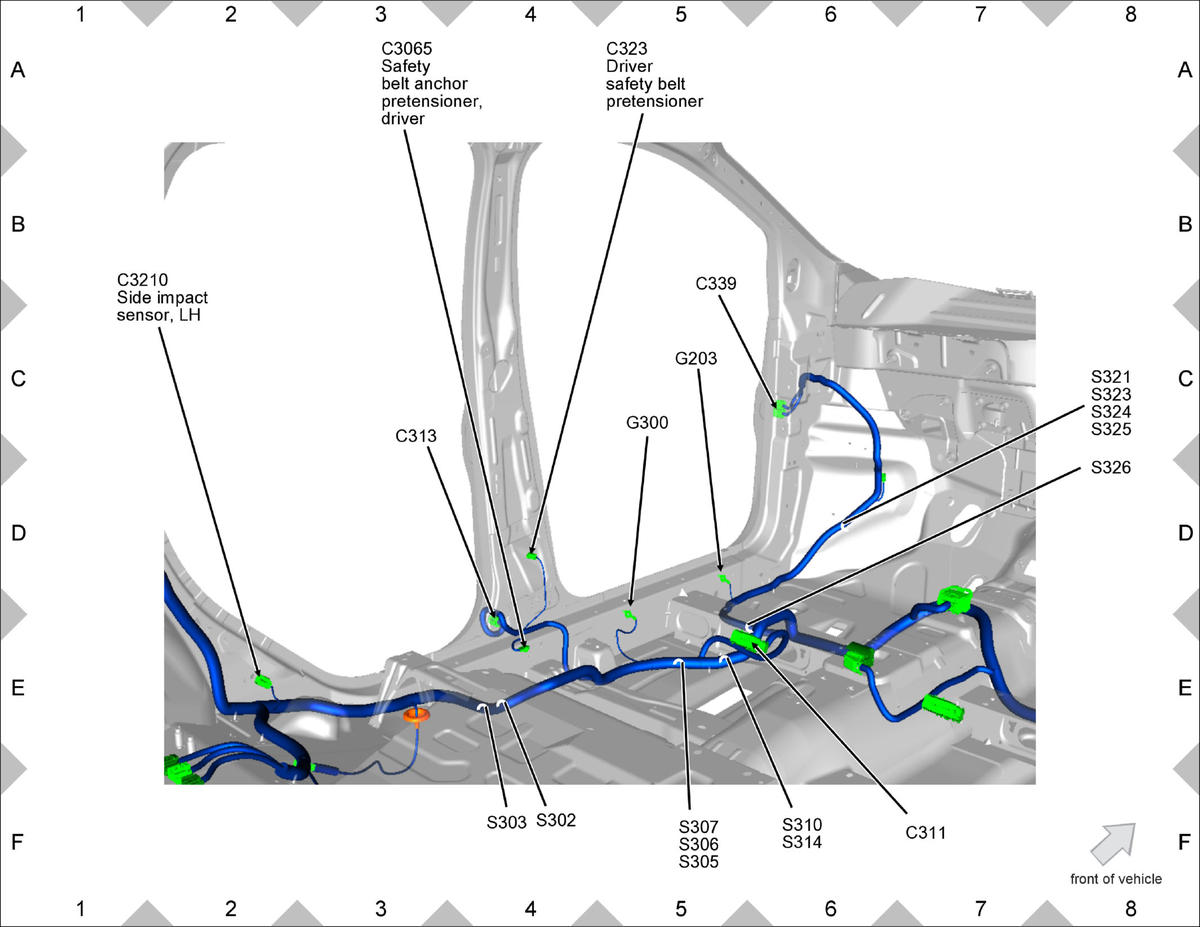

GFDW96725Courtesy of FORD MOTOR COMPANY

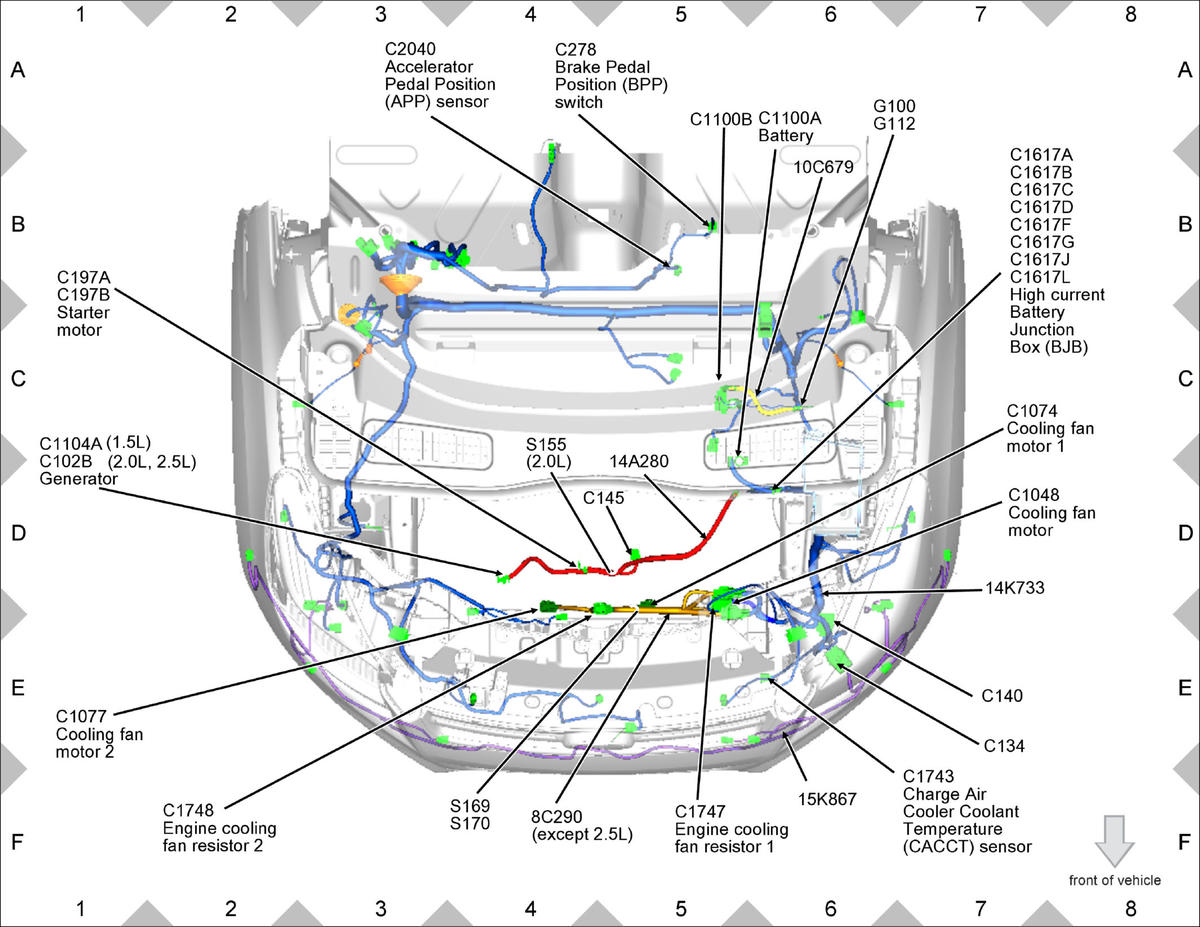

GFDW96726Courtesy of FORD MOTOR COMPANY

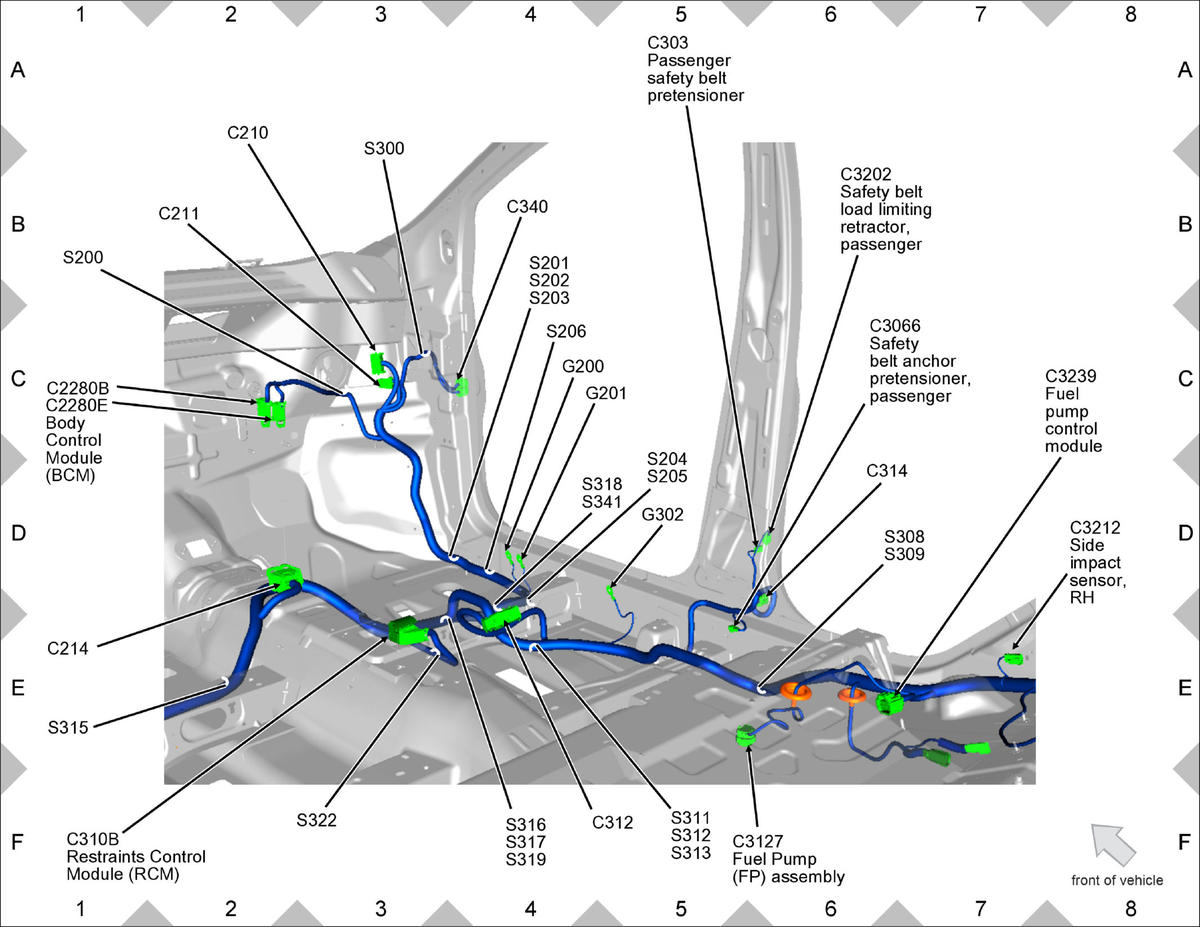

GFDW96727Courtesy of FORD MOTOR COMPANY

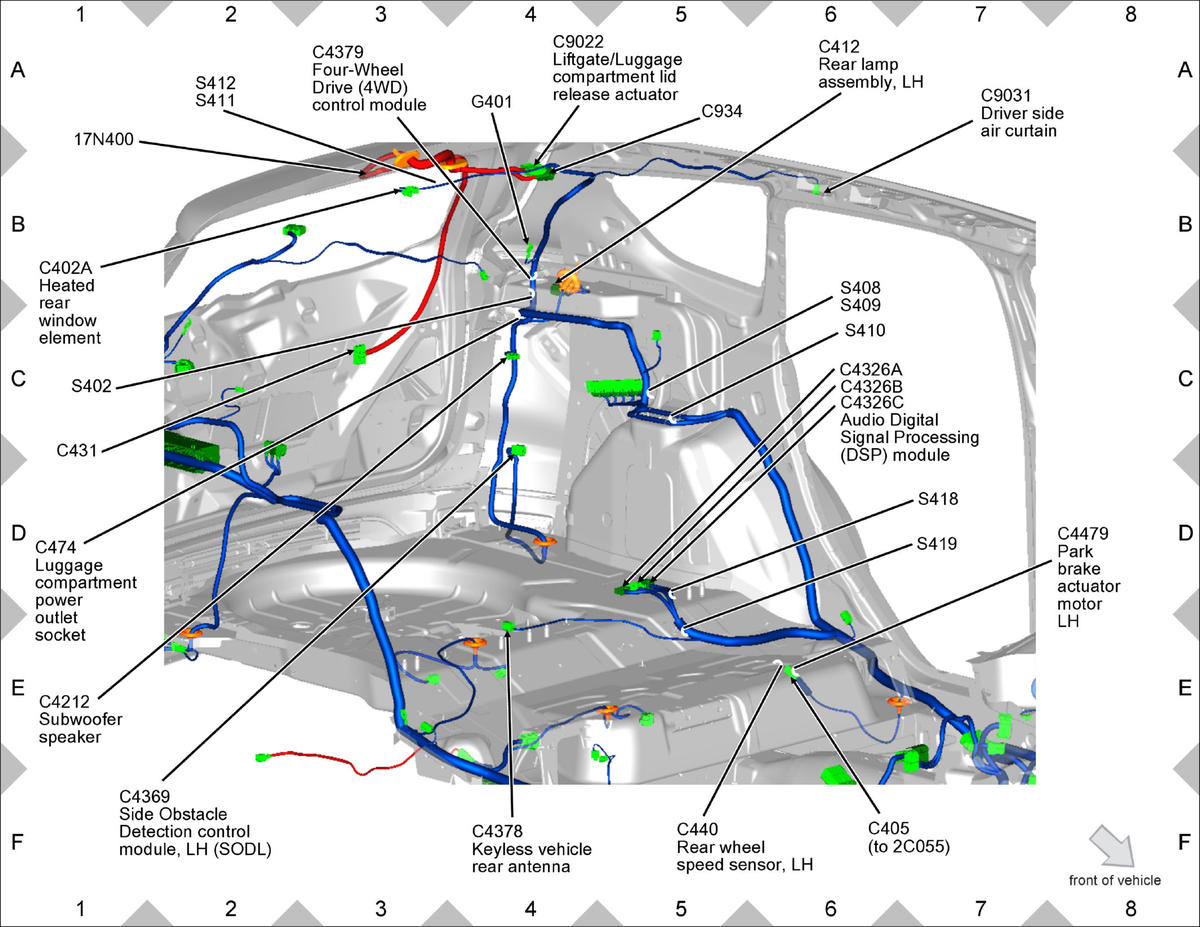

GFDW96728Courtesy of FORD MOTOR COMPANY

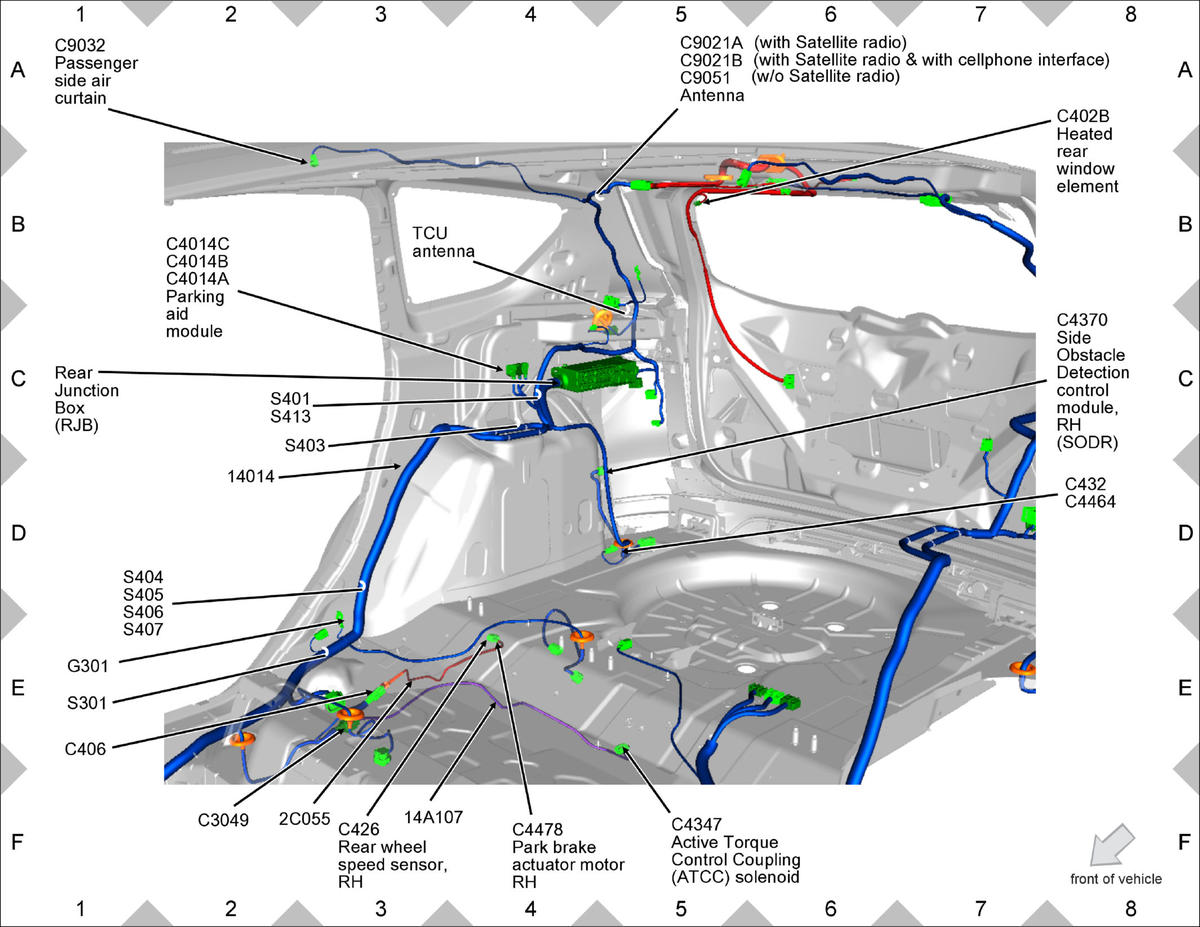

GFDW96729Courtesy of FORD MOTOR COMPANY

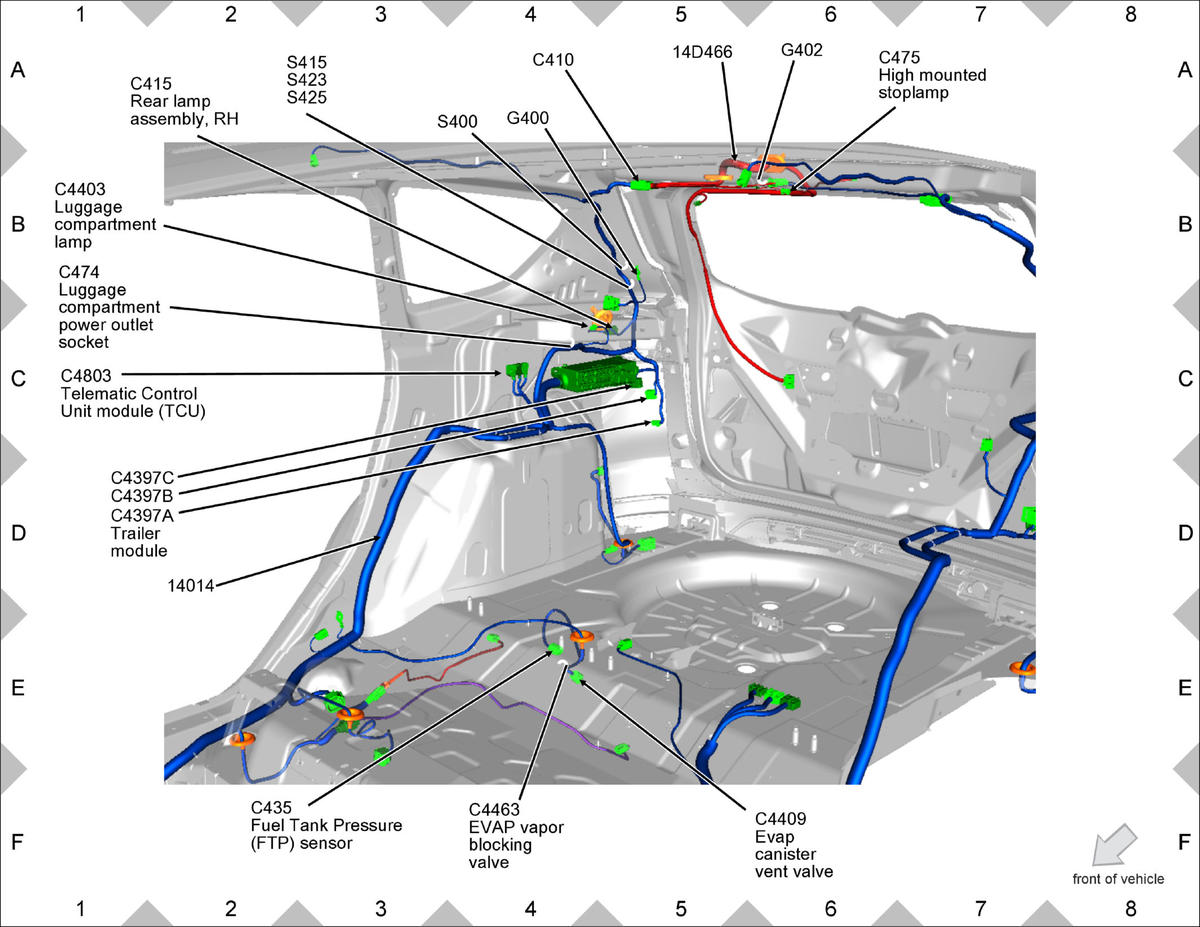

GFDW96730Courtesy of FORD MOTOR COMPANY

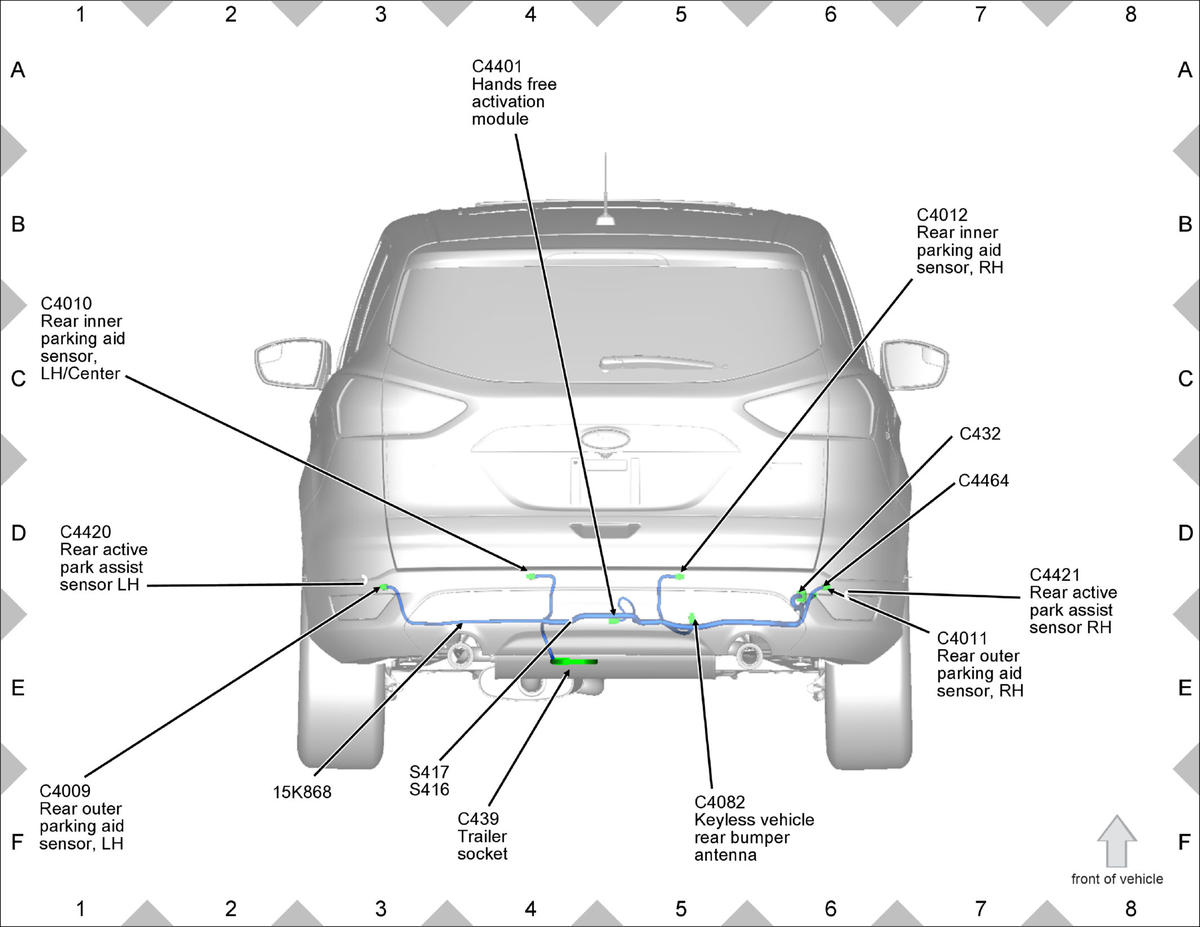

GFDW96731Courtesy of FORD MOTOR COMPANY

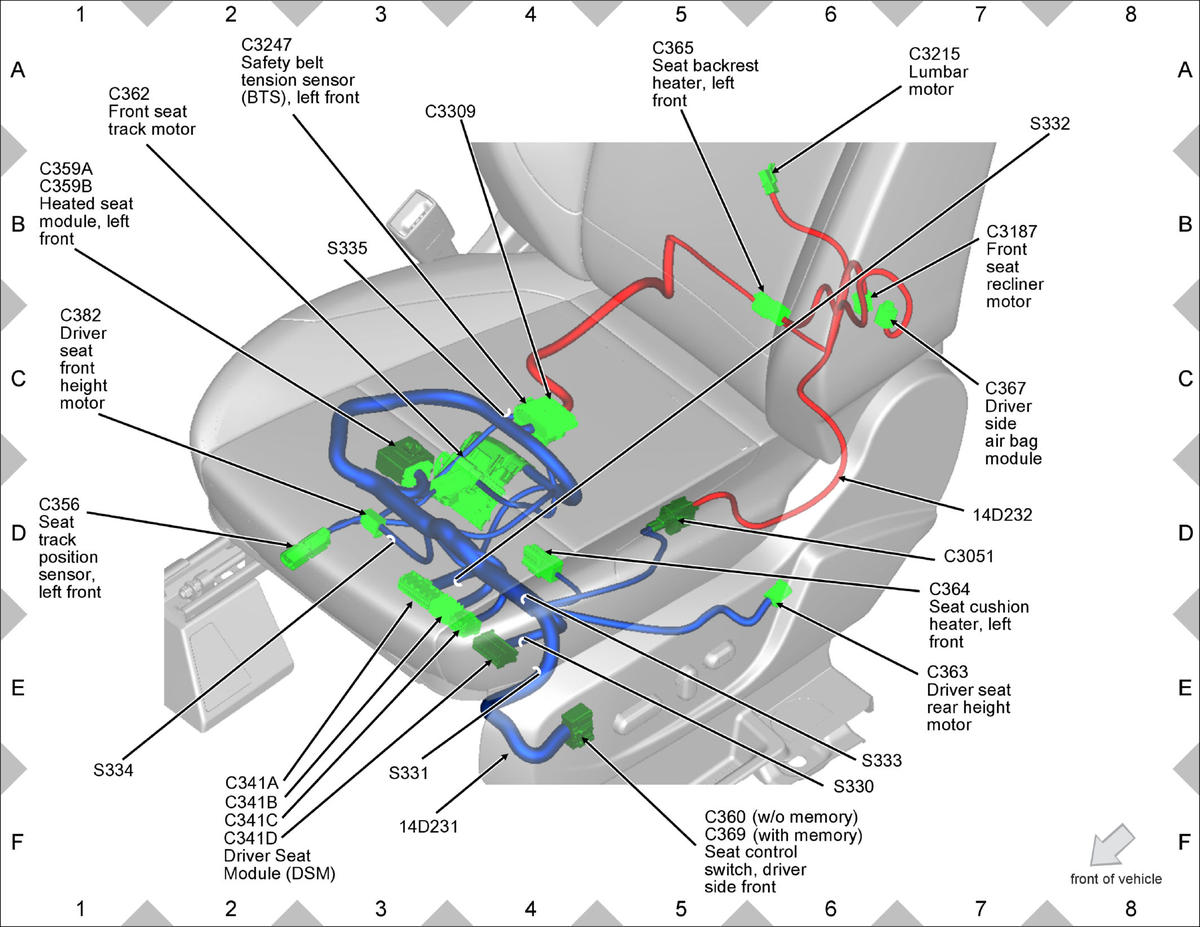

GFDW96732Courtesy of FORD MOTOR COMPANY

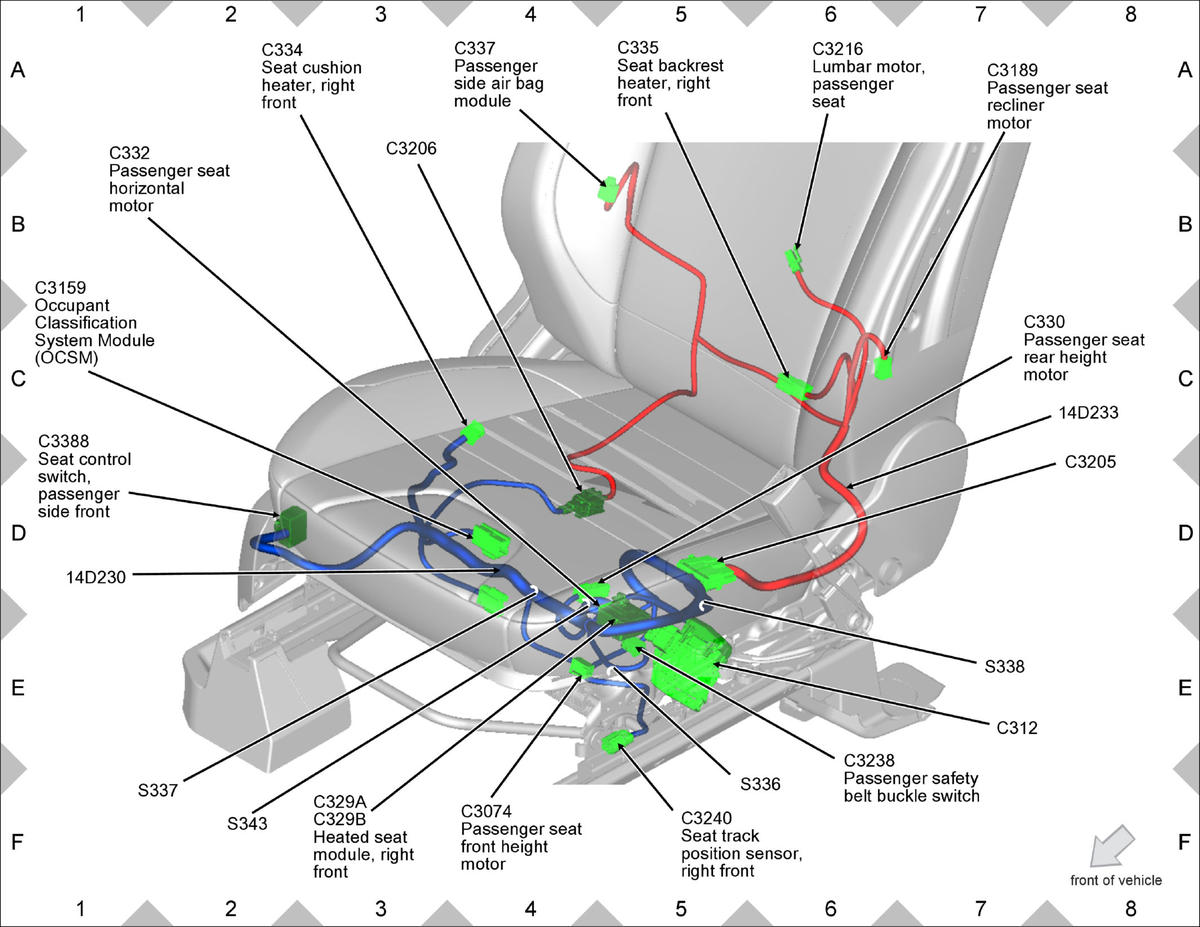

GFDW96733Courtesy of FORD MOTOR COMPANY

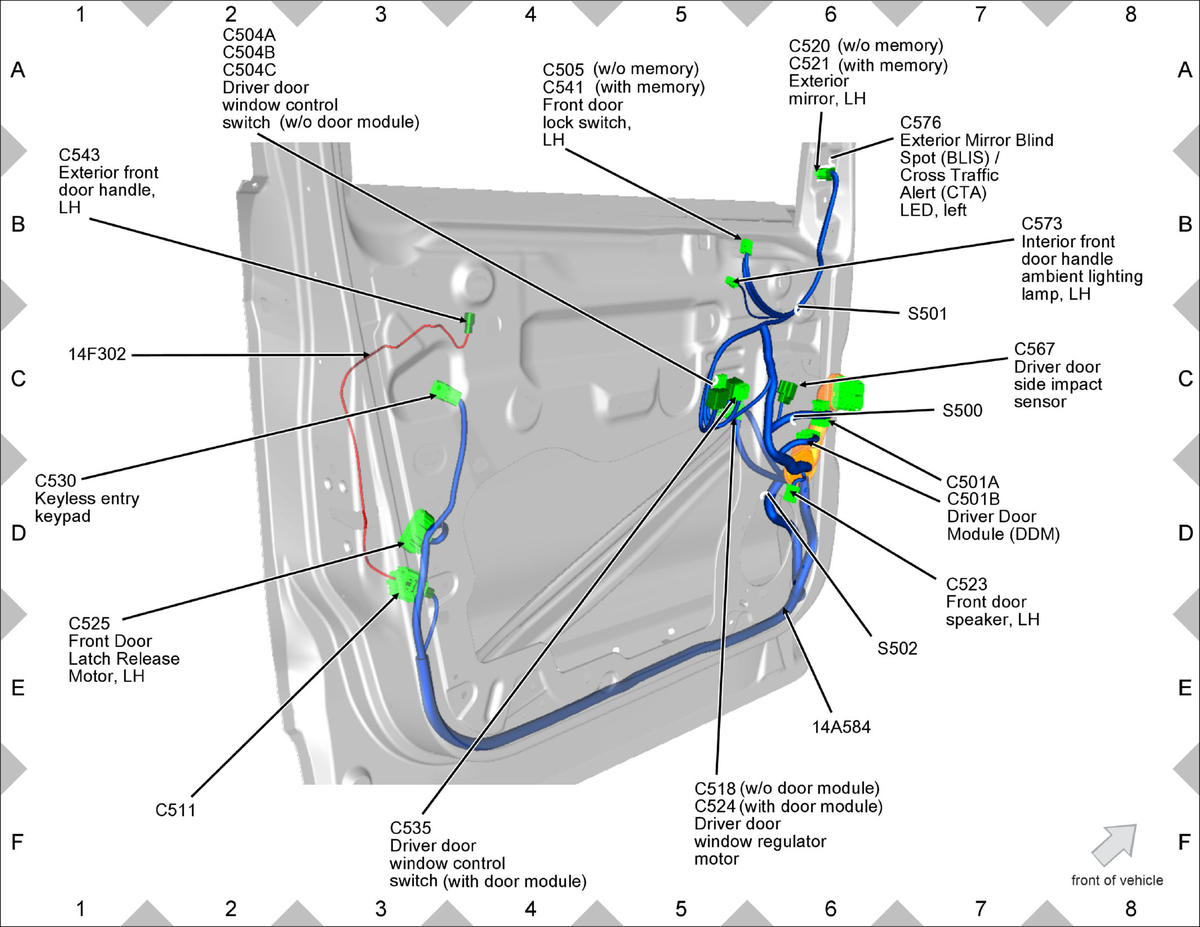

GFDW96734Courtesy of FORD MOTOR COMPANY

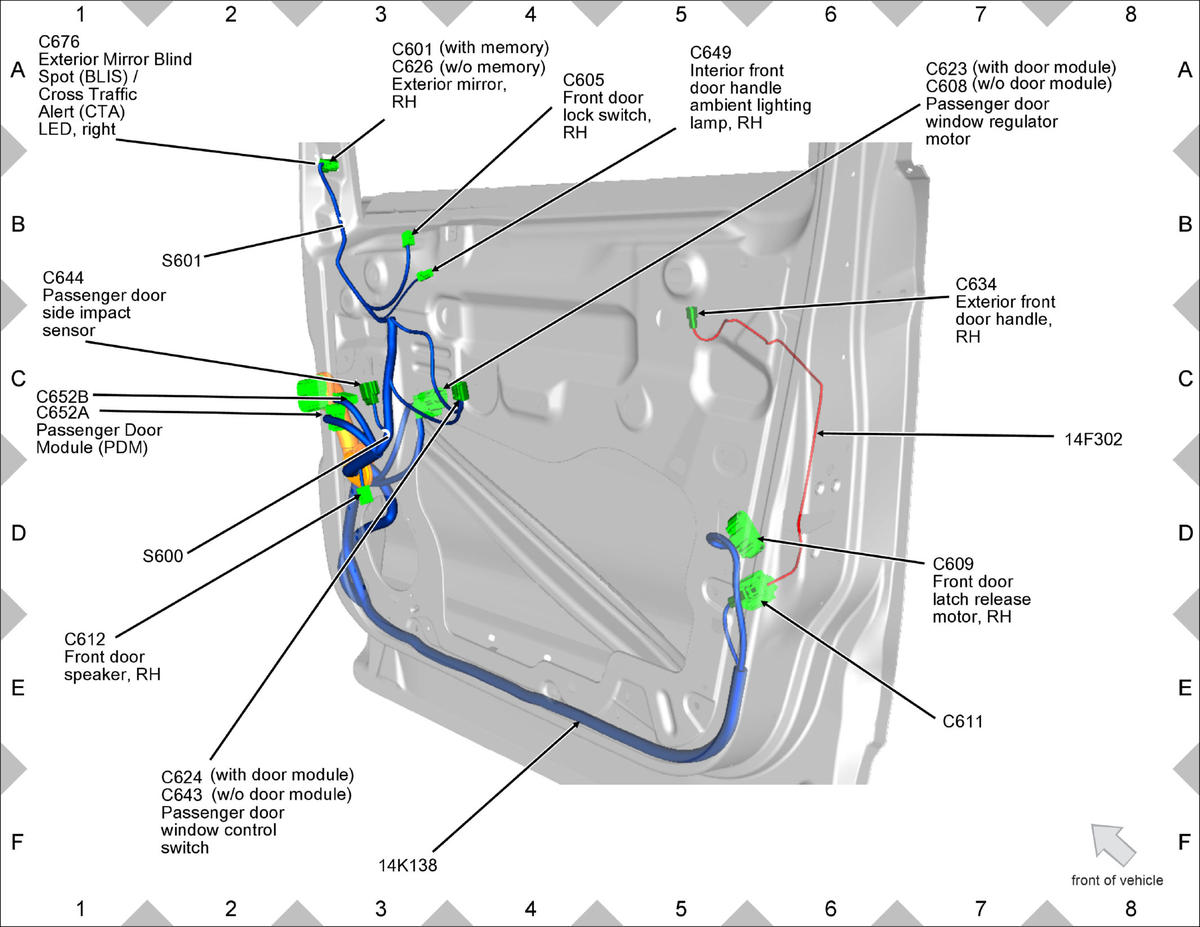

GFDW96735Courtesy of FORD MOTOR COMPANY

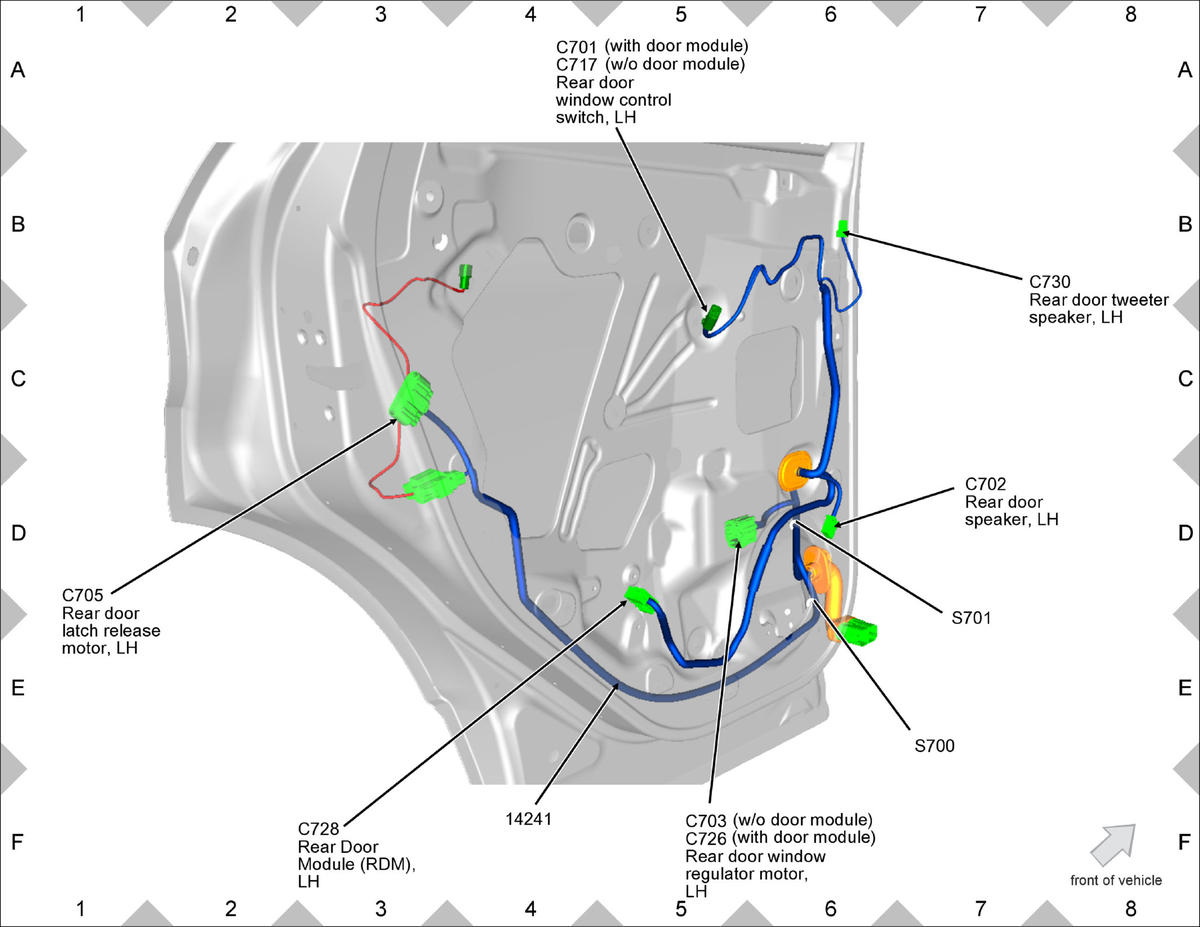

GFDW96736Courtesy of FORD MOTOR COMPANY

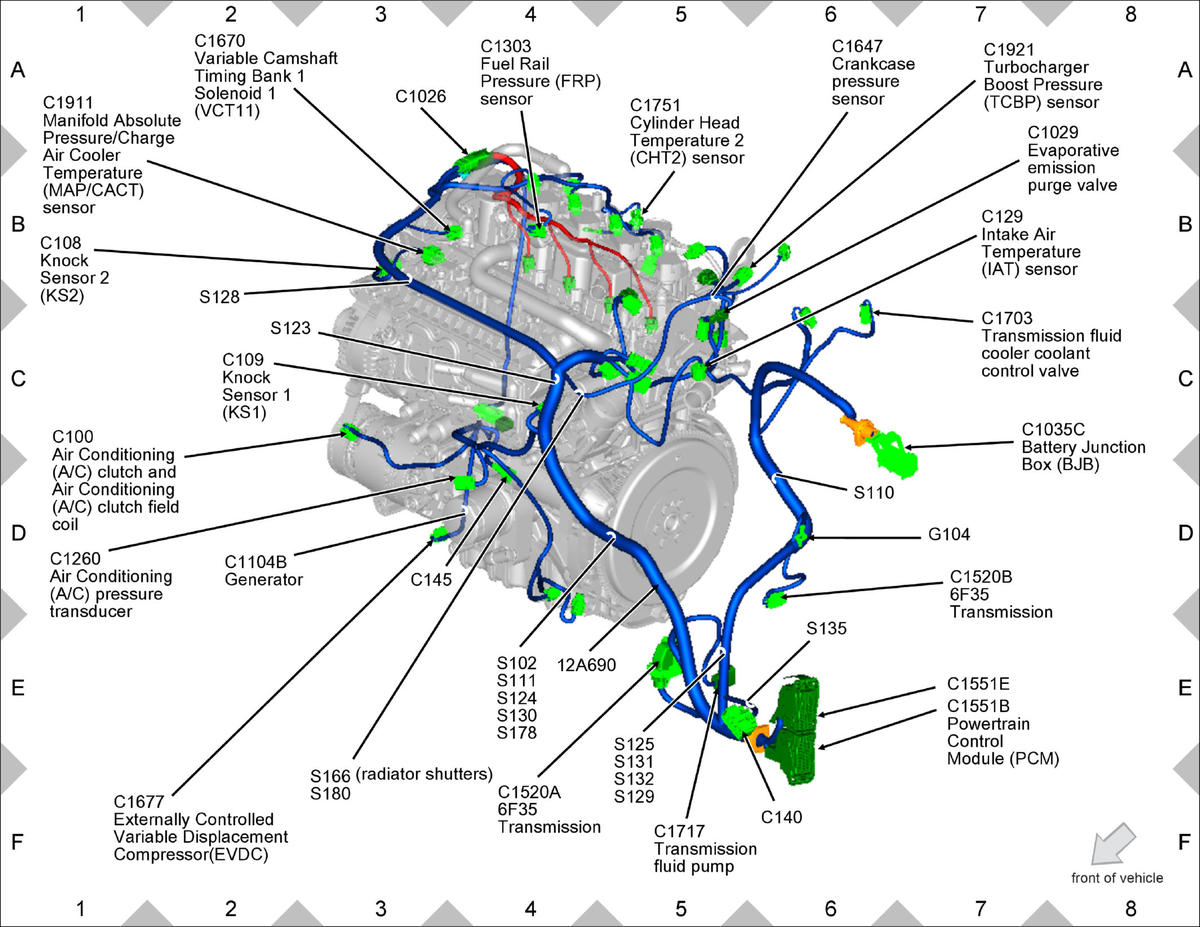

GFDW96737Courtesy of FORD MOTOR COMPANY

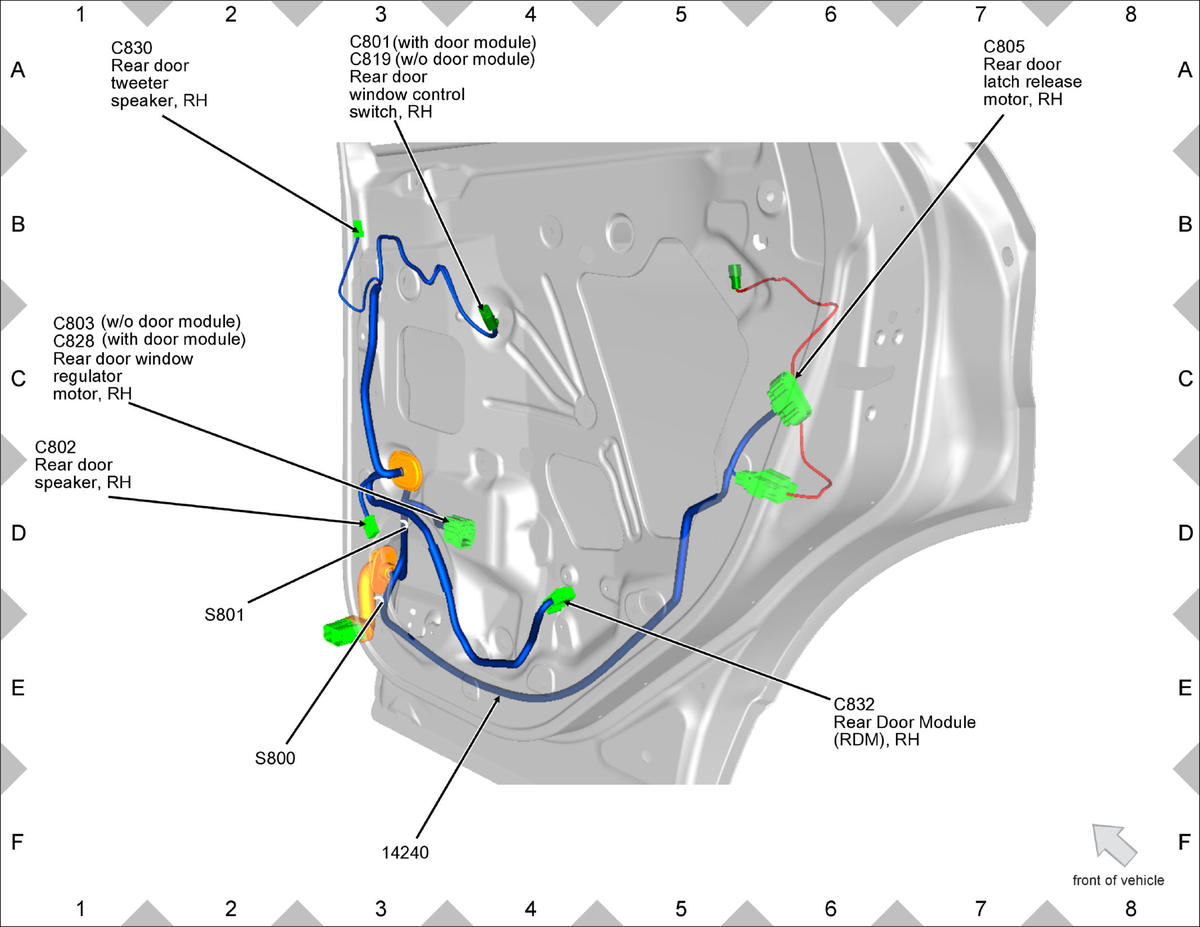

GFDW96738Courtesy of FORD MOTOR COMPANY

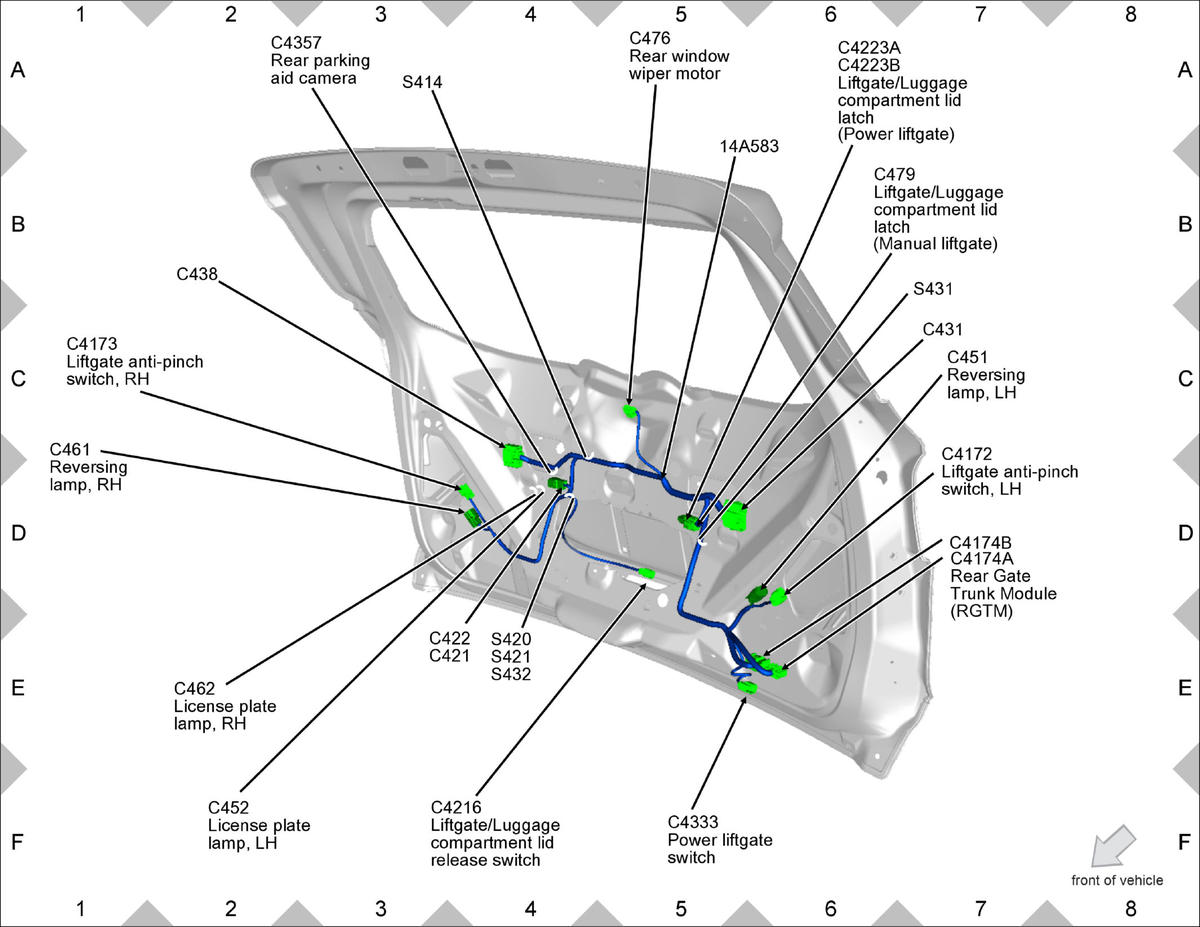

GFDW96739Courtesy of FORD MOTOR COMPANY

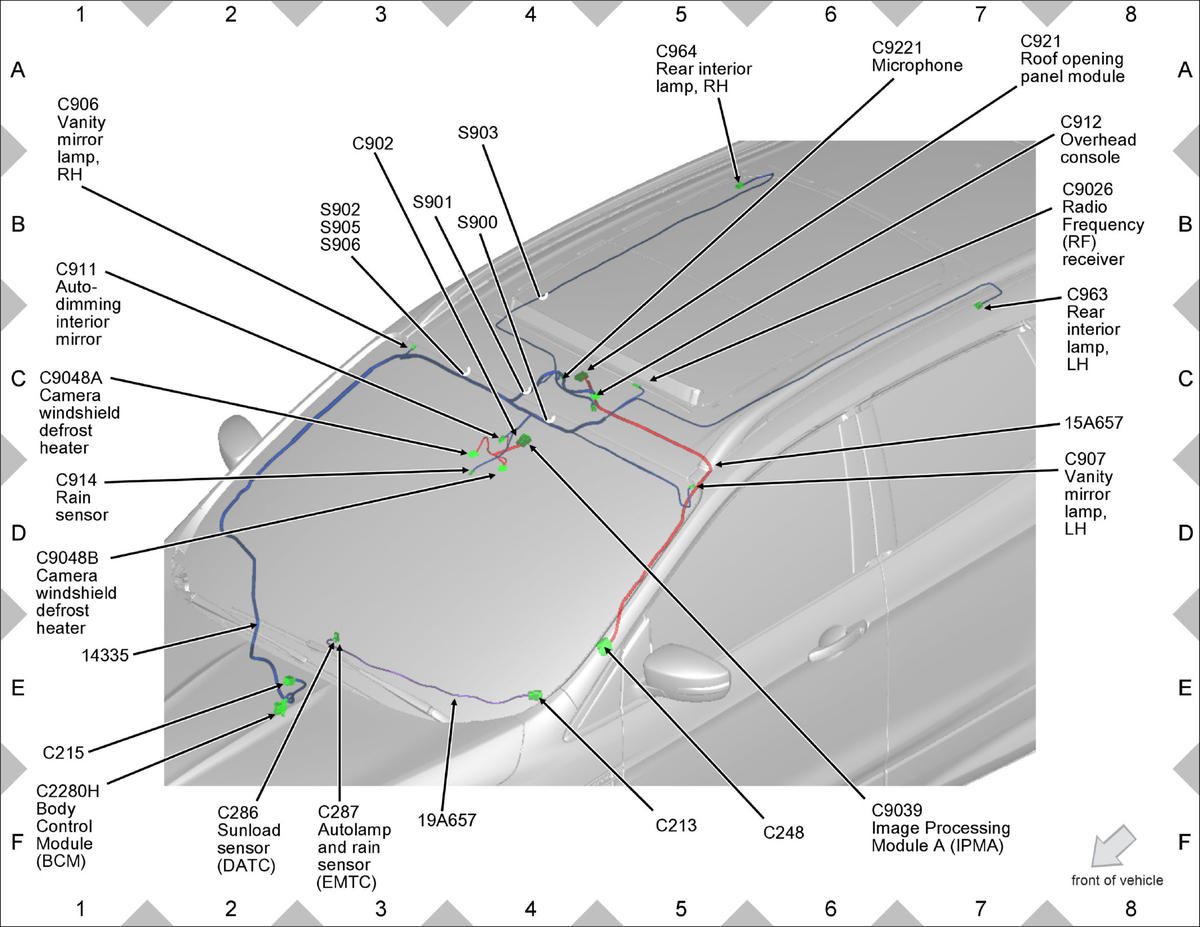

GFDW96740Courtesy of FORD MOTOR COMPANY

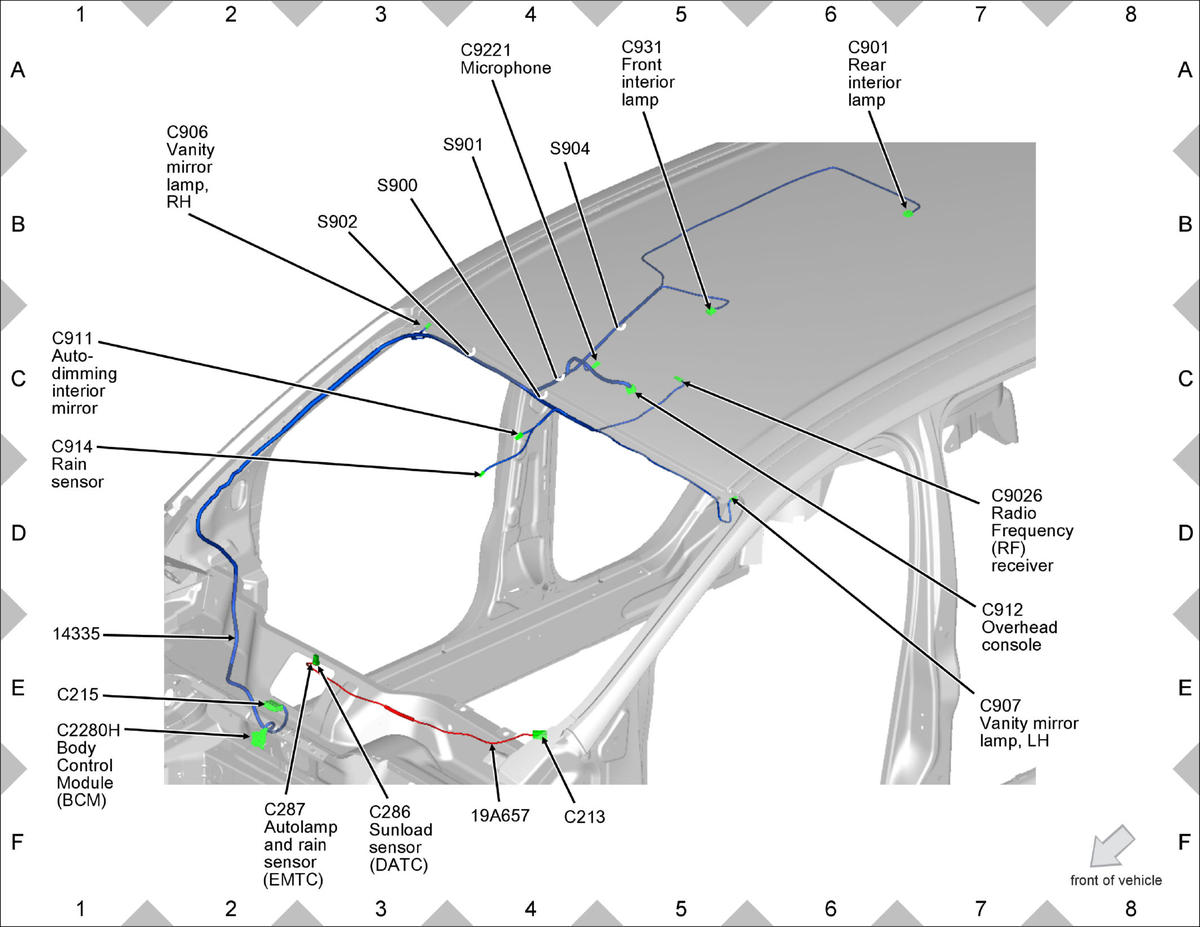

GFDW96741Courtesy of FORD MOTOR COMPANY

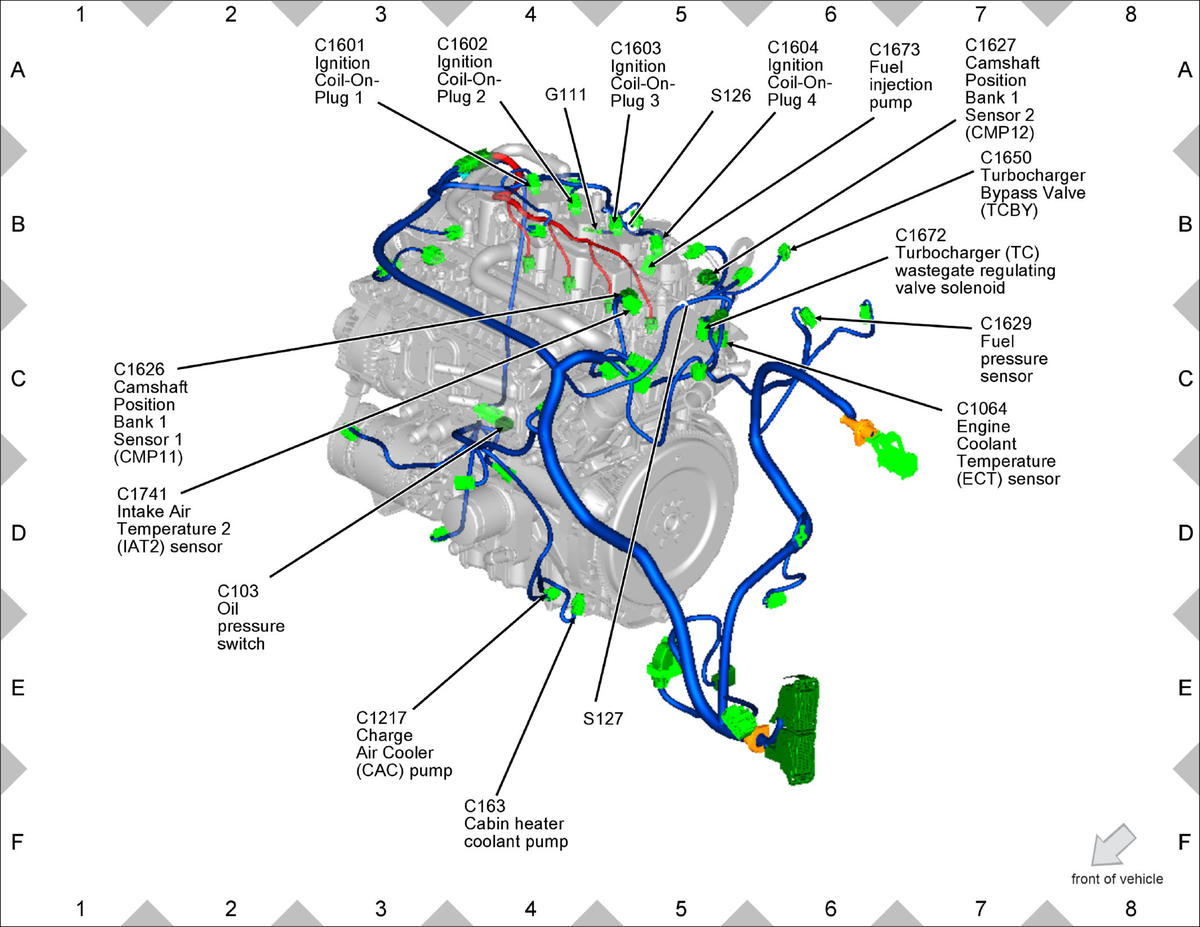

GFDW96742Courtesy of FORD MOTOR COMPANY

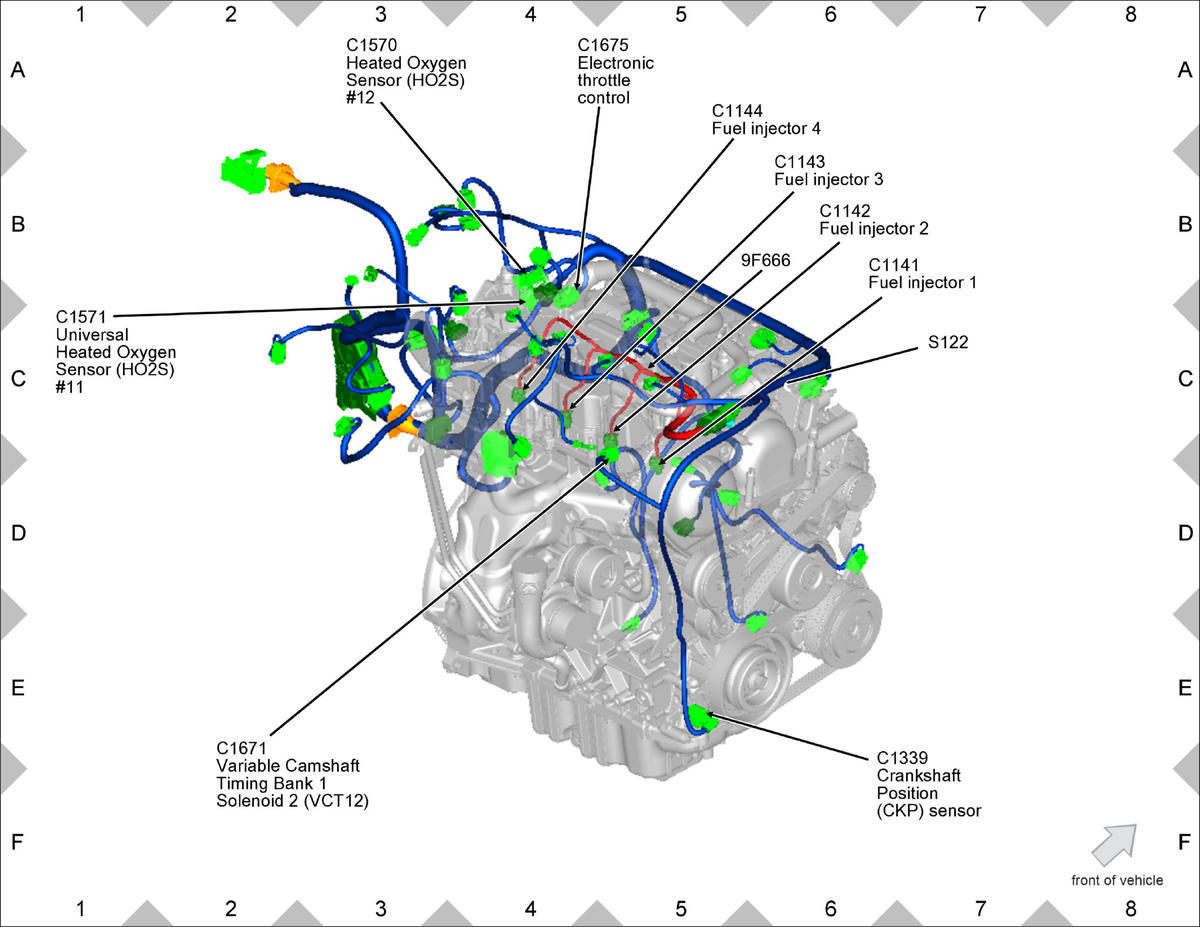

GFDW96743Courtesy of FORD MOTOR COMPANY

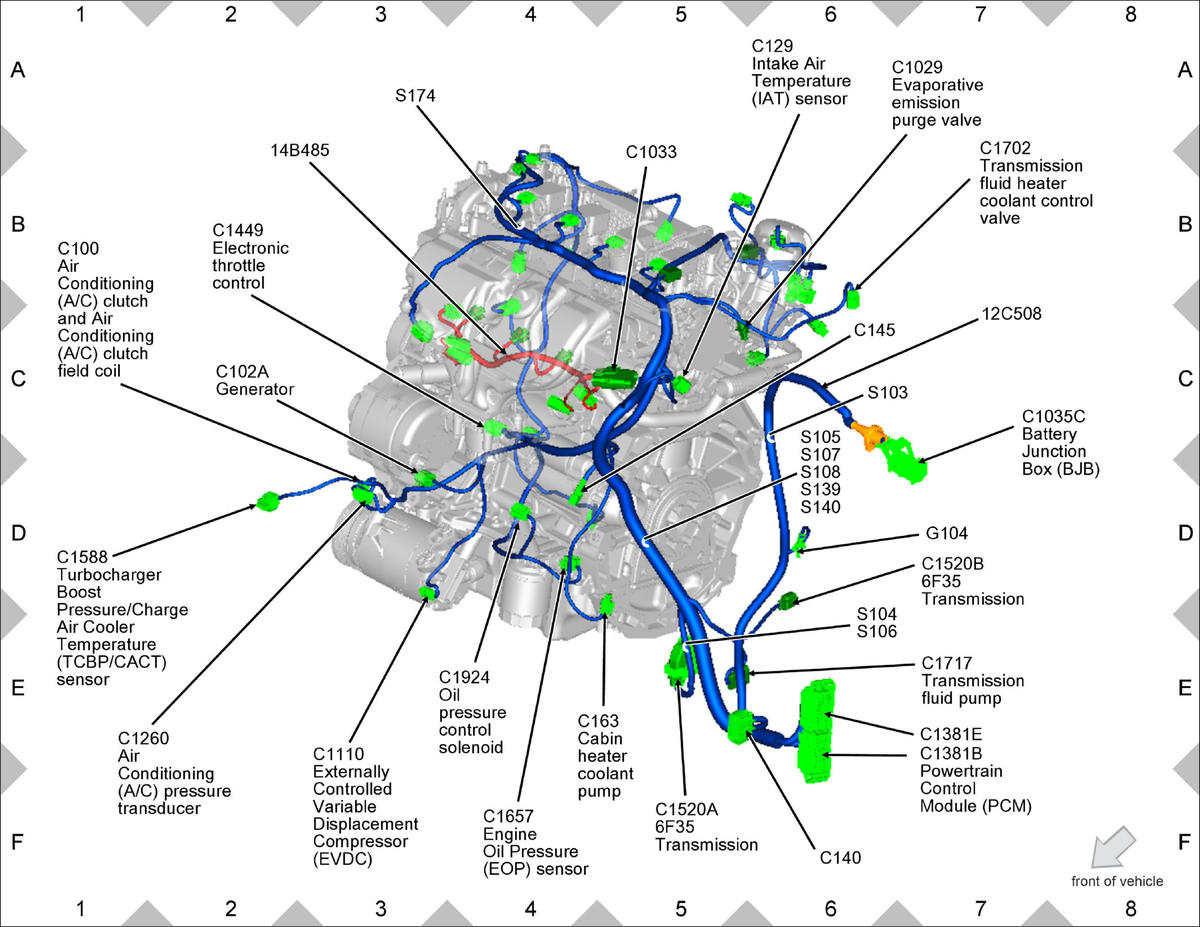

GFDW96744Courtesy of FORD MOTOR COMPANY

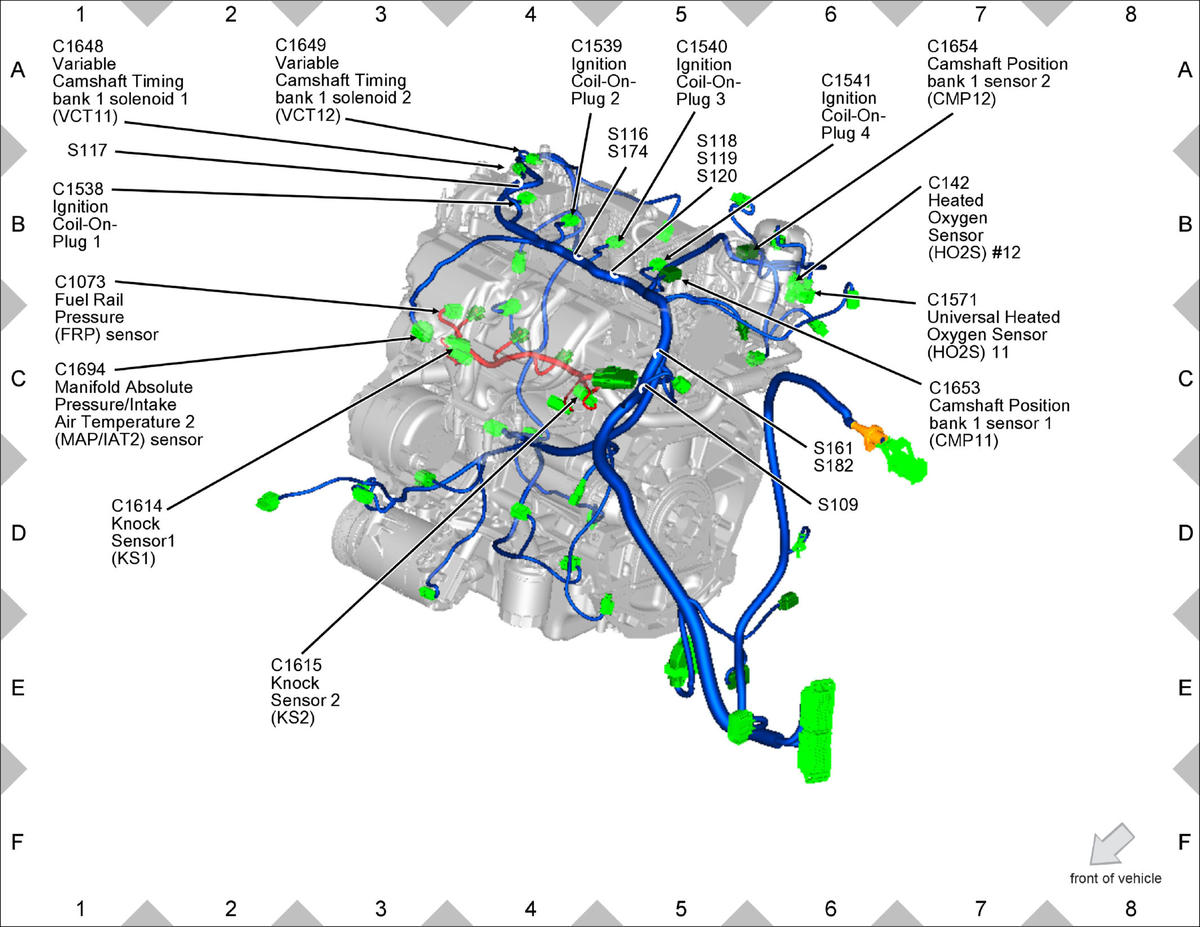

GFDW96745Courtesy of FORD MOTOR COMPANY

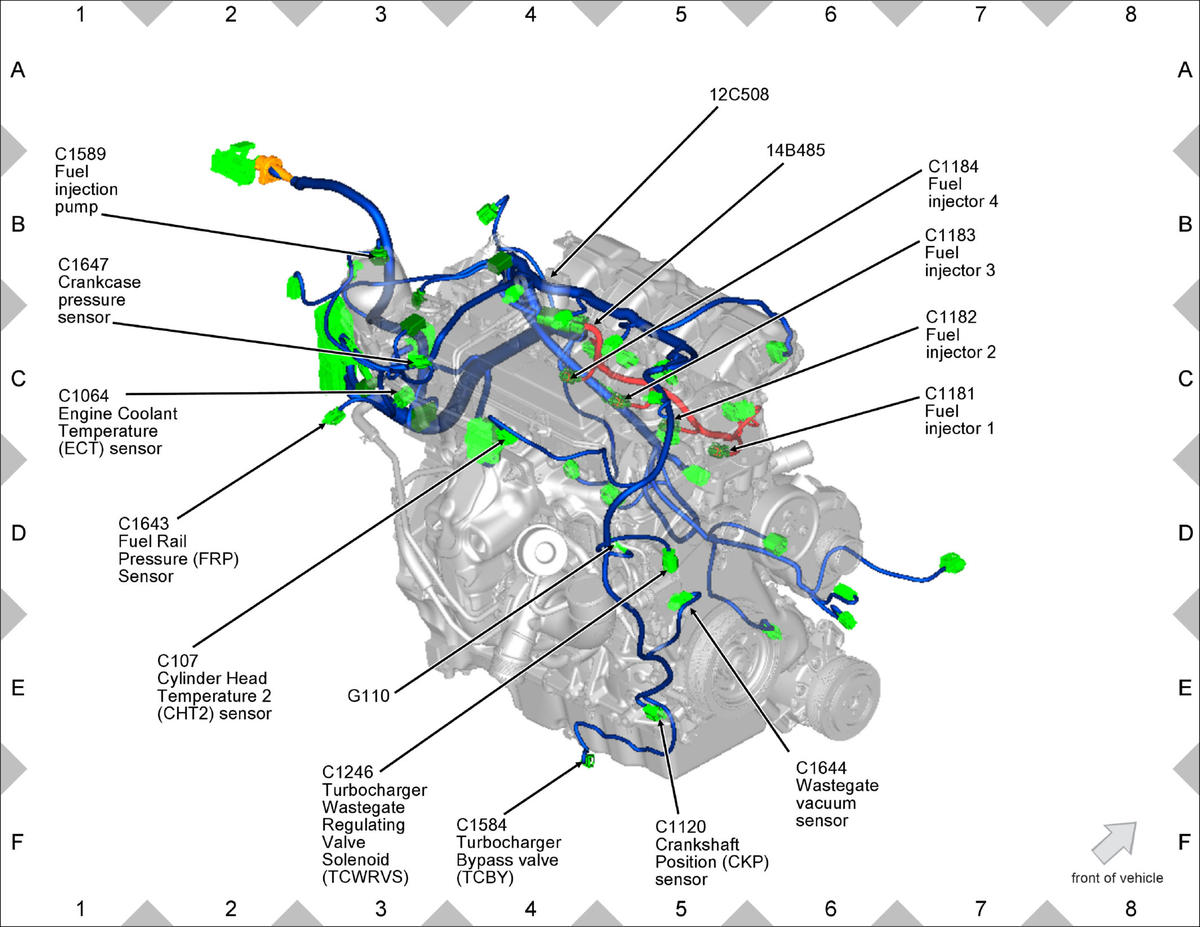

GFDW96746Courtesy of FORD MOTOR COMPANY

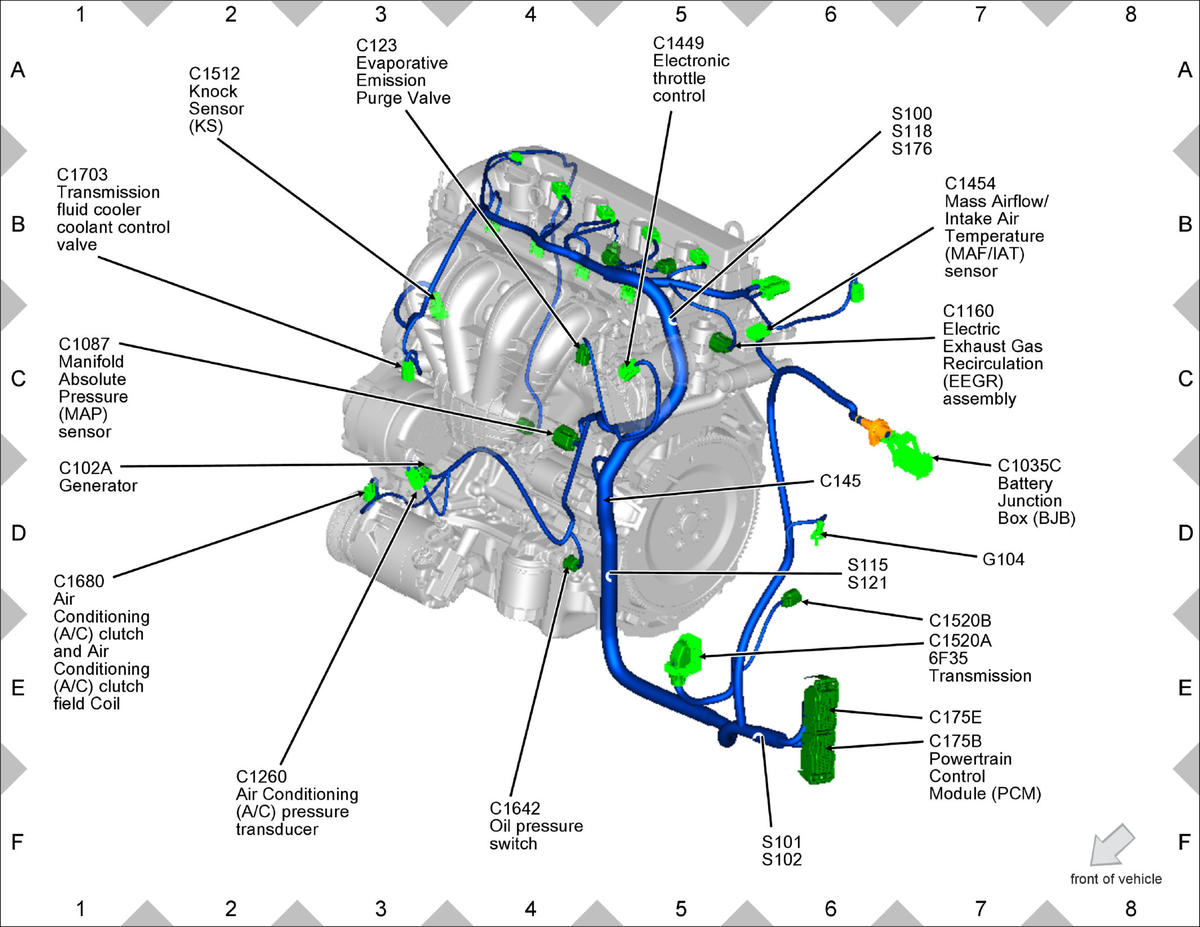

GFDW96747Courtesy of FORD MOTOR COMPANY
